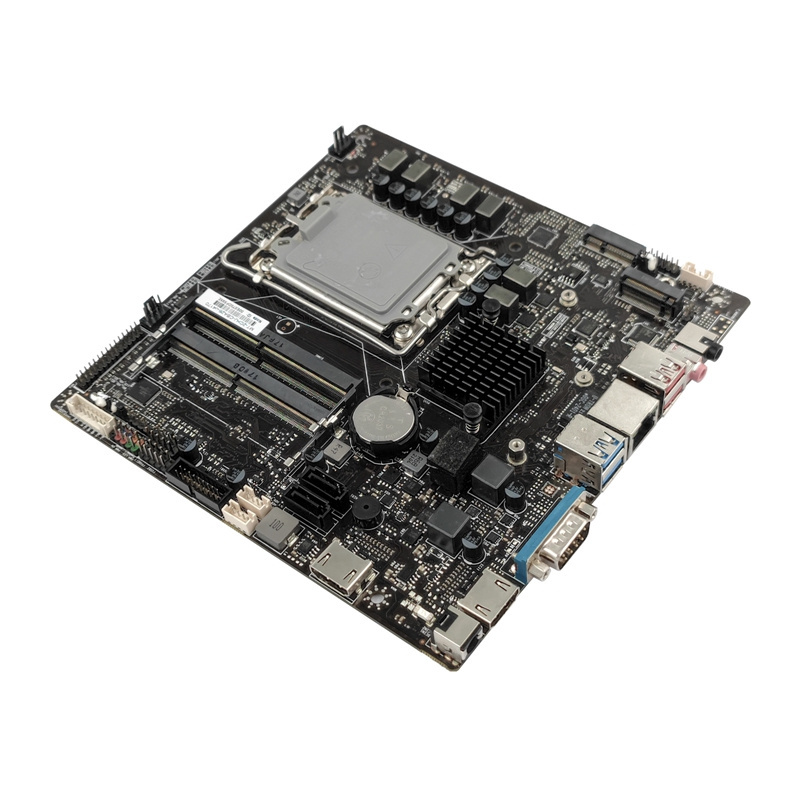

JWIPC H610I consumer 12th gen intel motherboard is designed based on Intel H610 chipset, supports Intel Core i7/Core i5/Core
i3/Pentium/Celeron series processors, dual-channel DDR4 memory and NVME storage, creating low-latency transmission. 2-way HDMI display output, providing customers with high-definition display experience.
- Product Details
- {{item.text}}
Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel H610&B660, Intel H610&B660
-
Brand Name:
-
JWIPC
-
Place of Origin:
-
Guangdong, China
-
Audio Chip:
-
Realtek ALC897 HD Audio Chip
-
Ethernet Chip:
-
Intel I219V Gigabit LAN Chip
-
CPU Model:
-
Intel Core i7/Core i5/Core i3/Pentium/Celeron
-
CPU Platform:
-
Intel LGA1700 12th Gen CPU TDP:65W
-
Memory Types:
-
DDR4 2666MHz/2933MHz Max:64G
-
Memory Channel:
-
2*DDR4 SO-DIMM
-
WiFi Slot:
-
1*M.2 2230 size(support WIFI/BT/CNVI)
-
SSD Slot:
-
1*M.2 2280 size(support SATA/NVME Co-Lay)
-
USB Interface:
-
4XUSB3.0 Port
Quick Details
-
Maximum Ram Capacity:
-
64 GB
-
Application:
-
Desktop
-
Form Factor:
-
THIN MINI ITX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel H610&B660, Intel H610&B660
-
Brand Name:
-
JWIPC
-
Place of Origin:
-
Guangdong, China
-
Audio Chip:
-
Realtek ALC897 HD Audio Chip
-
Ethernet Chip:
-
Intel I219V Gigabit LAN Chip
-
CPU Model:
-
Intel Core i7/Core i5/Core i3/Pentium/Celeron
-
CPU Platform:
-
Intel LGA1700 12th Gen CPU TDP:65W
-
Memory Types:
-
DDR4 2666MHz/2933MHz Max:64G
-
Memory Channel:
-
2*DDR4 SO-DIMM
-
WiFi Slot:
-
1*M.2 2230 size(support WIFI/BT/CNVI)
-
SSD Slot:
-
1*M.2 2280 size(support SATA/NVME Co-Lay)
-
USB Interface:
-
4XUSB3.0 Port
ODM/OEM
We can support OEM/ODM service, and Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
We also have Micro-ATX motherboard , Mini ITX motherboard, ATX motherboard, b550 , H510, x570, b450, H61,z590, intel, AMD, Also support OEM custom motherboard，if you want to know more information,latest price or Shipping fee,please fee
l free Click
here to contact us,we will give you the best price.
Products Description
CORE Motherboard H610I
|
Motherboard Chipset
|
|
|
|
Chipset
|
Intel H610&B660
|
|
|
Audio Chip
|
Realtek ALC897 HD Audio Chip
|
|
|
Ethernet Chip
|
Intel I219V Gigabit LAN Chip
|
|
|
Processor spec
|
|
|
|
CPU Model
|
Intel Core i7/Core i5/Core i3/Pentium/Celeron
|
|
|
CPU Platform
|
Intel LGA1700 12th Gen CPU TDP:65W
|
|
|
Memory Specifications
|
|
|
|
Memory Types
|
DDR4 2666MHz/2933MHz Max:64G
|
|
|
Memory Channel
|
2×DDR4 SO-DIMM
|
|
|
Expansion slot
|
|
|
|
WiFi Slot
|
1×M.2 2230 size（support WIFI/BT/CNVI）
|
|
|
SSD Slot
|
1×M.2 2280 size（support SATA/NVME Co-Lay）
|
|
|
I/O Interface
|
|
|
|
Input Interface
|
1×DC-In Power Interface(12-19V)
|
|
|
Display Interface
|
1×HDMI Port、1×HDMI Port（other side）
|
|
|
Interface (Optional)
|
1×COM Port（An optional for VGA）
|
|
|
Ethernet Interface
|
1×RJ45 Port
|
|
|
USB Interface
|
4×USB3.0 Port
|
|
|
Audio Interface
|
1×OUT Port、1×MIC Port
|
|
|
Pin Header Specification
|
|
|
|
LVDS Functionality
|
1×LVDS 30PIN Header、1×LCD_VOL_SELA Jumper for the voltage of LVDS Panel(5V/12V)
1×4PIN MON_SW Header、1×LVDS_OFF Jumper |
|
|
Backlight Functionality
|
1×8PIN INVERTER Interface(Backlight+/-)、1×BKL_VOLA Jumper for the voltage of backlight(12V/19V)
|
|
|
SATA Interface
|
2×SATA3.0 Interface、2×SATA Power Interface
|
|
|
USB Interface
|
H610:2×Dual Row USB2.0 Pin Header
B660:2×Dual Row USB2.0 Pin Header、1×Dual Row USB3.0 Pin Header |
|
|
Audio Header
|
1×AUDIO Header、1×SPEAK Header
|
|
|
Fan Pin Header
|
1×4PIN CPU Fan、1×4PIN SYS Fan
|
|
|
Onboard Pin Header
|
1×FPANEL Pins Header Of Panel、1×Case Open(Optional)
|
|
|
BIOS Functionality
|
1×BIOS_WP Jumper、1×JBAT Pin Header、1×JBIOS Flash Pin Header
|
|
|
Other Parameter
|
|
|
|
Dimension
|
Thin Mini-ITX 170mm×170mm×6L
|
|
|
BIOS Features
|
128M flash ROM，AMI UEFI BIOS，PC Health，WOL
|
|
|
Motherboard Accessories
|
|
|
|
Packing List
|
Motherboard×1 （Box：20PCS）
|
|
Recommend Products
CORE Motherbaord H610I installed Intel H610 processor. Realtek ALC897 for Audio and Intel i219V for Network. CPU model is Intel Core i7/Core i5/Core i3/Pentium/Celeron and Intel LGA1700 12th CPU TDP: 65W CPU platform. DDR4 2666MHz/2933MHz/3200Mhz Max: 64G memory, 2×DDR4 SO-DIMM memory slot. 1×M.2 2230 (Support WIFI/BT/CNVI) and 1×M.2 2280 (Support SATA/NVME SSD). I/O: 2×USB3.2 Gen2 interface and 2×USB3.2 Gen1 interface, 1×DC Power input (12-19V), 1×HDMI, 1×VGA, 1×RJ45, 1×OUT, 1×MIC. Plug-in of consumer motherboard: 1×LVDS 30 PIN, ×LCD_VOL_SEL Display Voltage Jump Cap (5V/12V), 1×4PIN MON_SW, 1×LVDS_OFF Jump Cap, 1×8 PIN Inverter
(Backlight +/-), 1×BKL_VOL Backlight Voltage Jump Cap (12V/19V), 2×SATA3.0, 2×SATA Power, H610: 2 × double USB2.0 pins, 1×Audio, 1×Speak, 1× 4 PIN CPU Fan, 1×4 PIN SYS Fan, 1×FPANEL, 1×BIOS_WP Jump Cap, 1×JBAT. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL
(Backlight +/-), 1×BKL_VOL Backlight Voltage Jump Cap (12V/19V), 2×SATA3.0, 2×SATA Power, H610: 2 × double USB2.0 pins, 1×Audio, 1×Speak, 1× 4 PIN CPU Fan, 1×4 PIN SYS Fan, 1×FPANEL, 1×BIOS_WP Jump Cap, 1×JBAT. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL
