Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Electrical system:
-
Schneider brand
-
Weight overload protection function:
-
Included
-
Product name:
-
Box girder 1.5ton overhead crane gantry crane
-
controlling method:
-
ground/room controlling
-
Main electricals:
-
Siemens/Schneider
-
Traveling Limit switch:
-
for protection
-
Voltage loss protection device:
-
provide
-
Lifting mechanism:
-
Electric chain hoist or electric wire rope hoist
-
Emergency stop system:
-
including
-
working class:
-
A3
-
Certification:
-
ISO,TUV
Quick Details
-
Rated Loading Capacity:
-
100t
-
Max. Lifting Height:
-
90m
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Electrical system:
-
Schneider brand
-
Weight overload protection function:
-
Included
-
Product name:
-
Box girder 1.5ton overhead crane gantry crane
-
controlling method:
-
ground/room controlling
-
Main electricals:
-
Siemens/Schneider
-
Traveling Limit switch:
-
for protection
-
Voltage loss protection device:
-
provide
-
Lifting mechanism:
-
Electric chain hoist or electric wire rope hoist
-
Emergency stop system:
-
including
-
working class:
-
A3
-
Certification:
-
ISO,TUV
Product basic information
Model: MH
Lifting capacity: 1t-20t
Working class: ISO A3
Control method: Cabinet control, remote control and pendent with cable control
Ambient temperature:-20-40℃ indoor or outdoor
Control method: Cabinet control, remote control and pendent with cable control
Main mechanical parts: main beam, supporting legs, bottom beam with wheel.
Electrical parts: Long traveling engines, lifting engines, cross traveling engines, electric control box, limit switches, overload limiter.
Product Usage:
Single Girder Gantry Crane is the ground rail mounted gantry crane and widely used in the open yard and warehouse inside for the material loading/unloading
Product Advantages:
MH model Single Girder Gantry Crane is equipped with China top brand engines, traditional design, mature technology, fast delivery, easy maintenance, simple structure, economic cost make it the best seller among all cranes.

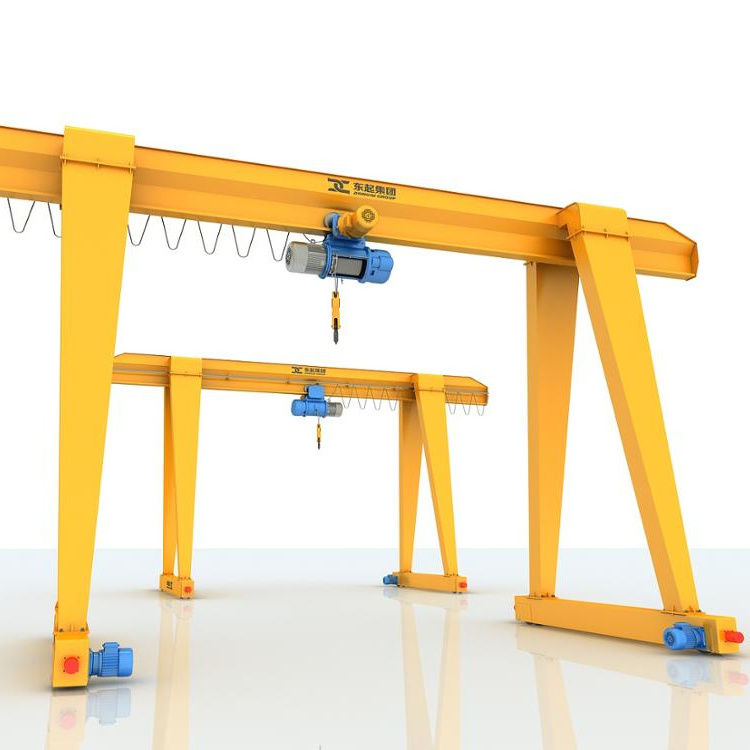

Product General Images
Country: Saudi Arabia
Application: Power Plant
Product details:
Gantry crane 5t-20.7m+2m, H=12m
Gantry crane 5t-30m+2m, H=14m
Clients feedbacks after visit our factory:
Parameters of Single Girder Gantry Crane (5tons)
|
gantry crane Span |
S(m) |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
|
Working class |
|
A3 |
|||||
|
Lifting height |
M |
6,9,12 |
|||||
|
Lifting speed |
m/min |
8 |
|||||
|
Trolley weight |
Kg |
500 |
|||||
|
gantry crane Total weight |
Kg |
2200 |
2521 |
3200 |
3928 |
4598 |
6230 |
|
Max wheel load |
Kn |
28.2 |
29.7 |
31.8 |
33.8 |
35.6 |
39.7 |
|
Track |
|
P24 |
|||||
|
Rail top to main top |
H |
788 |
788 |
908 |
978 |
1138 |
1258 |
|
Rail top to hook center |
H |
410 |
|||||
|
Hook left limitation |
C 1 |
665 |
|||||
|
Hook right limitation |
C 2 |
940 |
|||||
|
Track center to end beam lateral |
A |
100 |
|||||
|
Wheel base |
W |
1600 |
1600 |
2000 |
2000 |
2500 |
2500 |
|
Crane width |
B |
2012 |
2012 |
2412 |
2412 |
2912 |
2912 |
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless
speed change
9)Primer and finishing paint
10)Crane structure:steel box type
HENAN DONGQI MACHINERY CO., LTD is a Sino-New Zealand joint venture; covers an area of 240,000 square meters; total investment is 240 million RMB, and registered capital 108 million RMB. There are over 3600 employees, among them 500 technicians,and over 70 senior engineers at present. All kinds of manufacturing and detection devices total 2000 sets. Annual comprehensive crane production capacity reaches more than 10.000 sets, and output values climbs 1.5 billion RMB. The company has the technological cooperation with many famous European machinery manufacturers such as Britain SZW, German NORD and SIEMENS and French Schneider, etc. The company is committed to technological innovation and development, and makes great efforts in building DONGQI crane into international and domestic famous brand.
1.How about the delivery time?
Hoist: 15 days
single girder crane: 25 days
double girder crane: 40 days
Nonstandard design cranes: above 50 days.
2. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, Trade assurance.
3.What is Trade assurance?
Trade Assurance is a free payment protection service for buyers.The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
4.What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
5.Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and span. we accept non standard design and manufacturing.
6.How about the warranty?
Our warranty is 1 year, within 1 year, any questions, we send spare parts as free.
