Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Smarts
-
model:
-
SMT-R-M1
-
Supply voltage:
-
AC100-265V
-
Product dimension:
-
L86*W86*H51mm
-
output current:
-
50ma
-
Working temperature:
-
-20-60℃
-
Frequency:
-
50/60Hz
-
dimming:
-
dali dimming
-
weight:
-
190g
-
Output channel:
-
1CH
-
Dimming operation:
-
Rotary
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
0
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Smarts
-
model:
-
SMT-R-M1
-
Supply voltage:
-
AC100-265V
-
Product dimension:
-
L86*W86*H51mm
-
output current:
-
50ma
-
Working temperature:
-
-20-60℃
-
Frequency:
-
50/60Hz
-
dimming:
-
dali dimming
-
weight:
-
190g
-
Output channel:
-
1CH
-
Dimming operation:
-
Rotary

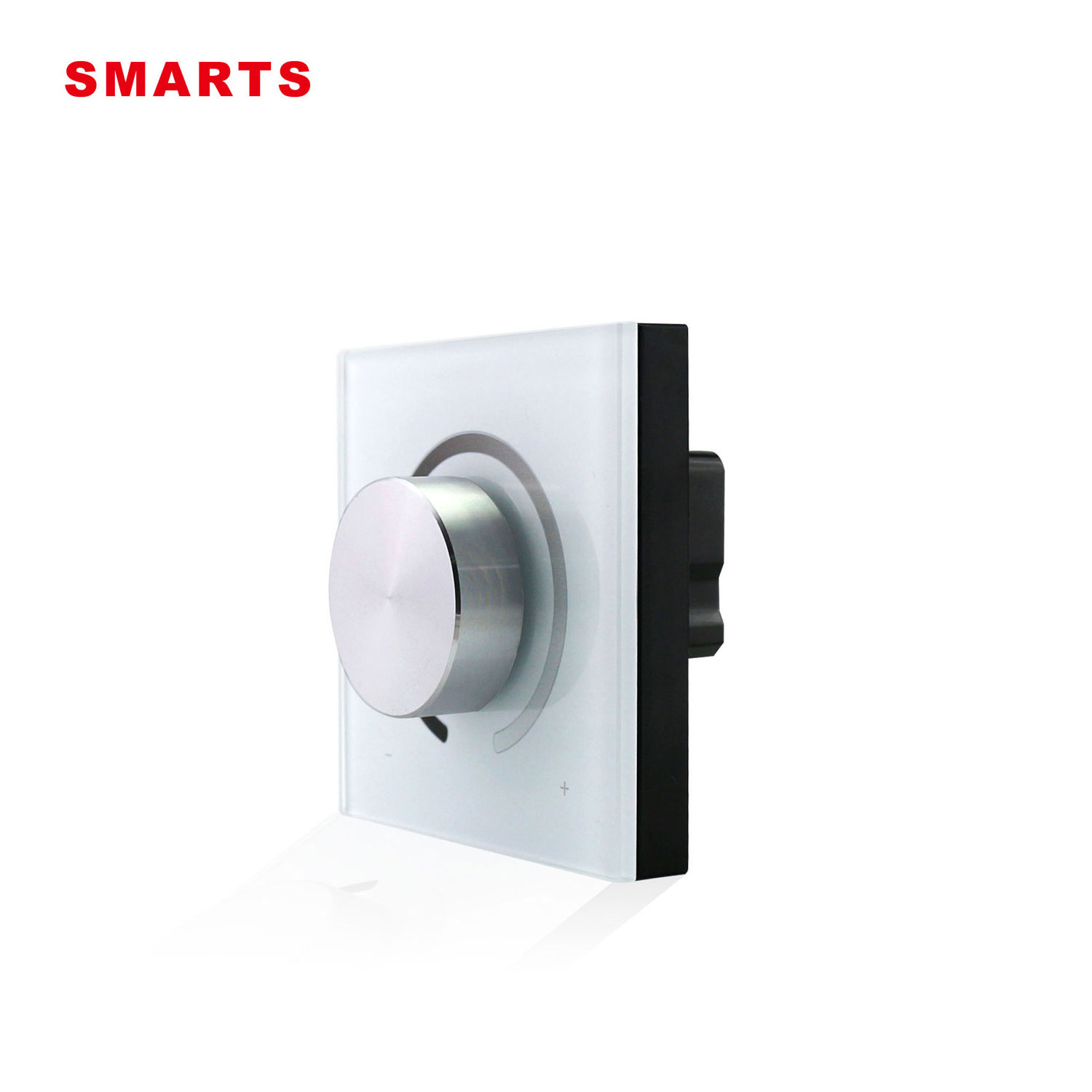

230v dali dimmer switch for led light wall LED controller
Product Description
Funtion Description
Power Supply: Provided by DALI Bus
Output Signal : DALI Signal
Static power: <0.5W
Current Consumption: 25mA
±
10
%
Output channel: 1CH
Product dimension: L86*W86*H51MM(L.W.H)
Packing size: L116*W110*H56.5MM(L.W.H)
Working temperature: -20
℃
-60
℃
Net weight: 190g
Gross weight: 248g
Part of device
Typical Application
Wiring diagram
Interface Introduction
Short press control rotary to turn on/off the controller.
Long press control rotary to adjust brightness.
Spin control rotary to adjust brightness.
DIP Switch Operation
Instruction mannal
