Quick Details
-
Bending Precision (Deg):
-
±1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LYM-Liye Machinery
-
Power (kW):
-
5.5
-
Weight (KG):
-
1220
-
Marketing Type:
-
Hot sales Product
-
Product name:
-
DW50NC Hydraulic Mandrel Core pulling bending machine
-
Color:
-
Blue
-
Weight:
-
1220kg
-
Model:
-
DW50NC
-
Motor Power:
-
5.5KW
-
Material:
-
Stainess Steel
-
Max hydraulic pressure:
-
12MPa
-
Factory location:
-
2 hours away from shanghai
-
Certification:
-
CE&ISO&BV
Quick Details
-
Machine Type:
-
NC Control
-
Bending Radius (mm):
-
0 - 250
-
Max. Bending Angle (Deg):
-
185
-
Bending Precision (Deg):
-
±1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LYM-Liye Machinery
-
Power (kW):
-
5.5
-
Weight (KG):
-
1220
-
Marketing Type:
-
Hot sales Product
-
Product name:
-
DW50NC Hydraulic Mandrel Core pulling bending machine
-
Color:
-
Blue
-
Weight:
-
1220kg
-
Model:
-
DW50NC
-
Motor Power:
-
5.5KW
-
Material:
-
Stainess Steel
-
Max hydraulic pressure:
-
12MPa
-
Factory location:
-
2 hours away from shanghai
-
Certification:
-
CE&ISO&BV
bending machine

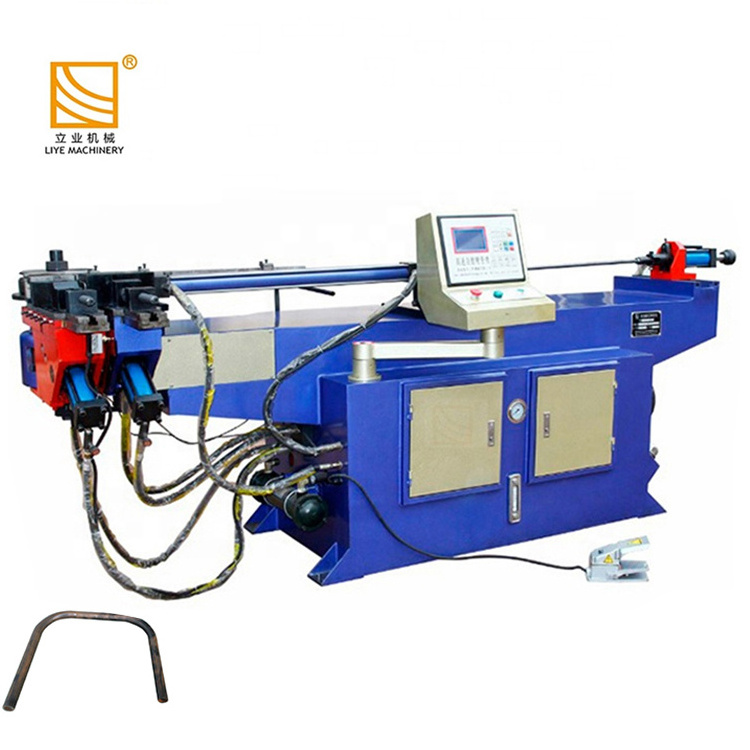

DW50NC Hydraulic Mandrel Core pulling pipe bending machine
Specification:
| NC semi-automatic pipe bending machine | |
| Specification | DW50NC |
| The Largest Processing Diameter (iron pipe) | φ50*3mm |
| Max. Wear Heart Distance | 2200mm |
| Max. Bending Angle | 185° |
| The Main Oil Cylinder Diameter | Φ95 |
| Oil Pump | 23L |
| Bending Radius | 20-250 |
| Pipe Bending Precision | ± 1° |
| Motor Power | 5.5 kw |
| Hydraulic Pressure | 12Mpa |
| Can Be Bent Pipe Number Per Set | 16 |
| Can Set Fitting File Number | 16 * 16 |
| Measurement Size Of Machine (L*W*H) | 3000 * 700 * 1200 mm |
| Weight Of Machine | 1220 kg |
| Bending Mode | Rack Transmission |
| Warranty | 1Year / Life-Long Maintenance |
Feature:
1. The product is controlled by microcomputer and driven hydraulically and it can bend various types of tube bender with different bending angle.
2. It applies Chinese character display and man-machine conversation operation, and can be operated manually, half circularly or full circularly.
3. It applies hydraulic and electrical elements with high performance.
4. Cooling system with large capacity is provided to control working temperature effectively.
5. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.
6. The movable foot switch has three functions, automatic startup, emergency stop and emergency stop continuity, which ensure high safety.
Standard accessories
1. One pair of standard mould (wheel mould, clamping mould and sliding plate mould)
2. One set of common tools
Categories of bent materials
Steel tube, stainless steel tube, copper tube, aluminum tube and multiple-unit tube
Special accessories
Auxiliary pushing device, core rod, wrinkle-proof mould, shaped mould, forming mould
Shapes
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc.
Recommended using units
Automobile spare parts (brake line, bumper bar, silencer and seat, etc.). Industries including motorcycle manufacturing, electromobile manufacturing, iron art, fitness equipment, air conditioning, bicycle, steel furniture, sanitary and bathroom equipment, seats for relaxation, petroleum pipeline, shipbuilding and boiler.
