Quick Details
-
Size:
-
21000*2990*1080
-
Place of Origin:
-
Shandong, China
-
Product name:
-
front loading detachable gooseneck lowboy trailer
-
Pay Load:
-
184-200t
-
King Pin Setting:
-
50# or 90# traction pin
-
Landing Gear:
-
Standard 28Ton
-
Suspension:
-
hydraulic suspension
-
Tires:
-
12R22.5,11.00-20, 11.00R20,12.00-20, 64units
-
Axles:
-
11.5T capacity,FUWA,BPW or STEYR axle,
-
Applications:
-
cranes and different industrial equipment transportation
-
Platform plate:
-
5mm checkered plate
-
Color:
-
Customers Optional
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
230-250T
-
Brand Name:
-
ZW-trailer
-
Size:
-
21000*2990*1080
-
Place of Origin:
-
Shandong, China
-
Product name:
-
front loading detachable gooseneck lowboy trailer
-
Pay Load:
-
184-200t
-
King Pin Setting:
-
50# or 90# traction pin
-
Landing Gear:
-
Standard 28Ton
-
Suspension:
-
hydraulic suspension
-
Tires:
-
12R22.5,11.00-20, 11.00R20,12.00-20, 64units
-
Axles:
-
11.5T capacity,FUWA,BPW or STEYR axle,
-
Applications:
-
cranes and different industrial equipment transportation
-
Platform plate:
-
5mm checkered plate
-
Color:
-
Customers Optional
Product Description

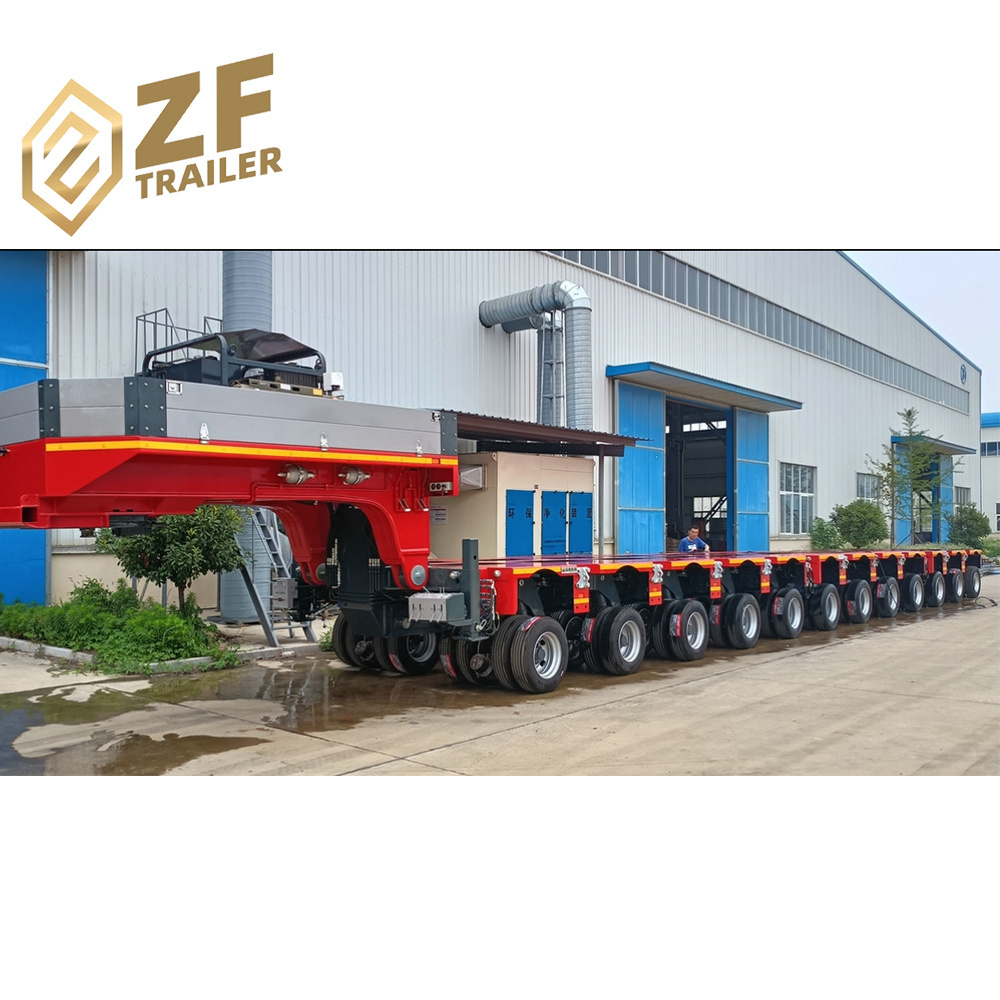

150Ton modular trailer
For transporting of heavy goods, low center of gravity, good carrying capacity, safety factor high, with removable gooseneck,which will help the loading of goods.
For transporting of heavy goods, low center of gravity, good carrying capacity, safety factor high, with removable gooseneck,which will help the loading of goods.
Details Images
The frame part is welded with high-quality HG60 and Q345 steel. The central longitudinal beam and the splicing point have superior connection strength. The frame parts are calculated by computer CAD-aided design and ANSYS strength design, and are strictly produced according to ISO9000 quality system. Has excellent quality.
Specification
|
Trailer Model
|
hydraulic steering modular trailer
|
|
Function
|
Carry heavy goods
|
|
Steel material
|
Q550
|
|
Main beam
|
Upper 50mm,down 60mm,middle double 16mm
|
|
Overall Dimension
(Lx W x H)(mm) |
18000×2990×1080(±290)
Load flatbed (13500×2990×1080) |
|
Loading Weight( KG)
|
184000-200000
|
|
Axle Brand
|
11.5TON Axle JULIN Brand
|
|
Axle Number
|
16
|
|
Wheelbase(mm)
|
1550
|
|
Suspension system
|
Hydraulic suspension
|
|
Trailer max turning radius
|
42
|
|
Approach / departure angle
|
30/30
|
|
Wheel rim
|
6.0-15
|
|
Tire Type and quantity
|
Tire: 750R15 64pcs
|
|
Gooseneck type
|
Hydraulic detachable gooseneck with 2100 Engine and 10MCY14-1B
Pump. |
|
Max speed
|
8 km/h
|
|
Parts
|
Simple tripod and a set of tow bar.
|
|
Brake system
|
Dual Line braking system, none ABS
|
|
Brake air chamber
|
8 double and 8 single chamber
|
|
Electrical system
|
1. Voltage: 24v
2. Receptacle: 7 ways (7 wire harness) |
|
Side Guard
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
|
|
One set 6-core standard Cable.
|
|
|
According to customer’s requirement
|
|
Painting
|
Color as customer’s requirement
|
|
Packing
|
Unpacked cargo, Polish with wax before shipping
|
|
Delivery way
|
Transfer to Tianjin Port, and carry by ro-ro ship, the freight cost depends on the volume.
|
Packing & Delivery
Unpacked cargo,small type can be put into 20'GP or 40'GP,big type can be carried by bulk carriers or ro-ro ship or according to your requirements.hydraulic steering lowbed semi trailers
