Top Selling Factory Price Fanvil X3U IP Phone SIP Voip Phone For Hotel

Top Selling Factory Price Fanvil X3U IP Phone SIP Voip Phone For Hotel

FOB Reference Price: Get Latest Price

≥1 Pieces

US $62.81

≥11 Pieces

US $60.72

≥50 Pieces

US $58.63

≥100 Pieces

US $54.44

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Color:: Black

Protocol:: SIP V2.0

Support:: POE

Warranty:: 1 Year

Keypad:: 3 Line keys

Main LCD:: 2.8" main color display

Configuration Way:: WEB ,telnet and LCD menu management

SIP Line:: 6 SIP lines

Voice Codec:: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32

Lauguage:: English, Russian, Spanish...

Quick Details

Type:: VoIP Phone

Brand Name:: Fanvil

Model Number:: X3U

Place of Origin:: Guangdong, China

Color:: Black

Protocol:: SIP V2.0

Support:: POE

Warranty:: 1 Year

Keypad:: 3 Line keys

Main LCD:: 2.8" main color display

Configuration Way:: WEB ,telnet and LCD menu management

SIP Line:: 6 SIP lines

Voice Codec:: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32

Lauguage:: English, Russian, Spanish...

Product Description

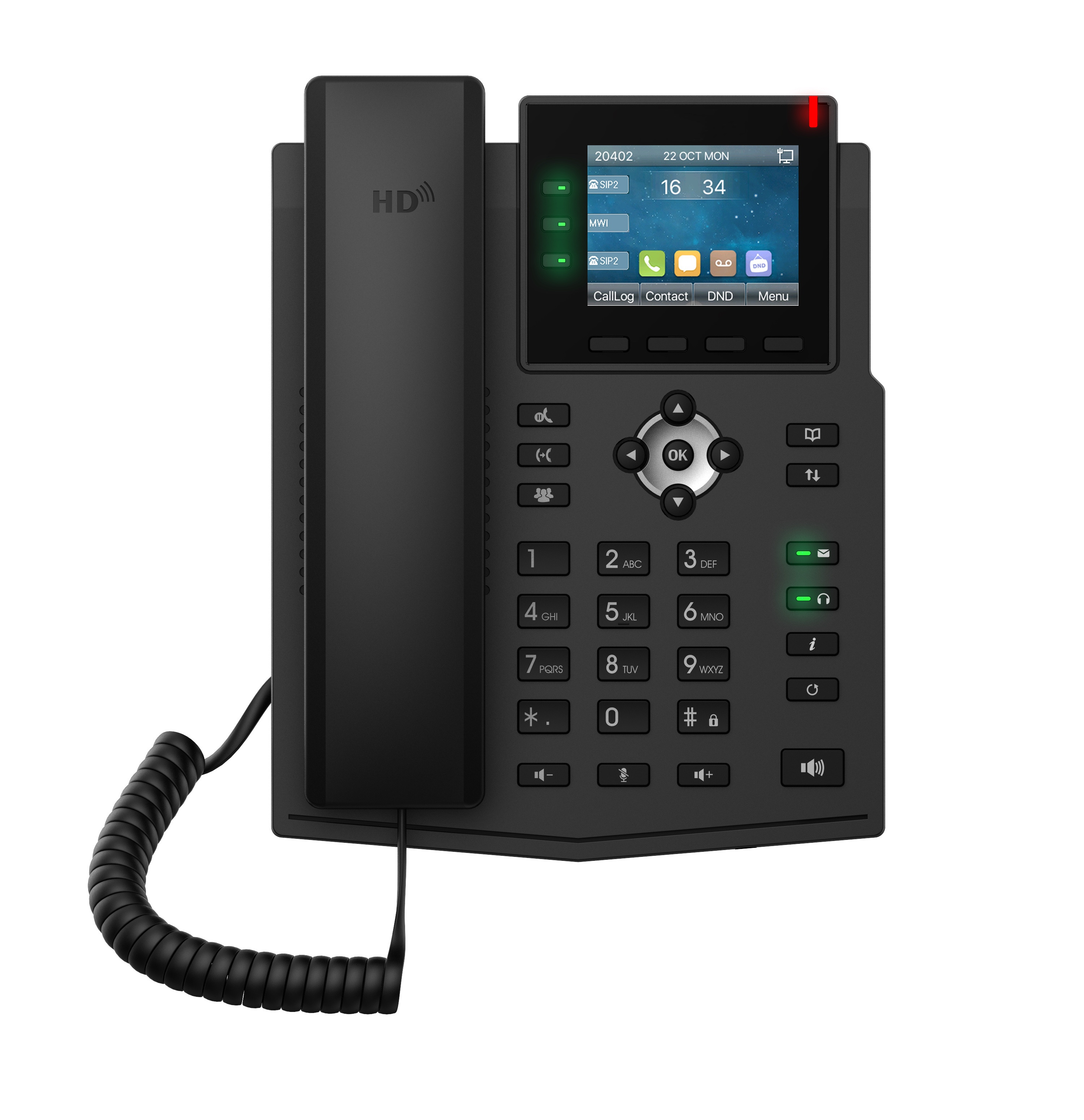

X3U Entry Level IP Phone

X3U is an entry-level color screen IP Phone. With all the necessary VoIP features and other extended features like EHS headset,it provides the high-quality and convenient experience for users at an affordable price.

Highlights

6 SIP lines, 3-way conference,
SIP hotspot 3 Line keys on the main display 2.8” main color display HD audio on speakerphone and handset Opus voice: can handle avariety of audio applications. Support EHS wireless headset Dual Gigabit ports, integrated PoE Stand with 2 adjustable angles of 45 and 50 degrees Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

Physical specifications

Generic 6 SIP Lines HD Voice PoE Enabled 2.8-inch color screen Handset / Hands-free / Headset mode Desktop Stand / Wall-mounted (need an additional wall hangingparts) Optional External Power Supply Phone Functions Local Phonebook (1000 entries) Remote Phonebook (XML/LDAP, 1000 entries) Call logs (In/Out/Missed, 600 entries) Black/White List Call Filter Screen saver Voice Message Waiting Indication (VMWI) Programmable DSS/Soft keys Network Time
Synchronization Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable) Support Jabra wireless headset
(Through EHS20 EHS Cable) Support Recording (Through Server) Action URL / Active URI uaCSTA Call Functions Call out / Answer /
Reject Mute / Unmute (Microphone)

Syslog AES encryption for configuration file Physical Specifications Main LCD x1: 2.8-inch (320x240) Color Screen
Working Temperature: 0~45℃ Working Humidity: 10~95% Installation: Desktop Stand Wall-mounted (need an additional wall hangingparts) Color: Black Device Dimensions: Desktop Stand (Angles 1): 169x186.3x174.5 mm Desktop Stand (Angles 2): 169x177.6x183.7 mm
Wall-mounted: 169x115.6x212.5 mm Gift Box Dimensions: 274x215x68 mm Outer CTN Dimensions: 450x360x294 mm (10 PCS)

Model	Screen	Backlight	POE	Power adapter	Sample Price
X3S	2.4 inch (320x240) color-screen LCD	10/100Mbps	×	√	$39
X3SP	2.4 inch (320x240) color-screen LCD	10/100Mbps	√	Optional	$38
X3G	2.8 inch (320x240) color-screen LCD	10/100Mbps	√	Optional	$49

RFCs:

354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976/3261/3262/3263/3264/3265/3268/3311/
3489/3711/4346/4566/5630/5865

Call Features Generic

Call Hold / Call Resume / Call Change Call Waiting Intercom Caller ID Display Speed Dial Anonymous Call (Hide Caller ID) CallForward (Always/Busy/No Answer) Call Transfer (Attended/Unattended) Call Parking/Pick-up (Depending on server) Redial Do- Not-Disturb Auto-Answering Voice Message / Music Hold (With server) 3-way Conference Hot Line Hot desking Ring tone selection Audio HD
Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response) HAC handset Wideband ADC/DAC 16KHz Sampling Narrowband
Codec: G.711a/u, G.726-16K, G726-24k, G726-40k, G.726-32K, G.729A/B, iLBC , G723.1(Optional) Wideband Codec: G.722, Opus
Full-duplex hands-free speakerphone with AEC Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise
Estimation (BNE) / Noise Reduction (NR) /

Automatic Gain Control (AGC) Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer DTMF: In-band, Out-of- Band – DTMF-Relay(RFC2833) / SIP INFO Network Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC ypass IP Mode:IPv4/IPv6/IPv4&IPv6 IP

Networking
Configuration: Static IP / DHCP / PPPoE Network Access Control: 802.1x VPN: L2TP / OpenVPN VLAN LLDP QoS RTCP-XR (RFC3611),VQ-RTCPXR (RFC6035) Protocols SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 LLDP PPPoE 802.1x L2TP
OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069 AES128 & AES256 Deployment & Management Auto- Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP
OPT66/SIP PNP/TR-069 Web Management Portal Web-based Packet Dump Configuration Export / Import Phonebook Import/Export Firmware Upgrade

Detailed Images

2.8-inch Color Display

Bright 2.4-inch 320*240 color display on Fanvil X3S/X3SP new version IP phone, provides high-resolution graphics for the user.

Support EHS headset Free your Hands

Wireless EHS headset supported by Fanvil X3S/X3SP new version through EHS cable allows you to deal with other issues while making
a phone call, which is more productive in many working spaces.

Enhanced HD Audio Communication
With enhanced HD audio, Fanvil X3S/X3SP new version prevents the background noise from the external environment and presents you
ideal HD audio in communication.

Phone Features
• Phone Accessibility Control by User PIN
• Intelligent Phonebook (up to 500 entries total)
• Remote Phonebook (XML/LDAP)
• Intelligent Contact Number Matching / Filtering
• Call log (300 entries total, in/out/missed)
• Voice Message Waiting Indication (VMWI)
• Network Time Synchronization
• Multi-language support in screen and web UI: English, Chinese(Traditional/Simplified), Japanese, Russian, Italian, Turkish,
Germany, Dutch, Spanish, Hebrew, Polish, French etc.

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband CODEC: G.722
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Product Presentation

Company Introduction

China Skyline Telecom Co., Ltd. was founded in 2007. Focus on the communications industry for more than 10 years. We have over 220 employees, 15 departments and more than 10 production lines. More than 200 companies from over 60 different countries have established business with us. Our company is a manufacturer of VoIP Gateways, GSM VoIP gateways, Industrial Routers… with well-equipped testing devices and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries.

Packing&Shipping

Shipment	DHL, FedEx, UPS, EMS, TNT, Aramex, Special Line... We can recommend the suitable one as our experience
Payment	Credit Card, E-checking, Visa, USDT, T/T, WebmoneyWe can try to arrange your local country account for payment conveninetly
Delivery Time	0-3 days after payment received
Arrival Time	One week about
