Quick Details
-
Brand Name:
-
CNSPD
-
Model Number:
-
JK2009
-
Car Make:
-
Automotive, Marine
-
Size:
-
Standard Size
-
Name:
-
100a car boat marine battery cut off switch
-
Nuts material:
-
Iron
-
Studs material:
-
Copper
-
Rated current:
-
100A @12VDC
-
Max surge current&Time:
-
500A, 5s
-
Rated voltage:
-
12V/24V
-
Electrical life:
-
20,000 cycles
-
Ambient temperature range:
-
-40℃- +85℃
-
Certificate:
-
CE,IATF16949
Quick Details
-
OE NO.:
-
N/A
-
Warranty:
-
1 Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNSPD
-
Model Number:
-
JK2009
-
Car Make:
-
Automotive, Marine
-
Size:
-
Standard Size
-
Name:
-
100a car boat marine battery cut off switch
-
Nuts material:
-
Iron
-
Studs material:
-
Copper
-
Rated current:
-
100A @12VDC
-
Max surge current&Time:
-
500A, 5s
-
Rated voltage:
-
12V/24V
-
Electrical life:
-
20,000 cycles
-
Ambient temperature range:
-
-40℃- +85℃
-
Certificate:
-
CE,IATF16949
12V 100A car boat marine battery cut off switch
1.Specification:
|
Model |
JK2009 |
|
Rated voltage |
12V/24V |
|
Working voltage |
9V ~16V, 18V ~32V |
|
Continuous current |
100A @12V |
|
Studs material |
Copper |
|
Hex nut material |
Brass |
|
Transient current&time |
500A, 5s |
|
Electrical life |
20,000 cycles |
|
Application |
Universal |
|
Working temperature |
-40°C~+85°C |
2.Outline Dimension:

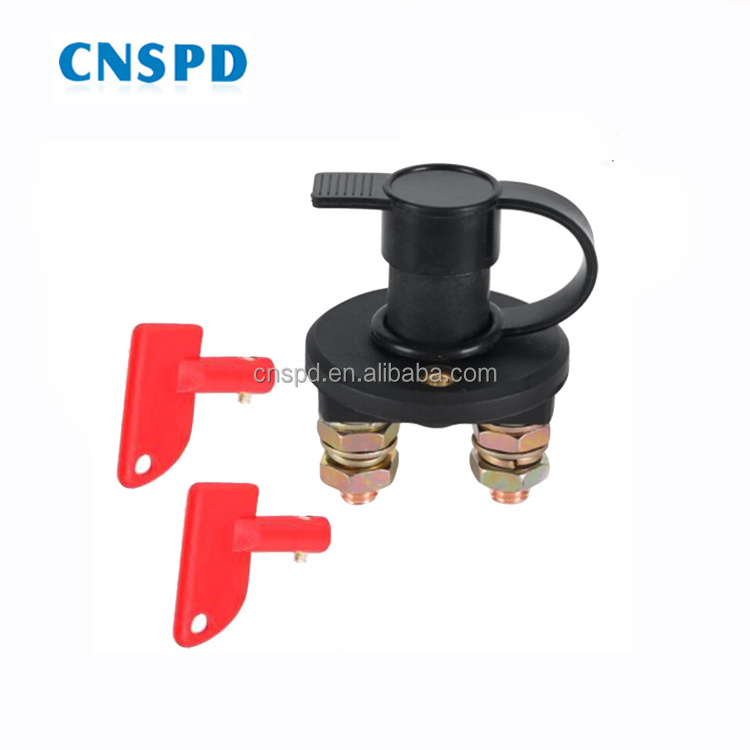

3.Product Picture:
