- Product Details
- {{item.text}}
Quick Details
-
Base thread:
-
M30X1.5mm
-
Mounting:
-
Screws
-
Base:
-
Fixed or foldable(optional)
-
Lens:
-
clear or milk(optional)
-
Connection:
-
1 meter wire
-
Diameter:
-
70mm
-
Buzzer:
-
Continue sound
-
Performance:
-
Steady ON
Quick Details
-
Place of Origin:
-
Shenzhen China
-
Stack:
-
Red/Yellow/Green/Buzzer
-
Aluminum pole:
-
90mm long
-
Base thread:
-
M30X1.5mm
-
Mounting:
-
Screws
-
Base:
-
Fixed or foldable(optional)
-
Lens:
-
clear or milk(optional)
-
Connection:
-
1 meter wire
-
Diameter:
-
70mm
-
Buzzer:
-
Continue sound
-
Performance:
-
Steady ON

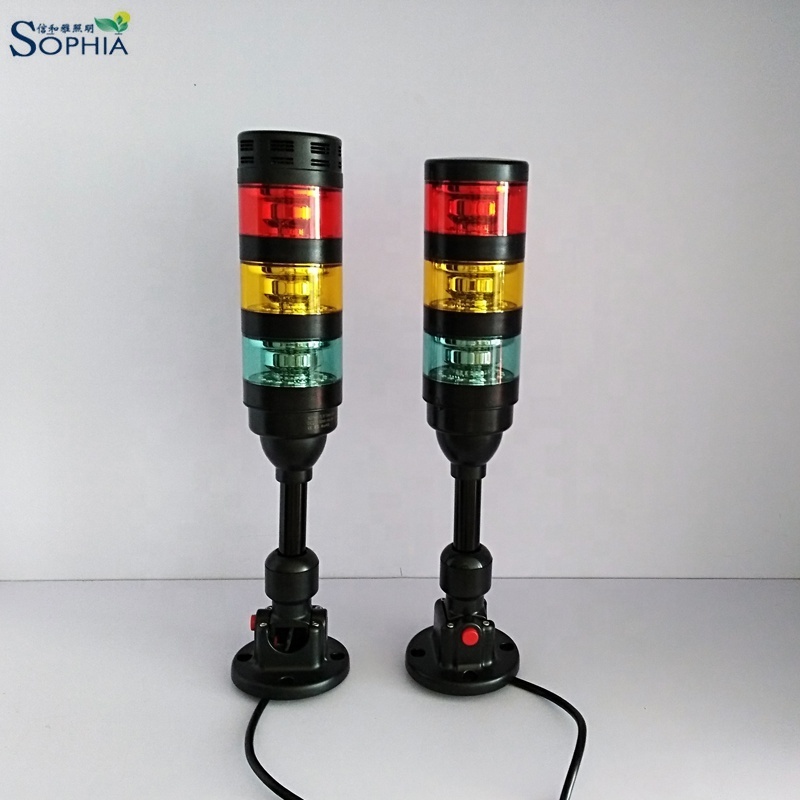

Sophia TL70 Tower light, Red, Amber, Green, 24V, continue on, Buzzer continue sound, with 90mm aluminum tube, swivel base
Six different mounting styles
Comparison
Application
| Item No. | TL70-Three-Buzzer series |
| Stack | Three |
| Input | 12V/24VDC |
| Current | 12VDC 240mA; 24VDC 120mA |
| Buzzer | 30mA |
| Color | Red/Orange/Yellow/Green/Blue/White, random combination |
| Performance | a Revolving; b flash; c jump; d constant color |
| Electric protection | Protected again reverse polarity |
| Response time | <10milli seconds |
| Buzzer frequency | 2.5KHz+/-500Hz, 95db |
| Working temperature (ºC) | -40ºC~50ºC(no buzzer);-20ºC~50ºC(with buzzer) |
| IP rating | IP53 |
| LED life span (H) | 100000 hours |
| Dimension(mm) | Ø70x H225mm (not include installation base) |
| Installation accessory | Foldable base/ fixed plate/ pole with plate/nut |
| Material | Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, Surface very smooth and flat, high transmittance, unique designed driver, can recognize various performance and maximum five stacks |
| Feature | Compact and patented design, waterproof. Corrosion proof, oil proof. Housing and surface is different from normal one in market, very smooth and flat, increase the brightness. Excellent driver, can make maximum five stacks with various performance. Module design, easy to maintain. Base with 30mm thread, very easy and convenient to install. |
| Approval | CE, FCC |
More Similar Products
7W COB flexible arm light
RL50 Indicator light
TL50 LED tower light
Linear Machine Work Light
Pick To Light
FAQ
Dear Customers, thanks for your attention the following:
1 Red, Yellow, Green or Red,Green, blue, Price is same, standard is Red, Yellow, Green light.
2 Standard is 24Vdc. If need DC12V input, price increase USD2.0/pc;
3 Usually, lamp with 1 meter cable. If need M12 QD(quick disconnect, price increase USD5.5/piece);
4 Standard light is continue on, if need flashing, price keep same.
5 For Rotating/ Revolving performance, price increase USD2.5/color.
6 If no need buzzer, price reduce USD4.5/piece.
7 If no need swivel base, aluminum tube, connectors, price reduce USD3.8/piece.
