Quick Details
-
Model Number:
-
pipe
-
Specification:
-
0.8-36MM
-
Length:
-
30-50M
-
Thickness:
-
1-3mm
-
Standard:
-
ISO9001
-
Color:
-
Milk white
-
Feature:
-
Corrosion Resistant
-
Type:
-
Flexible
-
Shape:
-
Regular Round
-
Certification:
-
ROHS
-
Name:
-
6mm Medical Ptfe Tube Hose Pipe Sleeve
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FORBEST
-
Model Number:
-
pipe
-
Specification:
-
0.8-36MM
-
Length:
-
30-50M
-
Thickness:
-
1-3mm
-
Standard:
-
ISO9001
-
Color:
-
Milk white
-
Feature:
-
Corrosion Resistant
-
Type:
-
Flexible
-
Shape:
-
Regular Round
-
Certification:
-
ROHS
-
Name:
-
6mm Medical Ptfe Tube Hose Pipe Sleeve

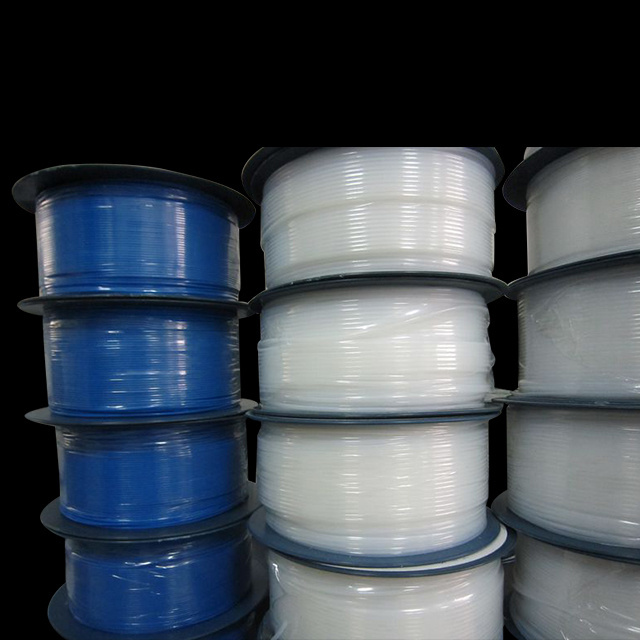

6mm Medical Ptfe Tube white Hose Pipe Sleeve
Quick details
Place of Origin : China (mainland) Brand Name: Forbest ,
Material : PTFE
Speicification: Dia 0.8 to 26mm Length: customed Thickness : customized
Standard: customized
High-low temperature : -270C TO 260C fireresistant,:YES USAGE: medical applications, aerospace, analytical sciences, and other demanding applications.
Packaging & Delivery
Packing details : Standard Export Carton Packing
Delivery Detail: 10-12 days
TECHNICAL INDEX
|
Item |
(Test Method) |
(Specifications) |
|
(g/cm 3 ) (Specific Gravity) |
ASTM D792 |
2.16 |
|
(V) (Rated Voltage) |
UL-224 |
600V(S) 300V(T) 150V(L) |
|
(℃) UL Rated Temperature |
-- |
-80~200 |
|
(MPa) Tensile Strength |
ASTM D638 |
24.5 |
|
(%) Elongation Ratio |
ASTM D638 |
350 |
|
(MPa) (Flexural Modulus) |
ASTM D790 |
490 |
|
(Impact Strength) |
ASTM D256+23℃-54℃J/m |
-No Break- 107 |
|
(Shore D) (Hardness) |
ASTM D2240 |
55 |
|
(Coefficient Of Dynamic Friction) |
-- |
0.1 |
|
(Melting Point) |
-- |
327 |
(Service Temperature 20000h With 50% Retention Of Ultimate Elongation) |
-- |
260 |
|
(Inflammability) |
UL-224 |
VW-1 |
|
(Dielectric Constant At 10 3 -10 6 Hz) |
ASTM D150 |
2.1 |
|
(2500V/60s) Dielectric Strength |
UL-224 |
YES |
|
(Dissipation Factor At 10 6 Hz) |
ASTM D150 |
0.0002 |
|
(S) (Arc Resistance) |
ASTM D495 (Stainless Steel Electrodes) |
>300 |
|
(Ω·cm) (Volume Resistivity) |
ASTM D257 |
>10 18 |
|
(Weather Resistance) |
“Weather-O-Meter” (2000h) |
No cracking |
|
(Solvent Resistance) |
ASTM D543 |
Excellent |
|
(Chemical Resistance) |
ASTM D543 |
Excellent |
