Rubber mill machine is used to mill 1~4mm pure rubber granules into rubber powders 30~100mesh under normal condition.

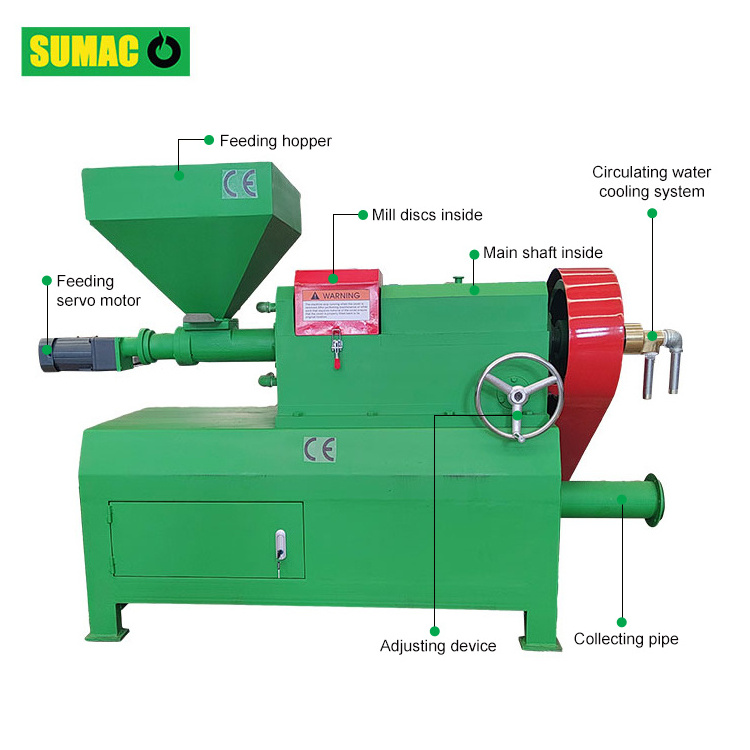

Tyre grinder machine mainly consists of milling motor, feeding servo motor, frequency conversion feeder, motor adjusting device,
feeding hopper, fixed and rotary mill discs, machine frame, mian shaft, collecting pipe, circulating water cooling system.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1920x1250x1320mm
-
Year:
-
2024
-
Power (kW):
-
30.2 kW
-
Weight (KG):
-
1200 KG
-
Name:
-
waste tire recycling rubber powder machine waste tire fine grinder
-
Raw material:
-
Waste tires, all kinds of waste rubber
-
Input size:
-
1-4mm
-
Output size:
-
30~100mesh, customized
-
Capacity:
-
40-150kg/h
-
Dia of disc:
-
280mm
-
Operation:
-
Automatic Electric Buttons Controller
-
Cooler:
-
Water cooling system
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sumac
-
Voltage:
-
Customer's Request
-
Dimension(L*W*H):
-
1920x1250x1320mm
-
Year:
-
2024
-
Power (kW):
-
30.2 kW
-
Weight (KG):
-
1200 KG
-
Name:
-
waste tire recycling rubber powder machine waste tire fine grinder
-
Raw material:
-
Waste tires, all kinds of waste rubber
-
Input size:
-
1-4mm
-
Output size:
-
30~100mesh, customized
-
Capacity:
-
40-150kg/h
-
Dia of disc:
-
280mm
-
Operation:
-
Automatic Electric Buttons Controller
-
Cooler:
-
Water cooling system
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
waste tire recycling rubber powder machine waste tire fine grinder
|
Model
|
CXFJ-28
|
Capacity
|
40~150kg/h
|
|
Input size
|
1-4mm
|
Power
|
30.2Kw
|
|
Output size
|
30~100mesh
|
Cooler
|
Water cooling
|
|
Weight
|
1200Kg
|
Dimension(LxWxH)
|
1920x1250x1320mm
|
Introduction
Structure and Principle
Rubber powder making machine uses tungsten carbide as the milling surface of the milling disc, the milling disc base is made of special treated materials, crashing-proof, wearable, durable and good ductility;
Rubber grinder machine adopts horizontal structure, most parts are CNC processed to ensure the installation accuracy;
Compact structure, low power and vibration, easy operation and maintenance.
Structure and Principle
The feeding system adopts ultra-red monitor controlled by PLC to maximum the output. The clearance between fixed and rotary discs are also controlled by PLC motors, which has greatly improved the quality and fineness of the rubber powder;
Internal circulating water cooling system can ensure ideal temperature for the milling discs during production, the rubber powder will not get burned or sticky.
Motors Of Rubber Mill
·
Simens Brand
Millstones Of Tire Recycling Grinding Machine
Rubber Powder Making Machine
Input
·
Rubber granules
Output
·
Rubber Powder
·
40mesh rubber powder
