Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ZULIN
-
Material:
-
steel, timber beam
-
Color:
-
yellow, blue, or customized
-
Feature:
-
easy install, economic
-
Technical support:
-
remote or on-site instruction
-
Certificate:
-
SGS; ISO9001:2015
-
Size:
-
Customised
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ZULIN
-
Material:
-
steel, timber beam
-
Color:
-
yellow, blue, or customized
-
Feature:
-
easy install, economic
-
Technical support:
-
remote or on-site instruction
-
Certificate:
-
SGS; ISO9001:2015
-
Size:
-
Customised
Timber Beam Wall & Column Formwork

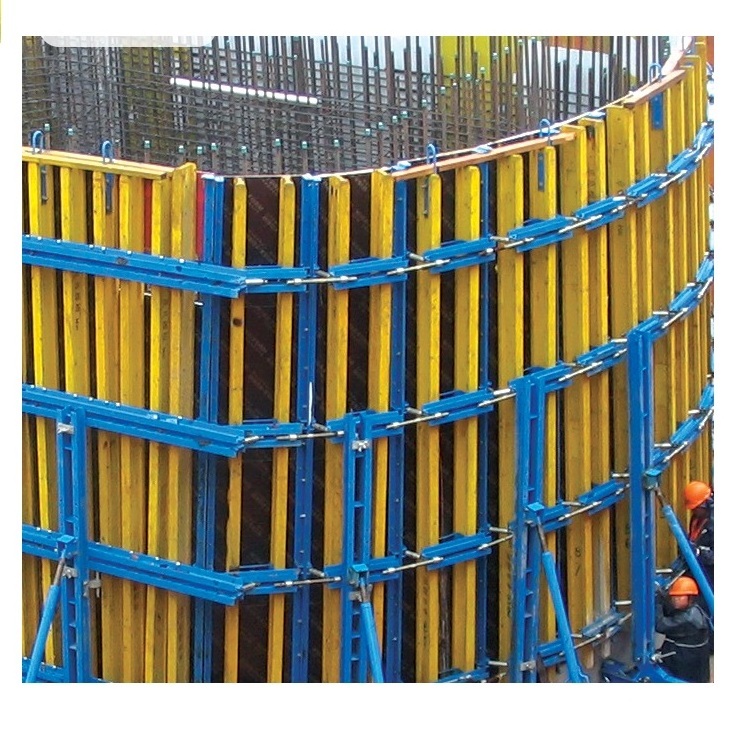

Timber Beam Wall Formwork
Timber beam wall formwork is used for the concrete pouring of wall. The application of large areas' formwork has greatly increased the construction efficiency and reduced the cost. The system is convenient for construction and it is easy to control the quality.
The system has two parts, formwork and pull-push props. The formwork is made of plywood, timber beam and steel waling. Pull-push props can be designed according to the project or simply select the standard props. Tie-yoke and tie-rod are used
to reinforce the corner
Timber Beam Column Formwork
Timber Beam Column Formwork is used for the concrete pouring of square or rectangle column. The system has the same structure and similar connection type with wall formwork.
Adjustable column formwork
The adjustment of adjustable column formwork is realized by changing the steel waling relative position
1. Standard specifications
The steel waling of standard adjustable column formwork has three specifications. This can satisfy the need of concreting of
column with side length from 200mm to 1200mm.
| The length of steel waling(mm) | The side length of column(mm) |
| 1500 & 1800 | 800~1200 |
| 1500 & 1200 | 400~800 |
| 1200 & 900 | 200~400 |
When the steel waling are 1500 & 1200mm long, we can adjust the section dimension from 800x800mm to 400x400mm or any size column with side length from 400mm to 800mm, square or rectangle.
