Quick Details
-
Power (kW):
-
1.1
-
Range of Spindle Speed(r.p.m):
-
0 - 960 r.p.m
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
Yinda
-
Voltage:
-
380V 50HZ 3PHASE
-
Dimension(L*W*H):
-
510*450*980
-
Weight (KG):
-
180 KG
-
Product name:
-
Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher 75
-
Capacity:
-
50-80 kg/h
-
Input size:
-
≤ 50-100 mm
-
output size:
-
0.5-20 mesh
-
RPM:
-
960
-
Motor power:
-
1.1 KW
-
Jacket:
-
Avaible
-
Discharge:
-
Manual Cloth bag, bucket
-
machine material:
-
SUS304, SUS316L
-
Application scope:
-
Chemical Cosmetic Food industry
Quick Details
-
Output (kg/h):
-
50 - 80 kg/h
-
Feeding Size (mm):
-
10 - 15 mm
-
Output Size (mesh):
-
0.5 - 20 mesh
-
Power (kW):
-
1.1
-
Range of Spindle Speed(r.p.m):
-
0 - 960 r.p.m
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
Yinda
-
Voltage:
-
380V 50HZ 3PHASE
-
Dimension(L*W*H):
-
510*450*980
-
Weight (KG):
-
180 KG
-
Product name:
-
Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher 75
-
Capacity:
-
50-80 kg/h
-
Input size:
-
≤ 50-100 mm
-
output size:
-
0.5-20 mesh
-
RPM:
-
960
-
Motor power:
-
1.1 KW
-
Jacket:
-
Avaible
-
Discharge:
-
Manual Cloth bag, bucket
-
machine material:
-
SUS304, SUS316L
-
Application scope:
-
Chemical Cosmetic Food industry
Product Description

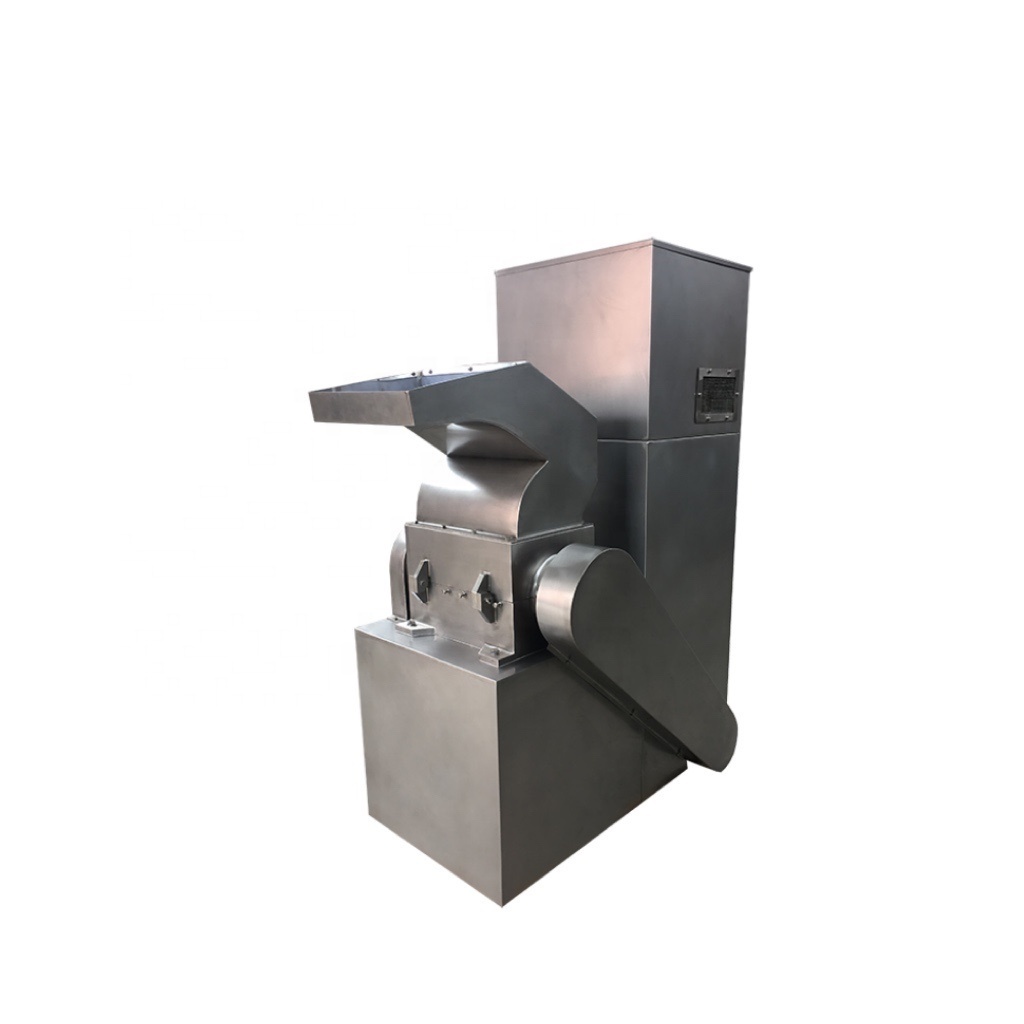

Ice Sugar Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher
Ice Sugar Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher
is composed of a feeding port, crushing chamber, discharge port, operating electric box, and optional dust removal system. The machine is designed according to the GMP standard, the whole machine is made of stainless steel, simple structure, easy to clean, and low noise.
Ice Sugar Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher
is currently the ideal equipment for coarse grinding. It has two structure design: the vertical coarse crusher and the horizontal coarse crusher.
|
Model
|
YDCS-80
|
YDCS-100
|
YDCS-200
|
YDCS-300
|
YDCS-400
|
YDCS-600
|
|
Production Capacity (kg/hr)
|
10-50
|
60-100
|
120-200
|
200-300
|
300-400
|
500-600
|
|
Feeding size (mm)
|
＜50
|
＜80
|
＜100
|
＜100
|
＜100
|
＜100
|
|
Finished size (mm)
|
1.0-20
|
1.0-20
|
1.0-20
|
1.0-20
|
1.0-20
|
1.0-20
|
|
Motor (kw)
|
1.1
|
1.5
|
4
|
5.5
|
11
|
15
|
|
RPM (r/min)
|
960
|
960
|
960
|
960
|
960
|
960
|
|
Dimension (mm)
|
510*450*980
|
650*500*1100
|
800*650*1250
|
900*700*1400
|
900*800*1440
|
900*900*1440
|
|
Weight (kg)
|
180
|
280
|
350
|
450
|
550
|
650
|
Details Images
Ice Sugar Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher
Working principle:
Ice Sugar Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher is a horizontal crushing structure, materials from the feed hopper into the crushing chamber, use the rotating knife and fixed knife impact, shear and get crushed, through the action of rotating centrifugal force, the material automatically flows to the outlet.
Ice Sugar Dry Food Root Ginger Salt coarse Crushing Machine Grinder Crusher is a horizontal crushing structure, materials from the feed hopper into the crushing chamber, use the rotating knife and fixed knife impact, shear and get crushed, through the action of rotating centrifugal force, the material automatically flows to the outlet.
2. smoothly and no blocking for the fine powder.
|
Main features:
1. High throughput and ease of maintenance and cleaning 2. Suitable for dry and fibrous material pulverisation processes 3. Continuous production with relatively reasonable energy requirements 4. The final size could be regulated by a filter screen. |
Industrial Application
Food additives Industry
Seasoning Industry
Cosmetic Industry
Mineral Industry
Chemicals Industry
Grains Industry
