Quick Details
-
Lift Speed:
-
5/0.8m/mim
-
Product name:
-
single girder overhead crane 5 ton
-
Application:
-
Industry
-
Capacity:
-
5ton
-
Lifting height:
-
12/6 Meters
-
Power supply:
-
110V/220V/230V/380V/440V
-
Control Method:
-
Pendent Control
-
OEM:
-
Accept
-
Brand:
-
JCYC
-
Hook:
-
Forged
-
Work duty:
-
A3-A5
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
South Africa
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JCYC
-
Lift Speed:
-
5/0.8m/mim
-
Product name:
-
single girder overhead crane 5 ton
-
Application:
-
Industry
-
Capacity:
-
5ton
-
Lifting height:
-
12/6 Meters
-
Power supply:
-
110V/220V/230V/380V/440V
-
Control Method:
-
Pendent Control
-
OEM:
-
Accept
-
Brand:
-
JCYC
-
Hook:
-
Forged
-
Work duty:
-
A3-A5
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
South Africa
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO9001
Product Description:

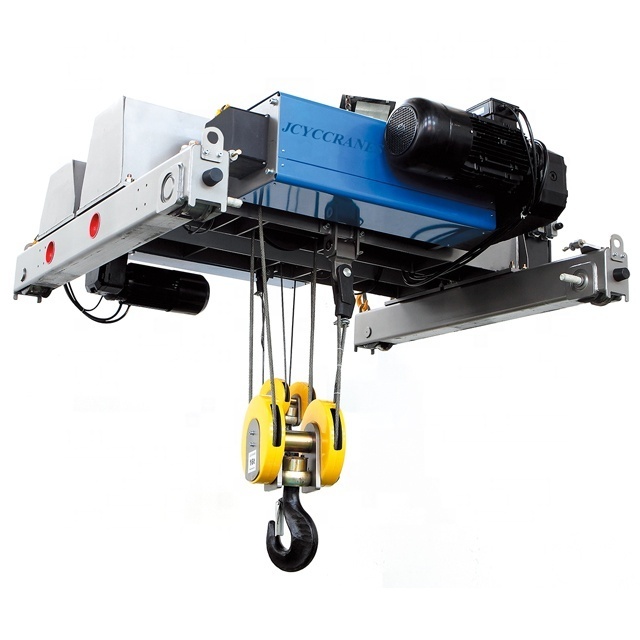

SHSL-A Low Headroom Electric Wire Rope Hoist
Details and Usage:
Low-headroom design, Enclosed in-line gear train with oil bath lubrication, Mechanical load brake and Electric motor brake
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and advantages:
1. High performance hoist delivers exceptional reliability in even the most demanding applications.
2. Maximize overhead clearance and minimizes beam-to-hook distance.
3. Protect loads and production machinery from unnecessary contact and damage.
4. Specified by the military because all critical welds are magnetic particle inspected.
5. Top-quality components and design features provide operator peace-of-mind.
6. High quality and wide adaptation.
7. Excellent performance and 1 year warranty.
8. Sample, OEM and ODM are all ok.
Parameter:
|
Capacity(t) |
Lifting Height(m) |
Lifting Speed(m/min) |
Lifting Motor(kw) |
Travelling Speed(m/min) |
Travelling Motor(kw) |
Lifting System (FEM/ISO) |
|
|
2 |
6/9/12/15/18 |
5/0.8 |
3.2/0.45 |
5/20 |
0.37 |
3M |
M6 |
|
3.2 |
6/9/12/15/18 |
5/0.8 |
3.2/0.45 |
5/20 |
0.37 |
2M |
M5 |
|
5 |
6/9/12/15/18 |
5/0.8 |
6.1/1 |
5/20 |
0.37 |
2M |
M5 |
|
6.3 |
6/9/12/15/18 |
5/0.8 |
6.1/1 |
5/20 |
0.37 |
1Am |
M4 |
|
8 |
6/9/12/15/18 |
5/0.8 |
9.5/1.5 |
5/20 |
0.75 |
3M |
M6 |
|
10 |
6/9/12/15/18 |
5/0.8 |
9.5/1.5 |
5/20 |
0.75 |
2M |
M5 |
|
12.5 |
6/9/12/15/18 |
4/0.6 |
12.5/2 |
5/20 |
0.75 |
1Am |
M4 |
|
16 |
6/9/12/15/18 |
4/0.6 |
16/2.6 |
5/20 |
0.75*2 |
2M |
M5 |
|
20 |
6/9/12/15/18 |
4/0.6 |
16/2.6 |
5/20 |
0.75*2 |
1Am |
M4 |
|
8 |
20/24/28/32/36 |
8/1.3 |
12.5/2 |
5/20 |
0.75 |
2M |
M5 |
|
10 |
20/24/28/32/36 |
8/1.3 |
16/2.6 |
5/20 |
0.75 |
2M |
M5 |
|
12.5 |
20/24/28/32/36 |
6.3/1 |
16/2.6 |
5/20 |
0.75 |
1Am |
M4 |
