Quick Details
-
Place of Origin:
-
Original new
-
Brand Name:
-
original new, Original new
-
Supplier Type:
-
in stock
-
Model:
-
X8R
-
MOQ:
-
1PCS
-
Warranty:
-
1year
-
Shipping Method:
-
DHL UPS FedEx TNT EMS
-
Price:
-
contact me
Quick Details
-
Chipset:
-
Original new
-
Application:
-
Tesla electric wire loop
-
Model Number:
-
X8R
-
Place of Origin:
-
Original new
-
Brand Name:
-
original new, Original new
-
Supplier Type:
-
in stock
-
Model:
-
X8R
-
MOQ:
-
1PCS
-
Warranty:
-
1year
-
Shipping Method:
-
DHL UPS FedEx TNT EMS
-
Price:
-
contact me

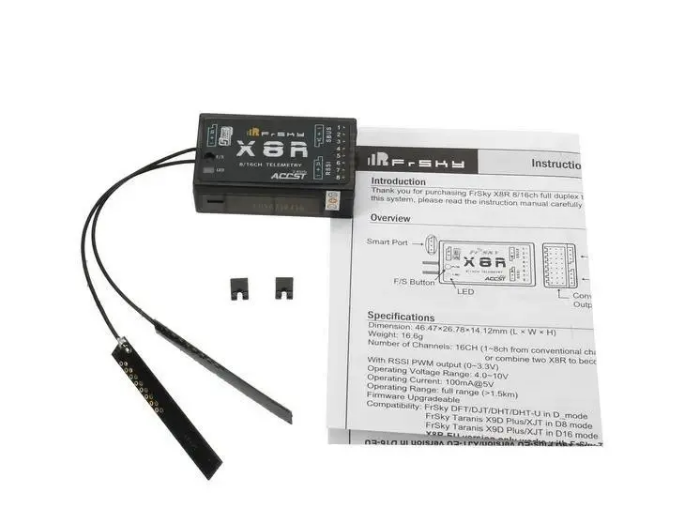

X8R 8/16ch Receiver for XJT Taranis X9D Plus Horus X12S X-lite Pro X9DP 2019 SMARTPORT and SBUS Remote Control Transmitter
Features:
X8R receiver (8/16ch telemetry receiver)
More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port.
With RSSI output: analog voltage output (0~3.3V).
Smart Port enabled, realizing two-way full duplex transmission.
FrSky's newest receiver features 16 channels (8 normal PWM outputs and all 16 channels on the dedicated Sbus output). Plus the exciting new Smart Port.
Smaller than the previous 8 channel receivers, but now packing 16 channels and the new Smart Port that supports the new hubless digital sensors! Or, connect the new vario, and then connect the old hub to use existing analog sensors.
A common question we get is how do you get all 16 channels out of the X8R? Well, FrSky has given you options. You can use the Sbus line to access all 16 channels. Using something like the FrSky Sbus Decoder, you can convert the digital Sbus signal to normal servo outputs. You can connect Sbus servos directly to the Sbus line, frSky will have several servo options very soon. Or you can combine 2 X8Rs and output channels 1-8 on the first receiver, and output 9-16 on the second receiver.
But that isn't all the X8R can do. It can also work in "D8 Mode to work with the DHT, DJT, DFT and DHT-U transmitter modules. In this mode you have 8 channels. The neat trick is the Smart Port still works in D8 Mode!
You are probably wondering about the new antennas on the X8R. FrSky refers to these as PCB antennas and report up to a 20% range increase over the standard antennas. The PCB antenna does take up a bit of space, for this reason, you can swap to any FrSky receiver antenna to meet your needs. (NOTE: Early versions of the X8R featured soldered antennas t. They could not be retrofitted to other lengths or styles. )
Features:
X8R receiver (8/16ch telemetry receiver)
More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port.
With RSSI output: analog voltage output (0~3.3V).
Smart Port enabled, realizing two-way full duplex transmission.
FrSky's newest receiver features 16 channels (8 normal PWM outputs and all 16 channels on the dedicated Sbus output). Plus the exciting new Smart Port.
Smaller than the previous 8 channel receivers, but now packing 16 channels and the new Smart Port that supports the new hubless digital sensors! Or, connect the new vario, and then connect the old hub to use existing analog sensors.
A common question we get is how do you get all 16 channels out of the X8R? Well, FrSky has given you options. You can use the Sbus line to access all 16 channels. Using something like the FrSky Sbus Decoder, you can convert the digital Sbus signal to normal servo outputs. You can connect Sbus servos directly to the Sbus line, frSky will have several servo options very soon. Or you can combine 2 X8Rs and output channels 1-8 on the first receiver, and output 9-16 on the second receiver.
But that isn't all the X8R can do. It can also work in "D8 Mode to work with the DHT, DJT, DFT and DHT-U transmitter modules. In this mode you have 8 channels. The neat trick is the Smart Port still works in D8 Mode!
You are probably wondering about the new antennas on the X8R. FrSky refers to these as PCB antennas and report up to a 20% range increase over the standard antennas. The PCB antenna does take up a bit of space, for this reason, you can swap to any FrSky receiver antenna to meet your needs. (NOTE: Early versions of the X8R featured soldered antennas t. They could not be retrofitted to other lengths or styles. )
|
Dimension:
|
46.5mm x 27mm x 14.4mm (1.83" x 1.06" x .56")
|
|
Operating Range:
|
>1.5km (Full Range)
|
|
Weight:
|
16.8g (.59 oz)
|
|
RSSI output:
|
analog voltage output (0~3.3V)
|
|
Operating Voltage Range:
|
4V-10.0V
|
|
Operating Current:
|
100mA@5V
|
