Quick Details
-
Max. Loading Capacity:
-
70%
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOLIMILL
-
Voltage:
-
220-660V
-
Dimension(L*W*H):
-
Different
-
Power (kW):
-
4 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Applicantion:
-
chemical, food line
-
Production capacity:
-
95%
-
Automatic Grade:
-
Semi-Automatic
-
Power(W):
-
4-110kw
-
Certification:
-
CE,ISO
Quick Details
-
Barrel Volume (L):
-
300 L
-
Max. Loading Volume (L):
-
210 L
-
Range of Spindle Speed(r.p.m):
-
12 - 65 r.p.m
-
Max. Loading Capacity:
-
70%
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOLIMILL
-
Voltage:
-
220-660V
-
Dimension(L*W*H):
-
Different
-
Power (kW):
-
4 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Applicantion:
-
chemical, food line
-
Production capacity:
-
95%
-
Automatic Grade:
-
Semi-Automatic
-
Power(W):
-
4-110kw
-
Certification:
-
CE,ISO
Washing Powder Making Machine/washing Powder Mixer/detergent Powder Making Machine
Main Usage
JB series Ribbon Mixer is mainly comprised of mixing barrel, spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
Specialty
JB series Ribbon Mixer is a new researched and new high-efficiency mixer. It is mix solid and dry material
Technical Parameters
|
Model |
JB-300 |
JB-500 |
JB-1000 |
JB1500 |
JB-2000 |
JB3000 |
JB-4000 |
JB6000 |
JB-8000 |
JB-10000 |
|
Barrel volume(L) |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
4000 |
6000 |
8000 |
10000 |
|
Loading volume(L) |
100-180 |
200-300 |
400-600 |
600-900 |
800-12000 |
1200-1800 |
1600-2400 |
2400-3600 |
3200-4800 |
4000-6000 |
|
Mixing time (Min) |
8-20 |
8-20 |
8-20 |
8-20 |
8-20
|
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
|
Blender Motor (KW) |
3-5.5 |
4-11 |
7.5-15 |
11-18.5 |
18.5-30 |
18.5-30 |
22-37 |
37-55 |
37-55 |
45-75 |
|
Weight kg |
510 |
920 |
1450 |
1950 |
3160 |
3300 |
3620 |
5400 |
6880 |
7900 |
|
Material |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |

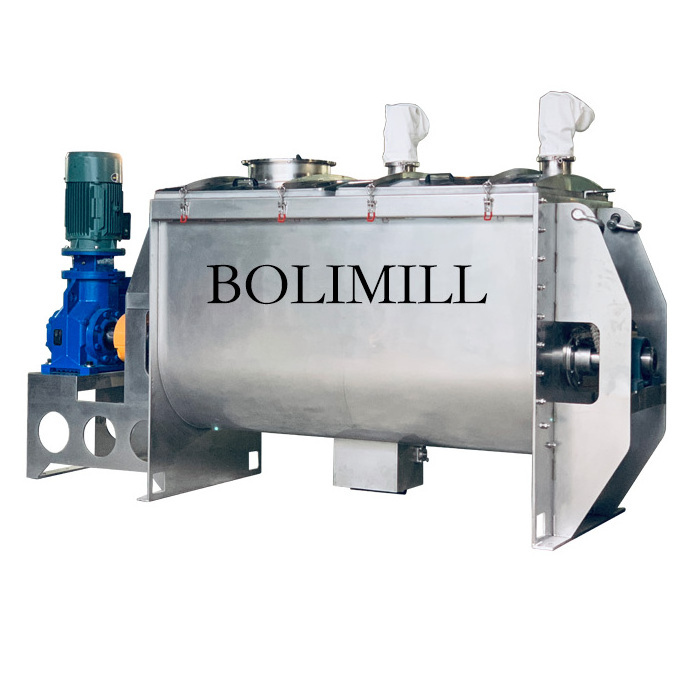

Detail Pictures of JB Series Washing Powder Making Machine/washing Powder Mixer/detergent Powder Making Machine
