Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
PC-360100
-
Output Frequency:
-
50/60hz
-
Output Current:
-
10a
-
input:
-
AC 110V-240V 50-60Hz
-
output:
-
36V 10A 360W
-
output type:
-
DC
-
warranty:
-
3 years
-
usage:
-
high power required equipment
-
material:
-
100% PC
-
size:
-
220(L)*110(W)*55(H)mm
-
ac cable:
-
AU, US, EU, US plug for choose
-
protection:
-
SCP/OVP/OCP/OTP
-
Efficiency:
-
88%
Quick Details
-
Input Voltage:
-
100-240v ac
-
Output Voltage:
-
36v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
PC-360100
-
Output Frequency:
-
50/60hz
-
Output Current:
-
10a
-
input:
-
AC 110V-240V 50-60Hz
-
output:
-
36V 10A 360W
-
output type:
-
DC
-
warranty:
-
3 years
-
usage:
-
high power required equipment
-
material:
-
100% PC
-
size:
-
220(L)*110(W)*55(H)mm
-
ac cable:
-
AU, US, EU, US plug for choose
-
protection:
-
SCP/OVP/OCP/OTP
-
Efficiency:
-
88%

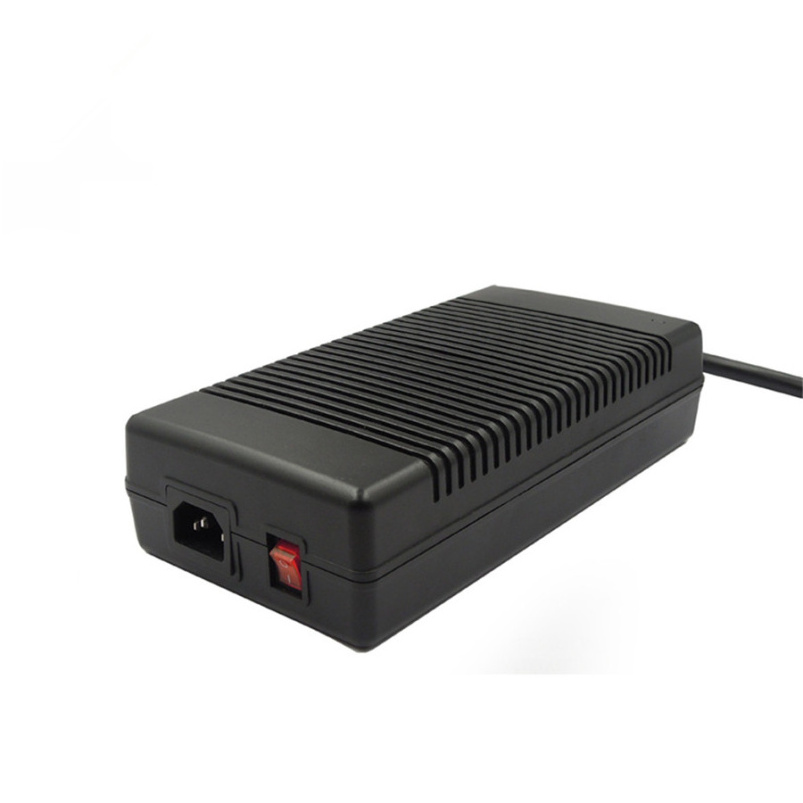

Universal 100-240VAC to 360watt 36volt 10amp switching power supply 12v 24v 36v 3a 5a 9a ac dc power adapter
Product Feature
No Fan Inside,Low Noise
High Efficiency with PFC function
UL CE FCC RoHS CB PSE Approved
With PC material , it’s high temperature resistance and flame retardant
With 4 protections : Short Circuit Protection ; Over Voltage Protection ;Over Current Protection ; Over temperature protection
Real power,full load aging testing,100% loading testing.
C14,C6,C8 Optional
Product Description
|
Input
|
Voltage Range
|
90~264Vac(Normal Reated Input Voltage is 100~240Vac)
|
|
|
Frequency Range
|
47/63Hz
|
|
|
Efficiency
|
88%min
|
|
Output
|
DC Voltage
|
36V
|
|
|
Rated Current
|
10A
|
|
|
Rated Power
|
360W
|
|
|
Voltage Tolerance
|
±5%
|
|
|
Line Regulation
|
±1%
|
|
|
Load Regulation
|
±5%
|
|
Environment
|
Working Temp.
|
0~+40℃
|
|
|
Working Humidity
|
20~85% RH non-condensing
|
|
|
Storange Temp., Humidity
|
-20~+75℃, 10~90%RH
|
|
OTHERS
|
Certificates
|
UL CE RoHS FCC CB SAA etc.
|
|
|
PACKING
|
Brown paper box
|
Details Images
Product Certificates:
Pengchu product with international approval.
US Market: UL FCC, ETL,DoE Level VI Efficiency,
EU Market: CE CB RoHS, ERP
UK Market: CE CB, ERP
AU Market: SAA C-tick
JP Market: PSE
KR Market: KC
|
Phenomenon
|
Standard
|
|
|
UL
|
UL 62368 (UL No.: E499459)
|
|
|
CB
|
IEC 62368-1:2014
|
|
|
CB
|
IEC 60950
|
|
|
CE
|
EN 60335
|
|
|
Medical
|
EN 60601
|
|
|
CE
|
EN 60950
|
|
|
CE
|
EN 61347
|
|
|
CE
|
EN 61558
|
|
|
CE
|
EN 62368
|
|
|
PSE
|
J60065 / J55013/J55023/J3000
|
|
|
SAA
|
AS/NZS 62368
|
|
|
|
||
This Plastic Shell of Power Supply Suit for This Model:
|
No.
|
Model:
|
Output Voltage
|
Output Current
|
Output Power
|
Net Weight
|
|
1
|
PC-050240
|
5V
|
24A
|
120W
|
1430g
|
|
2
|
PC-050260
|
5V
|
26A
|
130W
|
1430g
|
|
3
|
PC-050280
|
5V
|
28A
|
140W
|
1430g
|
|
4
|
PC050300
|
5V
|
30A
|
150W
|
1430g
|
|
5
|
PC-120220
|
12V
|
22A
|
265W
|
1430g
|
|
6
|
PC-120250
|
12V
|
25A
|
300W
|
1430g
|
|
7
|
PC-120280
|
12V
|
28A
|
340W
|
1430g
|
|
8
|
PC-120300
|
12V
|
30A
|
360W
|
1430g
|
|
9
|
PC-180150
|
18V
|
15A
|
270W
|
1430g
|
|
10
|
PC-180200
|
18V
|
20A
|
360W
|
1430g
|
|
11
|
PC-190160
|
19V
|
16A
|
300W
|
1430g
|
|
12
|
PC-240110
|
24V
|
11A
|
265W
|
1430g
|
|
13
|
PC-240120
|
24V
|
12A
|
290W
|
1430g
|
|
14
|
PC-240130
|
24V
|
13A
|
310W
|
1430g
|
|
15
|
PC-240140
|
24V
|
14A
|
340W
|
1430g
|
|
16
|
PC-240150
|
24V
|
15A
|
360W
|
1430g
|
|
17
|
PC-2401667
|
24V
|
16.67A
|
400W
|
1430g
|
|
18
|
PC-360080
|
36V
|
8A
|
290W
|
1430g
|
|
19
|
PC-360090
|
36V
|
9A
|
330W
|
1430g
|
|
20
|
PC-360100
|
36V
|
10A
|
360W
|
1430g
|
|
21
|
PC-360111
|
36V
|
11.1A
|
400W
|
1430g
|
|
22
|
PC-480060
|
48V
|
6A
|
290W
|
1430g
|
|
23
|
PC-480066
|
48V
|
6.66A
|
320W
|
1430g
|
|
24
|
PC-480075
|
48V
|
7.5A
|
360W
|
1430g
|
|
25
|
PC-480083
|
48V
|
8.3A
|
400W
|
1430g
|
