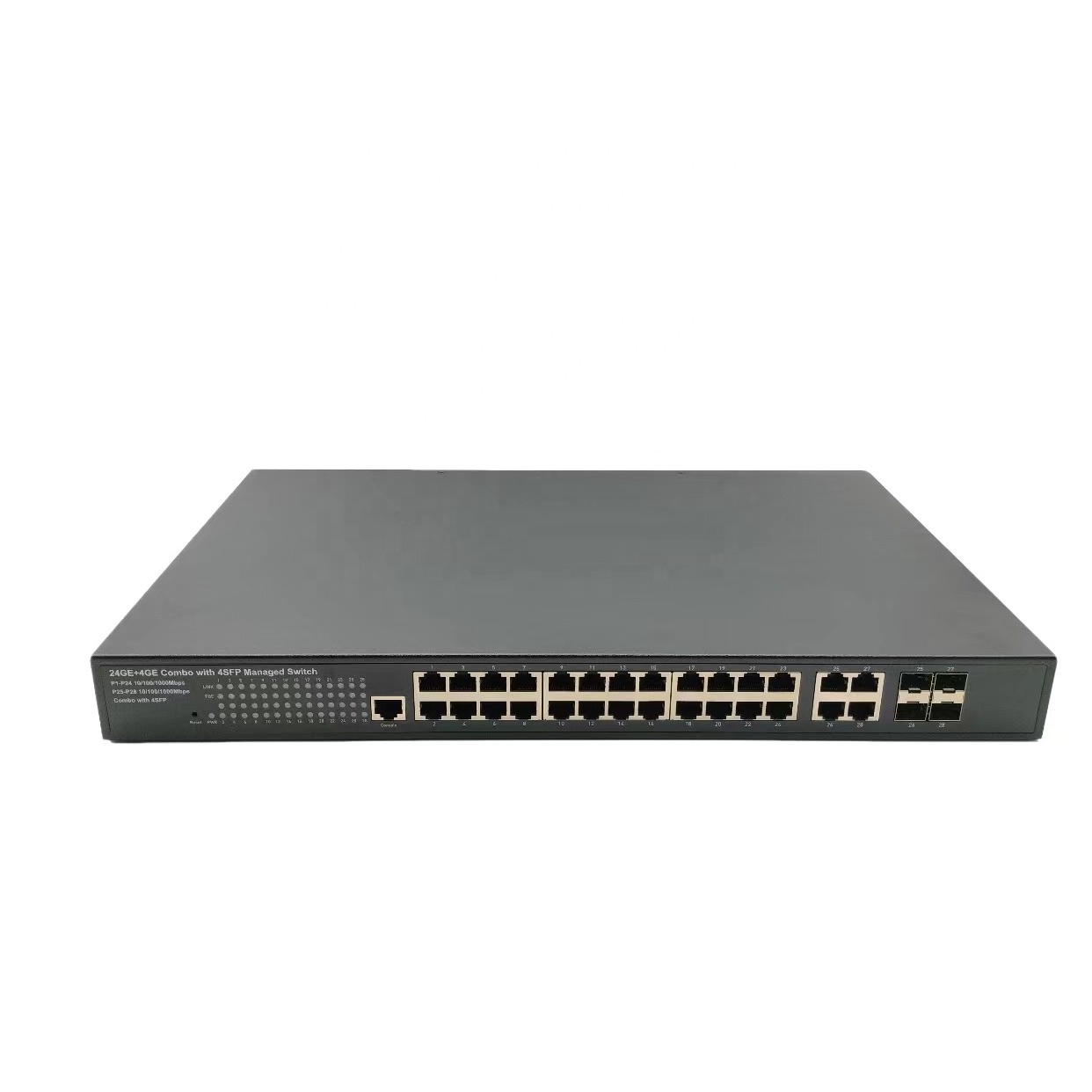

24 port gigabit managed poe switch with 4 x 10/100/1000Mbps RJ45 SFP combo switches

24 port gigabit managed poe switch with 4 x 10/100/1000Mbps RJ45 SFP combo switches

FOB Reference Price: Get Latest Price

≥1 Pieces

US $127

≥50 Pieces

US $113

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: L2 PoE switch

Material:: Metal housing

port-1:: 24*10/100/1000M POE

port-2:: 4x10/100/1000M SFP

port-3:: 4x10/100/1000M RJ45

Power Input:: AC 100~240VAC, 50/60Hz

Power supply:: 400W

software:: support customized service

Warranty:: 3 Years

POE Agreement:: IEEE802.3af/at

Quick Details

Brand Name:: Thinkwind

Place of Origin:: Guangdong, China

Model Number:: TW-M824GP-4G4SFP

Type:: L2 PoE switch

Material:: Metal housing

port-1:: 24*10/100/1000M POE

port-2:: 4x10/100/1000M SFP

port-3:: 4x10/100/1000M RJ45

Power Input:: AC 100~240VAC, 50/60Hz

Power supply:: 400W

software:: support customized service

Warranty:: 3 Years

POE Agreement:: IEEE802.3af/at

24 port gigabit managed poe switch with 4 x 10/100/1000Mbps RJ45 SFP combo switches

Model No.:TW-M824GP-4G4SFP

Physical Specification

Physical Specification	Description
Performance • Switching Capacity: 56Gbps • Throughput: 41.66Mpps • MAC Capacity: 8K
Hardware • Flash Memory: 128MB • DRAM: 1GB
Interface	• 24-Port 10/100/1000M Base-T	• 4-Port 1G Base-R(SFP) combo with 4 RJ45
	• 1-Port Console(With RJ-45)
Power	• Input:AC 100~240VAC, 50/60Hz	• Power Consumption: 30W
PoE	• Max PoE Power Budget: 400W	• Support 24-Ports 10/100/1000 802.3af/at Base-T,
	• 15.4W simultaneously on 24 ports	30W simultaneously on 12 ports
Environmental	• Operating Temperature: 0~40℃	• Operating Humidity: 20~85%RH (Non-Condensing)
	• Storage Temperature: -20~70℃	• Storage Humidity: 5~95%RH (Non-Condensing)
Mechanical • Dimension: 440(W) x 44(H) x 260(D)mm • Weight:4kg
Air Flow • Fanless natural cooling

Software Parameter

Features	Description
Status	• System Information	• Link Aggregation
	• Logging Message	• MAC Address Table
	• Port
Network	• DNS
	• Hosts
	• System Time
Port	• Port Setting	• EEE	• Protected Port
	• Error Disabled	• Jumbo Frame	• Storm Control
	• Link Aggregation	• Port Security
	• POE Port Setting
POE Setting	• POE Port Timer Setting
VLAN	• VLAN	• Protocol VLAN	• Surveillance VLAN
	• Voice VLAN	• MAC VLAN	• GVRP
MAC Address Table	• Dynamic Address	• Filtering Address
	• Static Address	• Port Security Address
Spanning Tree	• Property	• MST Instance	• Statistics
	• Port Setting	• MST Port Setting
ERPS	• Property
	• ERSP Instance
Lookback	• Lookback Config
Discovery LLDP	• Property	• Packet View	• Statistics
	• Port Setting	• Local Informantion
	• MED Network Policy	• Neighbor
DHCP	• Property	• VLAN IF AddressGroup Setting	• Client Static Binding Table
	• IP Pool Setting	• Client List
Multicast	• General	• MLD Snooping
	• IGMP Snooping	• MVR
Routing	• IPV4 Management and Interfaces
	• IPV6 Management and Interfaces
Security	• RADIUS	• Authentication Manager	• Dos
	• TACACS+	• Port Security	• Dynamaic ARP Inspection
	• AAA	• Protected Port	• DHCP Snooping
	• Management Access	• Storm Control	• IP Source Guard
ACL	• MAC ACL	• IPV4 ACE	• ACL Binding
	• MAC ACE	• IPV6 ACL
	• IPV4 ACL	• IPV6 ACE
Qos	• General
	• Rate Limit
Diagnostics	• Logging	• Traceroute	• UDLD
	• Mirroring	• Copper Test
	• Ping	• Fiber Module
Management	• User Account	• Configuration	• RMON
	• Firmware	• SNMP
