- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
Laidong
-
Weight:
-
1200 KG
-
Product name:
-

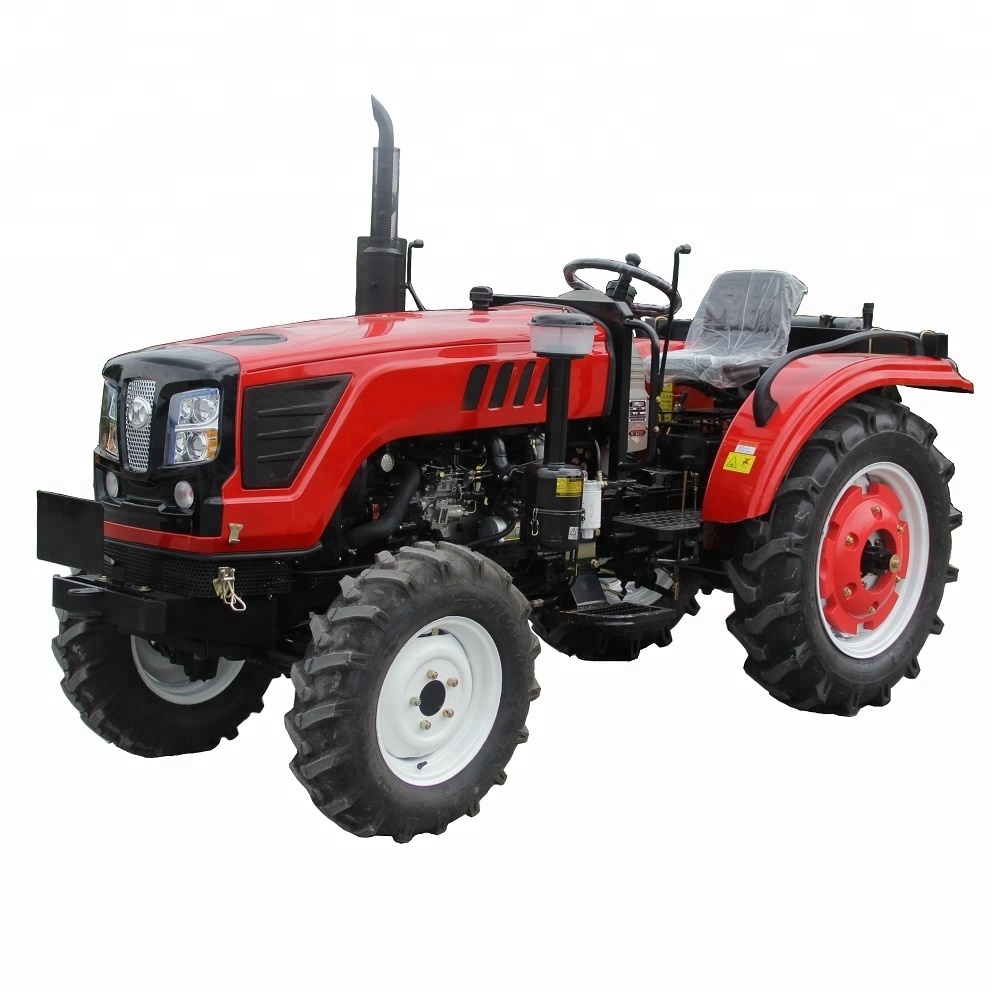

Huaxia tracktor tractor
-
Color:
-
Any color
-
Clutch:
-
Single-stage Clutch
-
Delivery time:
-
20 Days
-
Package:
-
Iron Frame
-
Payment Terms:
-
T/T
-
Options:
-
Air brake, multi valve, roll bar, sun-shade
-
Implements:
-
Plough Harrow Cultivator
-
OEM:
-
Available
Quick Details
-
Rated Power (HP):
-
25.7kw
-
Brand Name:
-
HUAXIA
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Laidong
-
Weight:
-
1200 KG
-
Product name:
-
Huaxia tracktor tractor
-
Color:
-
Any color
-
Clutch:
-
Single-stage Clutch
-
Delivery time:
-
20 Days
-
Package:
-
Iron Frame
-
Payment Terms:
-
T/T
-
Options:
-
Air brake, multi valve, roll bar, sun-shade
-
Implements:
-
Plough Harrow Cultivator
-
OEM:
-
Available
Product Description
This series is middle horsepower tractor, which directly connected with its engine. Jaw type different lock can improve the
pass-ability. Hydraulic output interface can make direct connection with the dump trailer. This series tractor can have many different configurations according to customized demands: single stage clutch or double stage clutch, (4+1)*2 eight shifts, two speed PTO, fixed or adjusted tread
pass-ability. Hydraulic output interface can make direct connection with the dump trailer. This series tractor can have many different configurations according to customized demands: single stage clutch or double stage clutch, (4+1)*2 eight shifts, two speed PTO, fixed or adjusted tread
Sales territory:
regions like Europe, South America and Australia, Africa and other areas
Matched machines and tools: ploughing tools like disc plough, disc harrow, rotary tiller and cultivator. Optional tools like front loader, backhoe, trailer, mower, rake, spraying machine
Matched machines and tools: ploughing tools like disc plough, disc harrow, rotary tiller and cultivator. Optional tools like front loader, backhoe, trailer, mower, rake, spraying machine
|
HUAXIA TY series tractor(25hp-45hp)
|
|
|
|
|
|
|||||
|
Product model
|
HX254(25hp)
|
HX304(30hp)
|
HX354(35hp)
|
HX404(40hp)
|
HX454(45hp)
|
|||||
|
Wheel drive
|
4×4
|
|
|
|
|
|||||
|
Dimension(L*W*H)
|
3350×1500×1860mm
|
|
|
|
|
|||||
|
Weight
|
1210-1380kg
|
|
|
|
|
|||||
|
Front wheel tread
|
970, 1200, 1300mm adjustable
|
|
|
|
|
|||||
|
Rear wheel tread
|
1000,1200,1300mm unlimited adjustable
|
|
|
|
|
|||||
|
Wheel base
|
1750mm
|
|
|
|
|
|||||
|
Min land clearence
|
330mm
|
|
|
|
|
|||||
|
Gear shifts
|
8F+2R
|
|
|
|
|
|||||
|
Tire size
|
standard tire:6.5-16/9.5-24, bigger tire: 7.5-16/11.2-24
|
|
|
|
|
|||||
|
ENGINE SPECIFICATION
|
|
|
|
|
|
|||||
|
Engine Model
|
JD or LD or XC
|
|
|
|
|
|||||
|
Engine type
|
water cooled, vertical, 4 stroke and direct injection
|
|
|
|
|
|||||
|
Rated power(kw)
|
18.4
|
22.05
|
25.7
|
29.4
|
33.08
|
|||||
|
Rated revolution
|
2400r/min
|
|
|
|
|
|||||
|
Start way
|
electric start
|
|
|
|
|
|||||
|
Transmission
|
(4+1)×2 shifts
|
|
|
|
|
|||||
|
Clutch
|
single chip, dry friction, constant conjunction and doule stage clutch
|
|
|
|
|
|||||
|
PTO speed
|
6 splined 540/720
|
|
|
|
|
|||||
Product images
Packing&Shipping
Complete tractor package
20ft can load 1 unit
40HQ can load 3 units
steel-frame package
20ft can load 8 units
40HQ can load 16 units
Customer Photos
Why Choose Us
1. Factory with 20 years farm tractor manufacturingexperience ensure the products quality.
2.Two years warranty period.
3.For easy-damage parts, we will send you together with the tractor for free.
4. During warranty period, free spare parts for quality-problem spare parts replacement.
5. Multi-selection of configuration.
6. Offer online technological support.
7. Promise super product quality with best price and service
8. Ensure the shortest delivery time.
9. Farm implements factory price only
2.Two years warranty period.
3.For easy-damage parts, we will send you together with the tractor for free.
4. During warranty period, free spare parts for quality-problem spare parts replacement.
5. Multi-selection of configuration.
6. Offer online technological support.
7. Promise super product quality with best price and service
8. Ensure the shortest delivery time.
9. Farm implements factory price only
Procedures of order
Procedures of order:
Step 1: 3-5 working days the payments can arrive at the bank;
Step 2: We need 3 weeks to finish the farm tractors;
Step 3: Quality inspection and testing need 3-5 working days;
Step 4: Local transportation and Customs clearance needs 3-5 days.
Payment terms:30% T/T as deposit, 70% T/T before shippment Procedures of order:
Step 1: 3-5 working days the payments can arrive at the bank;
Step 2: We need 3 weeks to finish the farm tractors;
Step 3: Quality inspection and testing need 3-5 working days;
Step 4: Local transportation and Customs clearance needs 3-5 days.
Payment terms:30% T/T as deposit, 70% T/T before shippment Procedures of order:
Company Introduction
Weifang Huaxia Tractor Manufacturing Co.,Ltd. Is located in the world’s capital of kite and the city of green power-Weifang. It is in the Economic Development Area of Weifang and only 3 kilometers to the expressway station of Weifang West, the traffic is very convenient
The area of the company and its factory is about 200,000 square meters and is one modern private enterprise with research, production and sale. The company has pursued perfect and done things seriously. It has the courage of innovation and has insisted on the production idea of high standard and high quality so its products have been optimized and upgraded constantly. And then the enterprise has developed and grown strong steadily. The company has strong technology force and superior machine and equipments with the auto assembly line which is advanced in China. The products are in strict compliance with the international norms of quality system and have mature guarantee service system so they have adopted 2000 edition ISO9001 international quality management system certificate. Further more, HUAXIA brand products have ever been awarded national patents ten times by the State Intellectual Property Office.
The area of the company and its factory is about 200,000 square meters and is one modern private enterprise with research, production and sale. The company has pursued perfect and done things seriously. It has the courage of innovation and has insisted on the production idea of high standard and high quality so its products have been optimized and upgraded constantly. And then the enterprise has developed and grown strong steadily. The company has strong technology force and superior machine and equipments with the auto assembly line which is advanced in China. The products are in strict compliance with the international norms of quality system and have mature guarantee service system so they have adopted 2000 edition ISO9001 international quality management system certificate. Further more, HUAXIA brand products have ever been awarded national patents ten times by the State Intellectual Property Office.
FAQ
(1). Manufacturer or Trading Company
We are a leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.
(2). MOQ
Mini tractor: 8 units
middle tractor(25-40hp): 2 units
Above 50hp: 1 unit
(3). Spare Parts
Free toolbox and easy damaged parts.
(4). Shippment
We can help you arrange shippment.
(5). Delivery Time
Usually 25 days. In peak season,30-40 days
(6). Warranty Time
Complete service system, 12 months since arrival of destination port
(7). Payment Terms
We accept 30%T/T in advance, and 70% T/T before delivery
(8). Tractor Options
Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
(9). Tractor Logo
We have our own logo. And we also can put your logo for free.
(10). Package and Loading
1.complete tractor package: 2 units/20GP, 4 units/40HQ
2.Iron Frame Package: 8 units/20GP, 16 units/40HQ
(11). Tractor Implements
Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your
requirements.
(12). Part supply
Complete Parts Workshop, and can supply all parts
We are a leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.
(2). MOQ
Mini tractor: 8 units
middle tractor(25-40hp): 2 units
Above 50hp: 1 unit
(3). Spare Parts
Free toolbox and easy damaged parts.
(4). Shippment
We can help you arrange shippment.
(5). Delivery Time
Usually 25 days. In peak season,30-40 days
(6). Warranty Time
Complete service system, 12 months since arrival of destination port
(7). Payment Terms
We accept 30%T/T in advance, and 70% T/T before delivery
(8). Tractor Options
Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
(9). Tractor Logo
We have our own logo. And we also can put your logo for free.
(10). Package and Loading
1.complete tractor package: 2 units/20GP, 4 units/40HQ
2.Iron Frame Package: 8 units/20GP, 16 units/40HQ
(11). Tractor Implements
Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your
requirements.
(12). Part supply
Complete Parts Workshop, and can supply all parts
