Quick Details
-
Output Power:
-
500w or 1000 watt
-
Frequency:
-
87~108mhz
-
RF output impedance:
-
50Ω
-
parasitic amplitude modulation noise:
-
-60db
-
Input interface:
-
XLR, AES/EBU
-
Output interface:
-
L29-50K
-
Working temperature:
-
-20~+50℃
-
Deviation (100% modulation):
-
±75khz
-
warranty:
-
5 years
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Shineco
-
Model Number:
-
SNK-7131-I
-
Output Power:
-
500w or 1000 watt
-
Frequency:
-
87~108mhz
-
RF output impedance:
-
50Ω
-
parasitic amplitude modulation noise:
-
-60db
-
Input interface:
-
XLR, AES/EBU
-
Output interface:
-
L29-50K
-
Working temperature:
-
-20~+50℃
-
Deviation (100% modulation):
-
±75khz
-
warranty:
-
5 years

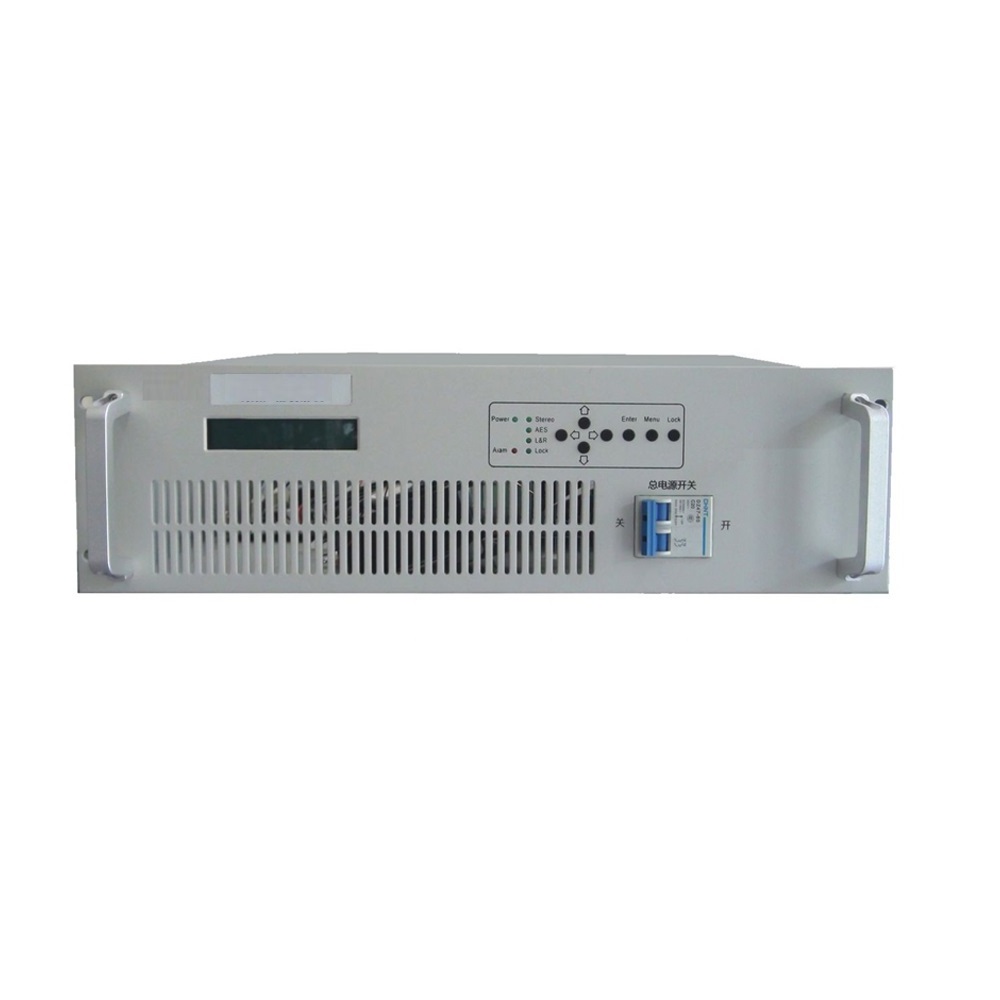

Digital Broadcasting Equipment 500w/500 watt FM Transmitter
Welcome to add my skype to get more details:Jacky.shineco
Outline
SNK-7313-I (500 Watt) is Shineco’s newest generation of FM audio transmitter with low and medium power. It adopts advanced third generation of FM modulation technologies: digital signal processing (FPGA) and digital frequency synthesis technology (DAC). SNK-7313-I takes use of the advantage of digital audio processing technology to provide users a CD quality hearing experience with high linear and high gain LDMOS tube amplifier module.
Key Features
* Fully complying with national standard (GB/T4311-2000) and industrial standard (GY/T169-2001)
* Adopt high gain and high linear LDMOS tube amplifier module design
* Adopt international advanced digital signal processingtechnology (FPGA) for audio encoding
* Support AGC function with sustained power output (±0.1dB) to ensure the transmitter a good stability and reliability
* Adjustable output power as needed (25W~500W)
* Low power consumption and super linear design to improve the transmission power, and reduce the nonlinear distortion
* LED on the front panel supporting alarm and signal monitor
* High-efficiency power supply with wide range of voltage (AC100~264V), suitable for different working condition
* Equiped with multiple lightning protection measures
* Support fault self-diagnosis and self-protection
* Air-cooled system with low consumption and low noise
* Multi lightning protection measures, good protection for whole equipment
* Full digital front panel control, easy operation
* 24-hour working unmanned, user friendly design
* Two Transmitters can be connected simultaneously by Coaxial switch, and one for back up
Technical Specifications
|
S/No. |
Item |
Unit |
Technical Index |
Industrial Standard |
Remark |
|
|
1 |
Output Power |
W |
500 |
-- |
|
|
|
2 |
Frequency |
MHz |
87~108 |
-- |
|
|
|
|
RF output impedance |
Ω |
50 |
|
|
|
|
4 |
Sparious Radiation |
dB |
<-60 (<1mW, Power≥25W) <-40 (<25µW, Power<25W) |
-73.8(0.4mW) |
|
|
|
5 |
parasitic amplitude modulation noise |
dB |
£-60 |
£-50 |
|
|
|
6 |
Pilot frequency deviation |
Hz |
±1 |
±1 |
|
|
|
7 |
Deviation (100% modulation) |
kHz |
±75 |
—— |
|
|
|
8 |
pre-emphasis |
µs |
50 |
—— |
|
|
|
|
Input Impedance |
KΩ |
10 |
|
|
|
|
9 |
Distortion (100% modulation) |
L |
% |
<0.1 |
<0.5 |
|
|
R |
||||||
|
10 |
Frequency response (without emphasis, de-emphasis) |
L |
dB |
±0.1 |
±0.5 |
|
|
R |
||||||
|
Stereo |
dB |
±0.1 |
|
|
||
|
11 |
Frequency response (with emphasis, de-emphasis) |
L |
dB |
±0.1 |
±1 |
|
|
R |
||||||
|
12 |
SNR (100% modulation) |
L |
dB |
³75 |
³60 |
|
|
R |
||||||
|
13 |
L/R Separation |
L R |
dB |
>65 |
>40 |
|
|
R L |
||||||
|
14 |
L/R level diffrence |
dB |
<0.1 |
<0.4 |
|
|
Specifications and Environment Conditions
|
Item |
Item |
Technical Requirements |
Remark |
|
Output and Input Specifications |
Input interface |
XLR, AES/EBU |
|
|
Output interface |
L29-50K |
|
|
|
Environment condition |
Working temperature |
-20~+50℃ |
|
|
Storage temperature |
-30~+75℃ |
|
|
|
Relatively humidity |
<95% (25℃ no condensation) |
|
|
|
Cooling mode |
inside forced air cooling |
|
|
|
atm press |
86~106kPa |
|
|
|
power supply |
AC, 100~264V/50Hz |
|
|
|
machine room |
Less dust, shock-free |
|
|
|
Demission |
454×440×129.5mm (L×W×H) |
19 Inches |
