Quick Details
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AK-MACHINE
-
Year:
-
2019
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1908*1280*1920mm
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Name:
-
5 Gallon Blow Molding Machinery For PET/PC/PE Bottles 1 Cavity
-
Capacity:
-
80BPH
-
Max volume:
-
5-6 gallon
-
Cavity:
-
1cavities
-
type kind:
-
5 Gallon Blow Molding Machine
-
Machine type:
-
blow moulding machine
-
Key words:
-
blow moulding machine
-
Weight:
-
2000kg
-
Power:
-
25kw
-
Local Service Location:
-
United States, Philippines
-
After Warranty Service:
-
Spare parts, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE,ISO
-
Marketing Type:
-
Ordinary Product
-
Blow Moulding Type:
-
Stretch Blow Moulding
Quick Details
-
Neck Diameter(mm):
-
80 mm
-
Max.Bottle Diameter(mm):
-
300 mm
-
Max.Bottle Height(mm):
-
500 mm
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AK-MACHINE
-
Year:
-
2019
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1908*1280*1920mm
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Name:
-
5 Gallon Blow Molding Machinery For PET/PC/PE Bottles 1 Cavity
-
Capacity:
-
80BPH
-
Max volume:
-
5-6 gallon
-
Cavity:
-
1cavities
-
type kind:
-
5 Gallon Blow Molding Machine
-
Machine type:
-
blow moulding machine
-
Key words:
-
blow moulding machine
-
Weight:
-
2000kg
-
Power:
-
25kw
-
Local Service Location:
-
United States, Philippines
-
After Warranty Service:
-
Spare parts, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE,ISO
-
Marketing Type:
-
Ordinary Product
-
Blow Moulding Type:
-
Stretch Blow Moulding

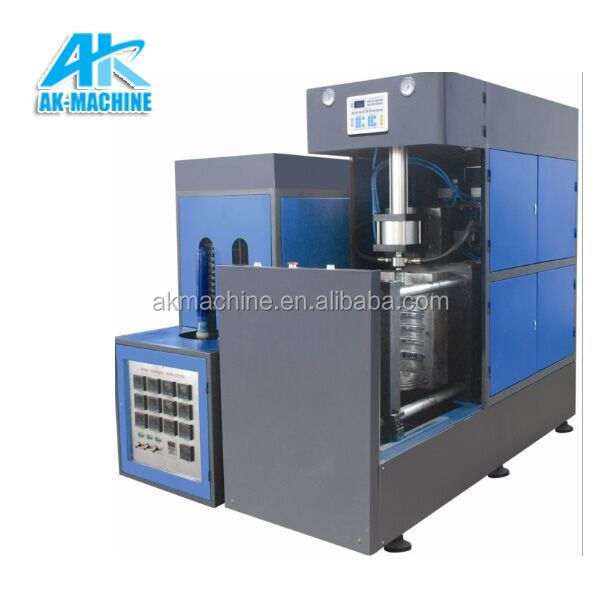

5 Gallon Blow Molding Machinery For PET/PC/PE Bottles 1 Cavity 20L Plastic Bottle Making Machine
Features
1. Special design for PET Gallon Bottle up to 6 Gallon
2. Produce wide mouth jar up to 25 liter with neck size up to 80mm.
3. Using Infrared reheat units to achieve uniform heating throughout the wall of preform
4. Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform
5. Special designed fan-cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
6. Water cooling system ensures the quality of preform neck.
7. Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle
|
TYPE |
ITEM |
UNIT |
AK-31G |
|
Container |
Product material |
/ |
PET/PC/PE |
|
Container volume |
L |
10-25 (1-cavity) |
|
|
Theoretic output |
Psc/hr |
5Gallon: 80 |
|
|
Preform length |
M |
15-460 |
|
|
Preform inner diameter |
Mm |
15-200 |
|
|
Molding |
Max mold plate dimendion (L×W) |
Mm |
420×500 |
|
Max mold thickness |
Mm |
400 |
|
|
Clamping force |
KN |
100 |
|
|
Mold opening stroke |
Mm |
330 |
|
|
Main machine electricity |
Power |
M |
15 |
|
Voltage |
V/Hz |
380-240-110/50-60(3 phase) |
|
|
Machine size and weight |
Main machine |
M |
1.55×0.82×2.00 |
|
Main machine weight |
T |
1 |
|
|
Heater (L×W×H) |
T |
2.42×0.65×1.60 |
|
|
Heater weight |
T |
0.38 |
