Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9CE or Other
-
Model Number:
-
FS-80
-
Type:
-
300kg Heavy Duty Floor Spring
-
Body Material:
-
pressed iron
-
Panel Material:
-
SUS304
-
Panel Thickness:
-
1.2mm
-
Finish:
-
Satin
-
Size:
-
341*78*60mm
-
Capacity:
-
300kg
-
Max opening degree option:
-
180 degree or 360 degree
-
Rotate degree option:
-
Hold open 90 /180° or not stop
-
Pivot:
-
Dorma-type
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
NONE
-
Application:
-
Office Building
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9CE or Other
-
Model Number:
-
FS-80
-
Type:
-
300kg Heavy Duty Floor Spring
-
Body Material:
-
pressed iron
-
Panel Material:
-
SUS304
-
Panel Thickness:
-
1.2mm
-
Finish:
-
Satin
-
Size:
-
341*78*60mm
-
Capacity:
-
300kg
-
Max opening degree option:
-
180 degree or 360 degree
-
Rotate degree option:
-
Hold open 90 /180° or not stop
-
Pivot:
-
Dorma-type
|

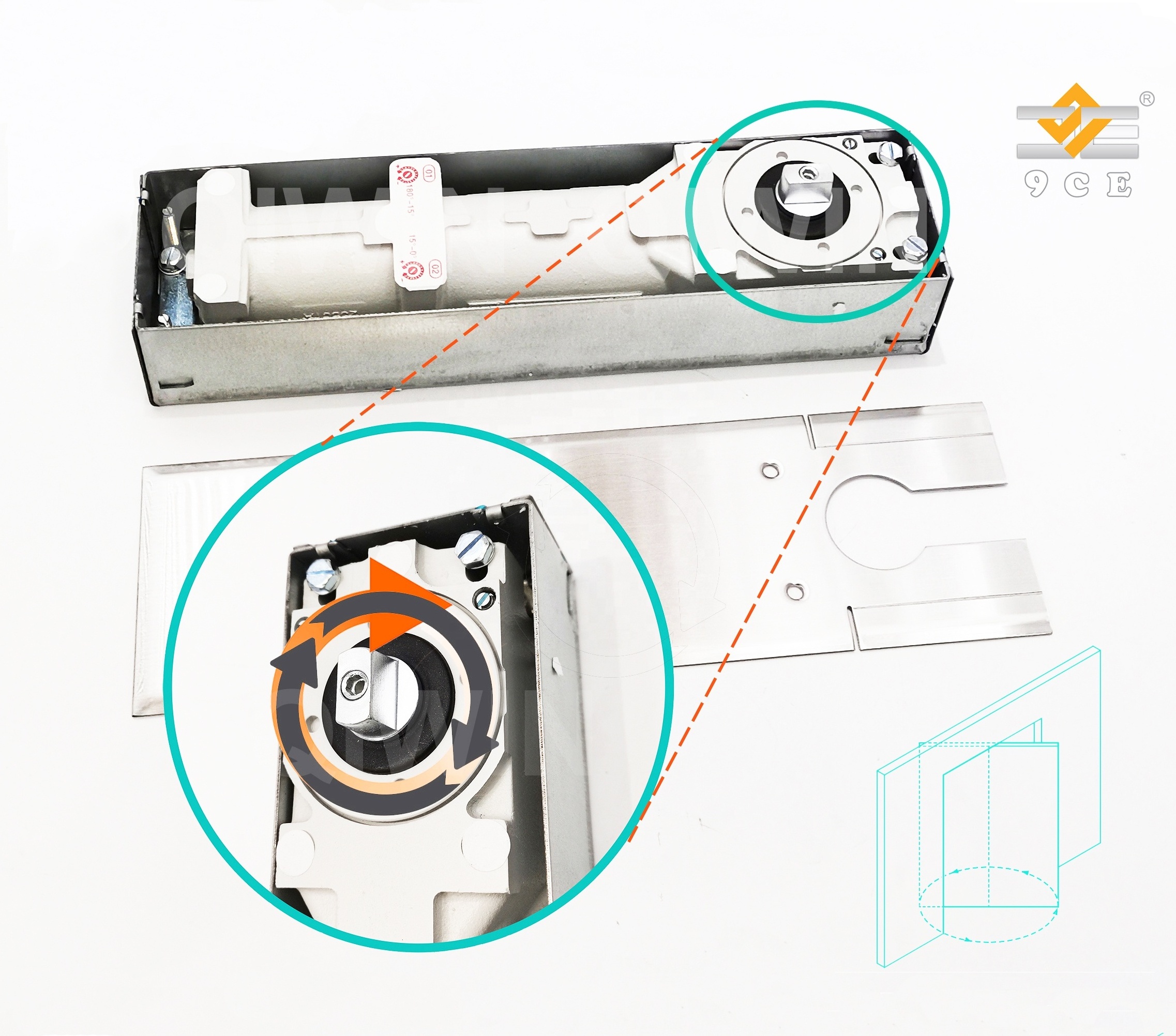

Product Name
|
Floor spring hinge
|
|
|
Brand Name
|
9CE
|
|
|
Product Model
|
FS-80
|
|
|
Product Material
|
Pressed Iron
|
|
|
Panel material
|
SUS304
|
|
|
Panel thickness
|
1.2mm
|
|
|
Max door load
|
300kg
|
|
|
Max opening degree option
|
180 degree or 360 degree
|
|
|
Rotate degree option
|
Hold open：90 /180°, or non stop
|
|
|
Product Size
|
341*78*60mm
|
|
|
Test cycle
|
Switching for 500000 times
|
|
|
Glass Door thickness
|
8-12mm
|
|
|
Function
|
One way open at 180° ,90° and 180° two-way positioning
|
|
|
Application
|
Steel and wooden doors,8-12 toughened glass door
|
|
|
Color
|
Satin
|
|
|
Pivot
|
Dorma-type
|
|
|
*The price of this product does not include tax and freight.
|
|
|
Other parts optional
Installation steps of ground spring:
A. Draw lines to coincide the center of the rotating shaft of the floor spring with the rotating shaft of the door.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the
floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation
coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
A. Draw lines to coincide the center of the rotating shaft of the floor spring with the rotating shaft of the door.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the
floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation
coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
* Company door, office door, each activity room glass door can be applied
