CZJB-205-35 Factory Price 48v 10000w electric bike conversion kit with display

CZJB-205-35 Factory Price 48v 10000w electric bike conversion kit with display

FOB Reference Price: Get Latest Price

≥10 Sets

US $370

≥100 Sets

US $250

≥1000 Sets

US $90

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CZJB, CZJB

Model Number:: CZJB-205/35

Rated voltage:: 36v/48v/60v/72v

Rated power:: 350w-1000w

Wheel size:: 20"-28"

Rated speed:: 25km/h-45km/h

Rated efficiency:: >82%

Open size:: 100mm for front wheel, 135mm for rear wheel

Cable location:: Shaft from left

Spoke hole No.:: 36H

Brake type:: V brake/disc brake

Quick Details

Battery Capacity:: 13.4 Ah

Wheel Size:: 20", 22", 24", 26", 28"

Place of Origin:: Jiangsu, China

Brand Name:: CZJB, CZJB

Model Number:: CZJB-205/35

Rated voltage:: 36v/48v/60v/72v

Rated power:: 350w-1000w

Wheel size:: 20"-28"

Rated speed:: 25km/h-45km/h

Rated efficiency:: >82%

Open size:: 100mm for front wheel, 135mm for rear wheel

Cable location:: Shaft from left

Spoke hole No.:: 36H

Brake type:: V brake/disc brake

Products Description

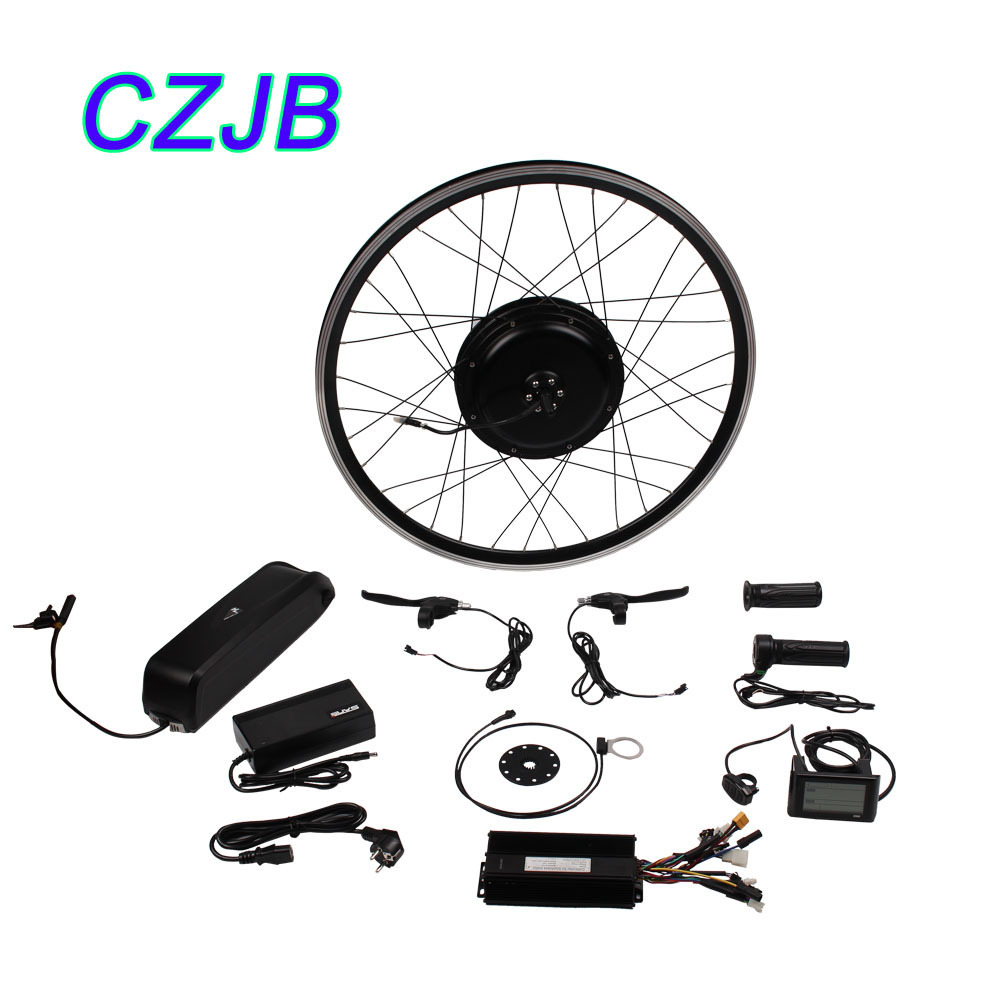

CZJB -205/35 rear 48v 1000w electric bike conversion kit

1.Controller	FOC 12Mosfet,36/48v 28A
2.Brake lever	ebrake,power cut off
4.Pas	1:1 12 magnets
5.Rear gearless brushless hub motor	48v 1000w 135mm dropout ,black,disc brake,200mm 9 pins male waterproof connector,right cable location,hall sensor,,36H*12/13G
6.Display	LCD display
7.throttle	twist throttle
8Rim&spoke	26“，black double rim,black spoke 12G

A.Motor speed can be customized

25km/h is regular speed,if you would like to order,you can contact us,will do new one!Also motor female cable,if you want longer.

B.Wheel size is optional

Our kit regular wheel size is 26",if other wheel size,please contact us.

C.This kit without battery

If you want battery,please contact us.

down tube battery

36V 8.8AH samsung cells

36V 10.4AH samsung cells

36V 11.6AH samsung cells

bottle battery

36V 8.8AH samsung cells
36V 10.4AH samsung cells

36V 11.6AH samsung cells

rear rack battery

36V 11.6AH samsung cells
36V 13AH samsung cells

Details Images

CZJB-205/35 gearless brushless hub motor

48v 1000w

135mm dropout , black,disc brake

200mm 9 pins male waterproof connector

right cable location

hall sensor

36H*12/13G

weight 7kg

Efficiency >=82%

12 MOSFET FOC CONTROLLER

Type : 36/48V 15A Controller
Color : Silver
Dimension : 145*85*42mm
Maximum current : 28±1A
Brake input : Low-Level
Low voltage protection : DC29±1V
Cable length : 110mm

SMART LCD DISPLAY FOR OPTIONAL

Plug : 5 pin
Color : Black
Cable Length : normal cable 1500mm
