Quick Details
-
Product name:
-
welding table
-
Platform material:
-
DIN St52-3 / Gray Iront / 304stainless steel
-
Platform hole diameter:
-
28.10±0.03mm / 16.08 ±0.02mm
-
Platform hole distance:
-
100±0.03mm / 50± 0.02mm
-
Platform planeness:
-
0.1mm/m²
-
Surface finish:
-
quality over 3.2μm
-
Reference grid line:
-
D28 platform: 100X100±0.05mm D16 platform : 50X50±0.05mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANWZB
-
Weight (KG):
-
250
-
Product name:
-
welding table
-
Platform material:
-
DIN St52-3 / Gray Iront / 304stainless steel
-
Platform hole diameter:
-
28.10±0.03mm / 16.08 ±0.02mm
-
Platform hole distance:
-
100±0.03mm / 50± 0.02mm
-
Platform planeness:
-
0.1mm/m²
-
Surface finish:
-
quality over 3.2μm
-
Reference grid line:
-
D28 platform: 100X100±0.05mm D16 platform : 50X50±0.05mm
Products Description

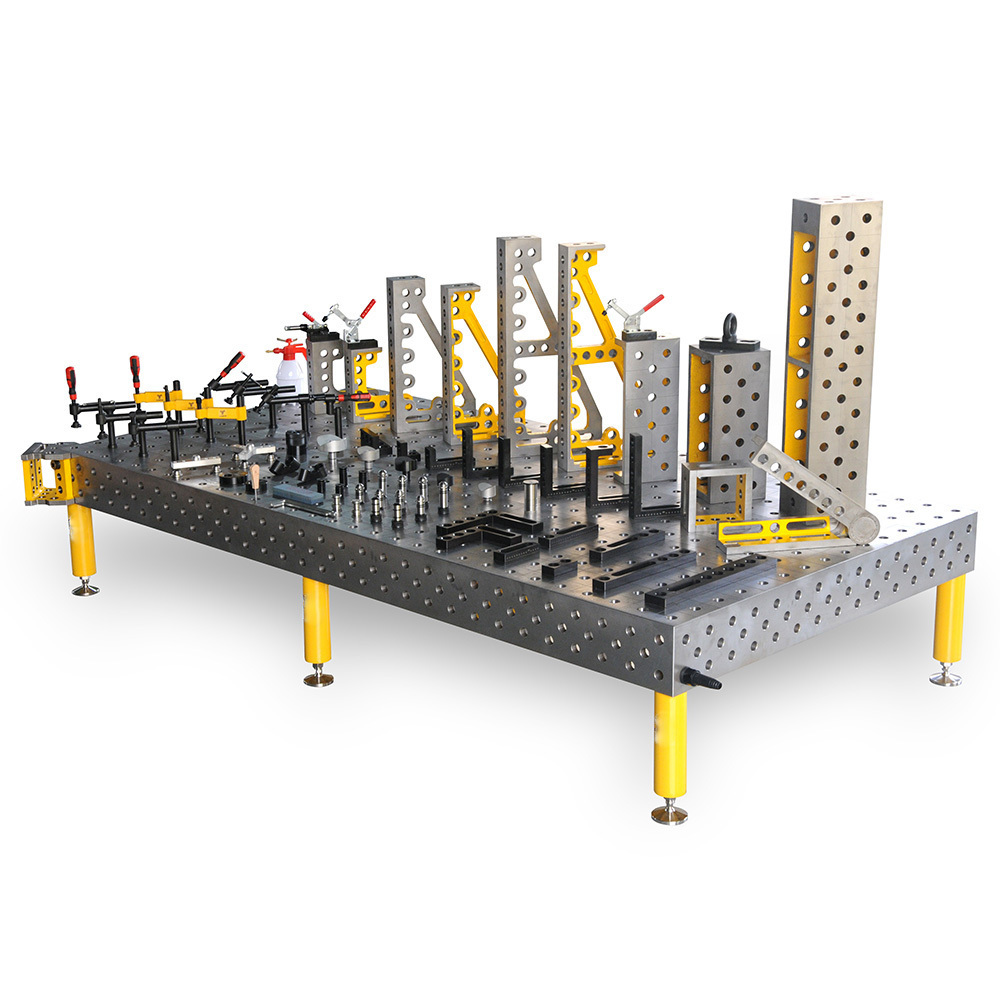

3D FLEXIBLE FIXTURE SYSTEM
It's a new standardized and 3D modular fixture positioning and locking system,based on platform with variety structural form ,equipped with variey of shapes and specifications of the standard structural modules ,each with it's unique positioning connection ,various clamps clamp ,fix on the work platform as required .it can be equipped with hydraulic ,pneumatic,chain and other forns of clamping depend on the requirements .it;s divided into D28 and D16 series .
1、Platform material ：DIN St52-3 / Gray Iront / 304stainless steel2、Platform hole diameter ：φ28.10±0.03mm / φ 16.08 ±0.02mm3、Platform hole distance：100±0.03mm / 50± 0.02mm4、Platform planeness：0.1mm/m²
5、Surface finish: quality over 3.2μm
6、Reference grid line：D28 platform: 100X100±0.05mm
D16 platform : 50X50±0.05mm
7、Surface adge X, Y direction with mm scale line
8、Platform capacity：D28 2T/m² D16 1.2T/m²
NITRIDING HARDENED PLATFORM
Platform of surface hardening by vacuum plasma nitriding /gas carburizing . the ordinary flexible platform can improve its mechanical performance and service performance after treatment, the hardness of surface can reach HRC38-45°, playing the role of surface wear-resisting,rust-preventing and welding slag .
① Wear resistance
② Fatigue resistance
③ Corrosion resistance (rust resistance)
④ Toughness (non-stick slag)
⑤ Increased intensity
Robot Welding Platform
It is a multi-function D16 hole system 2D platform on which positioning and clamping modules can be freely combined .Shorten the clamping time and ensure the precision and quality of product welding.It provides functional modules with high interchangeability, high precision and high speed for robot automatic welding.
1、Platform material ：DIN St52-3 / Gray Iront / 304stainless steel2、Platform hole diameter ：φ 16.08 ±0.02mm3、Platform hole distance：50± 0.02mm4、Platform planeness：0.1mm/m²
5、Surface finish: quality over 3.2μm
6、Reference grid line：50X50±0.05mm
7、Surface adge X, Y direction with mm scale line
8、Platform capacity：1.2T/m²
SANWEI GOOD WELDING STATION
1、With 3D flexible tooling interchangeability, economy and other advantages
2、Improve welding environment in workshop and upgrade 7S manufacturing plant3、 Varieties of small batch products single position, multi - position welding4、New product research and development, technical college students training
1、Platform material ：DIN St52-3 / Gray Iront / 304stainless steel2、Platform hole diameter ：φ 16.08 ±0.02mm3、Platform hole distance：50± 0.02mm4、Platform planeness：0.1mm/m²
5、Surface finish: quality over 3.2μm
6、Reference grid line：50X50±0.05mm
7、Surface adge X, Y direction with mm scale line
8、Platform capacity：1.2T/m²
