Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
HUB
-
Brand Name:
-
Zhi Ou Laser
-
Control System Brand:
-
EZCAD
-
Marking Head Brand:
-
JHC
-
Weight (KG):
-
45 KG
-
Product Name:
-
Lazer Marking Machine
-
Applicable Material:
-
Metal And Some Non-metal
-
Coverage Of Application:
-
Manufacturing Industry
-
Colour:
-
Blue And White
-
Height:
-
1200mm
-
Type:
-
Integrated
-
Displayer:
-
Brand
-
Software Controlled Machine:
-
Software Controlled Machine
-
Laser Head:
-
JHC
-
Marking Speed:
-
7000mm/s
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
HUB
-
Brand Name:
-
Zhi Ou Laser
-
Control System Brand:
-
EZCAD
-
Marking Head Brand:
-
JHC
-
Weight (KG):
-
45 KG
-
Product Name:
-
Lazer Marking Machine
-
Applicable Material:
-
Metal And Some Non-metal
-
Coverage Of Application:
-
Manufacturing Industry
-
Colour:
-
Blue And White
-
Height:
-
1200mm
-
Type:
-
Integrated
-
Displayer:
-
Brand
-
Software Controlled Machine:
-
Software Controlled Machine
-
Laser Head:
-
JHC
-
Marking Speed:
-
7000mm/s
Product Name: 30W Online Laser Marking Machine
Technical Parameters
|
Model |
ZOFL-F30W |
|
Optical Maser Wavelength |
1200m m |
|
Power |
30W |
|
Scanning Speed |
≤7000mm/s |
|
Minimum C haracter |
0.1mm |
|
Repeated Accuracy |
0.0025mm |
|
Marking Range
|
110mm-220mm(Choosable) |
|
Operational Software |
EZCAD_V2 |
|
O perating S ystem |
Windows system |
|
Graphics Format Support |
PLT,DXF,AI,SDT,BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF |
|
W orking P ower S upply |
220V / 50Hz /1.5kVA(Customizable) |
|
Type of cooling |
Air-cooled |
|
Choose accessories |
Various kinds of fixture can be selected, such as online flight platform, multi-station platform, rotary marking platform, etc., to facilitate different workpiece marking operations |

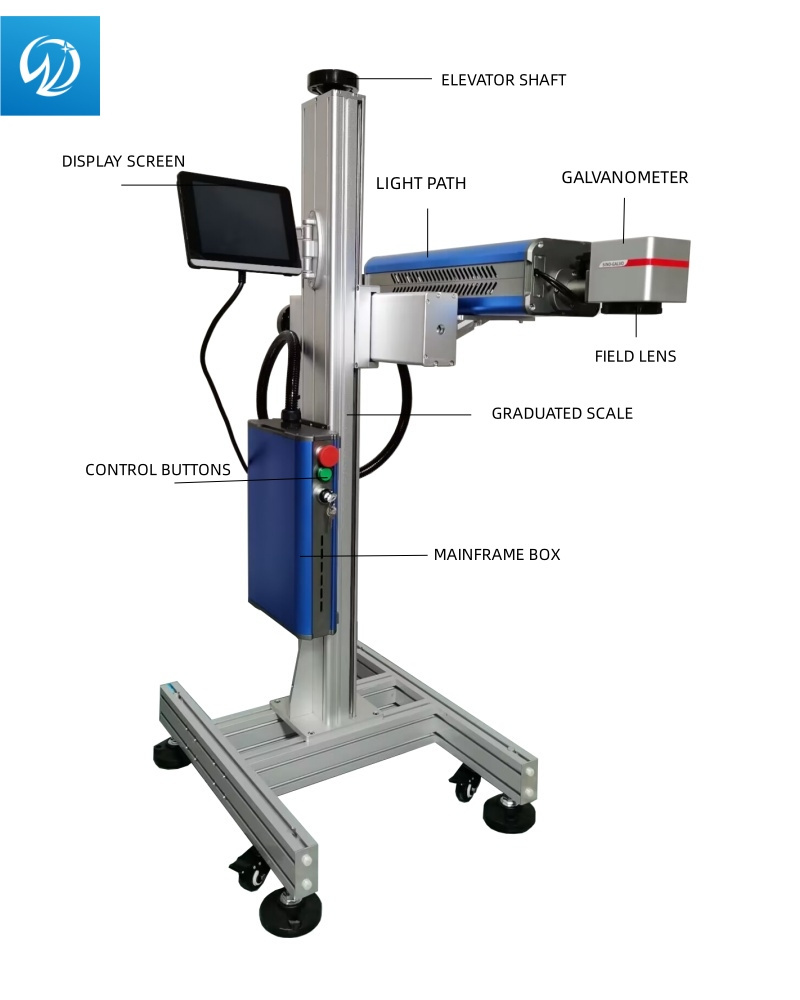

PRODUCT ACCESSORIES
Main A pplicable M aterial
Common M etals ( I ron, C opper, A luminum, M agnesium, Z inc, E tc.) A nd R are M etals ( G old, S ilver, T itanium, etc.) A nd T heir A lloys, M etal O xides; ABS M aterial, I nk, E poxy R esin, etc.; Special S urface T reatment L ayer O f T he A bove M aterials ( P hosphating, A luminum A nodizing, E lectroplating, C oating); The E quipment I s W idely U sed I n T he I dentification P rocess O r S urface T reatment P rocess O f T he A bove M aterial A pplication I ndust
Equipment characteristics
l Laser System: Raycus Laser, Stable Performance
l Scanning Galvanometer System: Full Digital High-speed Photogalvanometer, Scanning Speed Up To 7000mm/s, Scanning Accuracy 0.001mm, High Repeatability, Can Last 24 Hours Uninterrupted Work
l Software Control System: Highly Configured Laser Marking Software And Professional Marking Control Board
l Rich optional functions: shear table (single-dimensional/three-dimensional), manual/electric lifting support/lifting table (including wire rail precision lifting table)/three-dimensional independent table, D50-D200 rotating head, flat rotating table/precision eight-station rotating table, etc. It can realize smooth and fast marking and coding for special-shaped workpieces in different working environments.
l Cooling Configuration: Air Cooling System, No Water Cooling, Smaller Volume
