Quick Details
-
Model Number:
-
BV
-
Brand Name:
-
Runtaida
-
Product name:
-

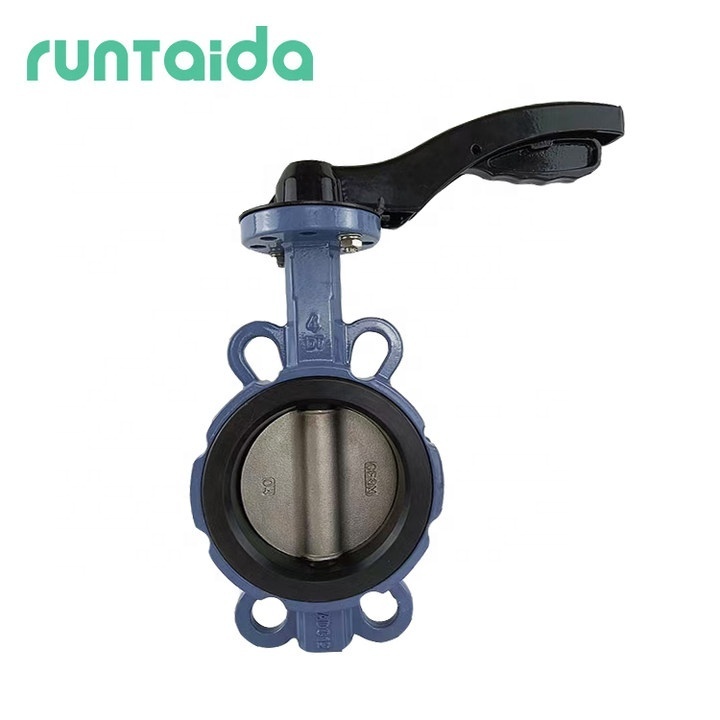

D71x dn80 ductile iron epdm seat hand lever wafer type butterfly valve
-
Size:
-
DN50-DN300
-
Pressure:
-
PN10/16
-
Temperature:
-
-20~120℃
-
Material:
-
Ductile iron,stainless steel
-
Handle material:
-
Aluminum handle
-
Application field:
-
Municipal construction, water treatment, electricity
-
Connection:
-
Wafer
-
Certificate:
-
ISO 9001:2008
-
Packing:
-
Wooden box
Quick Details
-
Port Size:
-
DN50-DN300
-
Warranty:
-
12 months
-
Place of Origin:
-
Henan
-
Model Number:
-
BV
-
Brand Name:
-
Runtaida
-
Product name:
-
D71x dn80 ductile iron epdm seat hand lever wafer type butterfly valve
-
Size:
-
DN50-DN300
-
Pressure:
-
PN10/16
-
Temperature:
-
-20~120℃
-
Material:
-
Ductile iron,stainless steel
-
Handle material:
-
Aluminum handle
-
Application field:
-
Municipal construction, water treatment, electricity
-
Connection:
-
Wafer
-
Certificate:
-
ISO 9001:2008
-
Packing:
-
Wooden box
Products Description
|
Name of product
|
D71x dn80 ductile iron epdm seat hand lever wafer type butterfly valve
|
|
Size
|
DN50-DN300
|
|
Body
|
Carbon steel
|
|
Pressure
|
PN10/16
|
|
Temp
|
-20~120℃
|
|
Suitable medium
|
Water,neutral liquid,etc.
|
|
Application
|
Municipal construction, water conservancy project, electric power, water supply and drainage, water treatment, etc.
|
|
Power
|
Handle,Turbine box,Pneumatic actuator,Ecectric actuator
|
|
Design
|
GB/T12238
|
|
Face to face
|
GB/T12221
|
|
Top flange
|
ISO 5211
|
|
Pressure test
|
GB/T 13927
|
We can provide samples for testing, if you need,
you can contact us on Alibaba.com.
Product Features:
1.Small and light , and easy installation and mintanance. It can be mounted wherever needed.
1.Small and light , and easy installation and mintanance. It can be mounted wherever needed.
2.Compact structure, 90 degree fast switch.
3.Miniminzed operating torque, energy saving.
4.Flow curve tending to straight line. Excellent regulation performance.
5.Long service life Standing the test of tens of thousands opening/closing operations.
6.Bubbles-tight sealing with no leakage under the pressure test.
7.Wide selection of materials, applicable forvarious medium.
Types of butterfly Valves
3.Miniminzed operating torque, energy saving.
4.Flow curve tending to straight line. Excellent regulation performance.
5.Long service life Standing the test of tens of thousands opening/closing operations.
6.Bubbles-tight sealing with no leakage under the pressure test.
7.Wide selection of materials, applicable forvarious medium.
Types of butterfly Valves
If you need other types，pls click here to contact us on alibaba.com!
Product parameter
|
Main size information
|
|
|
|
|
|
|
|
|||||||
|
DN
|
NPS（Inch)
|
H1
|
H2
|
H3
|
ØA
|
ØB
|
L
|
|||||||
|
50
|
2"
|
75
|
129
|
24
|
125
|
110
|
43
|
|||||||
|
65
|
2 1/2"
|
82
|
136
|
24
|
145
|
127
|
46
|
|||||||
|
80
|
3"
|
99
|
153
|
24
|
160
|
145
|
46
|
|||||||
|
100
|
4"
|
110
|
167
|
24
|
190.5
|
170
|
52
|
|||||||
|
125
|
5"
|
125
|
193
|
27
|
216
|
200
|
56
|
|||||||
|
150
|
6"
|
145
|
209
|
27
|
241.3
|
203
|
56
|
|||||||
|
200
|
8"
|
170
|
251
|
30
|
298.4
|
280
|
60
|
|||||||
Datas above are only for reference, If you want to know more details of our products,
pls click here to contact us on alibaba.com!
