LEEYAOO 2024 High Quality Semi Trailer Lift Axle Air Spring Trailer air Suspension

LEEYAOO 2024 High Quality Semi Trailer Lift Axle Air Spring Trailer air Suspension

FOB Reference Price: Get Latest Price

≥3 Pieces

US $1860

≥100 Pieces

US $1855

≥1000 Pieces

US $1850

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Steel

Type:: Air Suspension

Color:: Customer Demands

MOQ:: 3 Pcs

Delivery time:: 7-25 Days

OEM:: Accept OEM

Logo:: Customized Logo

Quick Details

Place of Origin:: Shandong, China

Warranty:: 12 Months

After-sales Service:: Guaranteed replacement within 3 months

Material:: Steel

Type:: Air Suspension

Color:: Customer Demands

MOQ:: 3 Pcs

Delivery time:: 7-25 Days

OEM:: Accept OEM

Logo:: Customized Logo

Product Overview

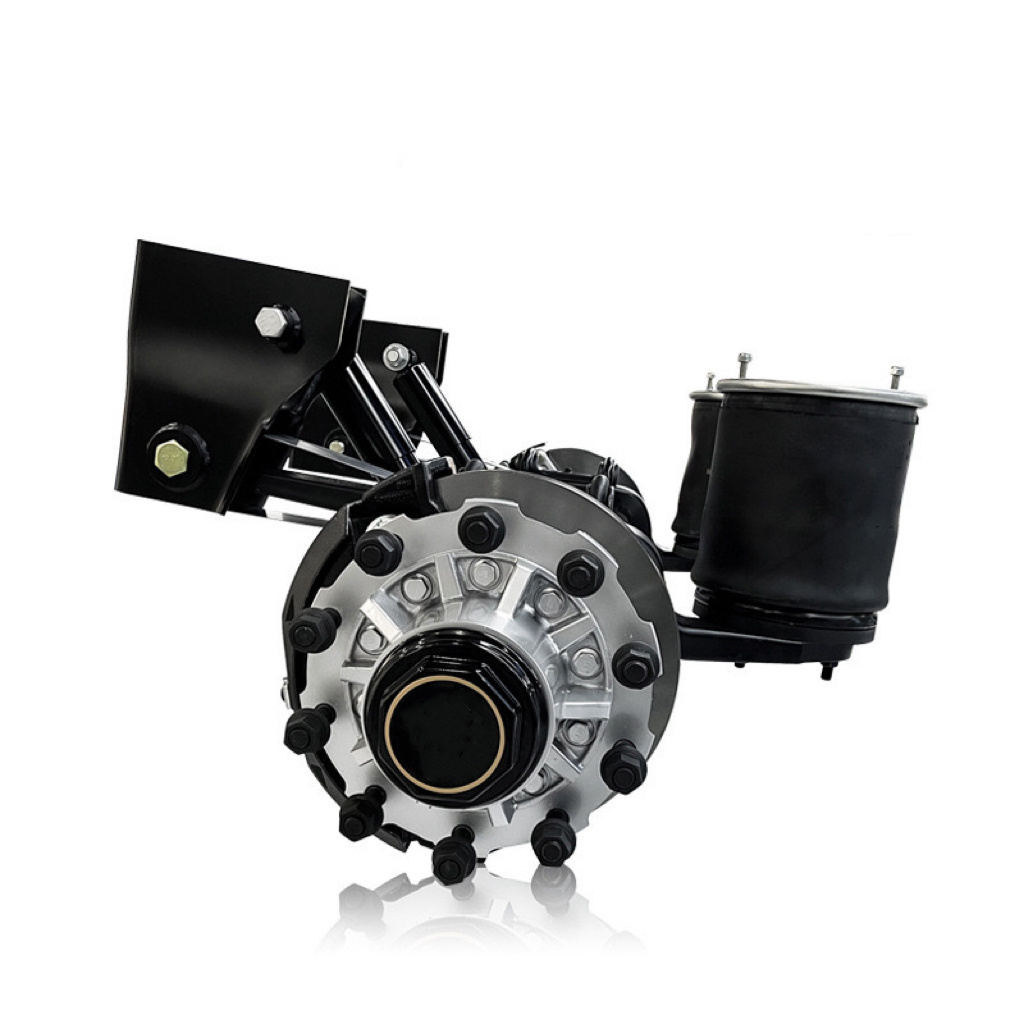

Semi-Trailer Air Suspension

Specially optimized design for different road conditions, partially reinforced, strong and durable. Lightweight design, on the premise of ensuring the rated load, is about 40KG lighter than the single-axis guide arm air suspension. The main beam has a curved design and high-density reinforcement inside to increase the impact. A variety of high-standard air bags and shock absorbers are available, which greatly improves the stability of the air suspension. It is designed and manufactured using advanced European technology, which can provide better reliability and stability under harsh working conditions. It can provide customers with flexible suspension assembly solutions and various pneumatic control solutions.

FEATURES AT A GLANCE

1.The high-standard guide arm designed and manufactured with advanced European technology is suitable for optional accessories of various special models.

2.The special structural design and material treatment of each axle fastening structure, axle mounting seat and other components provide more lasting stability.

3.Optional lifting device can maximize tire life and save fuel consumption and maintenance costs.

Air Suspension for Semi-Trailer

Air Suspension

Trailer parts Air Suspension

PRODUCT SPECIFICATIONS

American Type Technical Parameter Table
Axle Lift	Rated Load(T)	Axle Beam(mm)	Leaf Spring(mm)	Air Bage Spec	L1(mm)	L2(mm)	H1(mm)	H2(mm)	H3(mm)
NO	11	ꬿ127	2-100*38	350	500	380	296	206	230
NO	11	ꬿ127	2-100*38	350	500	380	296	206	335
NO	11	ꬿ127	2-100*38	350	500	380	296	442	335
YES	11	ꬿ127	2-100*38	350	500	360	276	210	257
NO	11	ꬿ127	2-100*38	350/260	500	380	251	400	407
NO	11	150*150	2-100*38	350	550	380	231	400	413
NO	11	150*150	2-100*38	350/260	550	380	231	400	413

Germany Type Technical Parameter Table
Axle Lift	Rated Load(T)	Axle Beam(mm)	Leaf Spring(mm)	Air Bage Spec	L1(mm)	L2(mm)	H1(mm)	H2(mm)	H3(mm)
YES	9	120*120	1-100*50	350/300.260	500	380	268	426	318
NO	9	ꬿ127	1-100*50	350/300	500	380	268	210	318
NO	9	ꬿ127	1-100*50	350/300	500	380	268	426	318
YES	9	ꬿ127	1-100*50	350/300.260	500	380	268	210	318
YES	9	ꬿ127	1-100*50	350/300.260	500	380	268	426	318
YES	11	150*150	2-100*40	350.26	550	358	268	444	423
NO	11	150*150	2-100*40	350	550	385	268	444	423
YES	11	ꬿ127	2-100*40	350.26	550	385	268	422	423
NO	11	ꬿ127	2-100*40	350	550	385	268	422	423
