Quick Details
-
Width of bed (mm):
-
55 mm
-
Spindle Motor Power(kW):
-
18.5/22
-
Max. Turned Length (mm):
-
900
-
Travel (X Axis)(mm):
-
635 mm
-
Travel (Z Axis)(mm):
-
925 mm
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.005/0.006
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
2576*4284*4000
-
Brand Name:
-
YUZHONG
-
Model Number:
-
LC-1100
-
Voltage:
-
380V
-
Weight (KG):
-
19500
-
Marketing Type:
-
Hot Product
-
Machine Type:
-
Vertical Lathe
Quick Details
-
Type:
-
VERTICAL
-
Max. Length of Workpiece (mm):
-
900
-
Max. Spindle Speed (r.p.m):
-
1000 r.p.m
-
Width of bed (mm):
-
55 mm
-
Spindle Motor Power(kW):
-
18.5/22
-
Max. Turned Length (mm):
-
900
-
Travel (X Axis)(mm):
-
635 mm
-
Travel (Z Axis)(mm):
-
925 mm
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.005/0.006
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
2576*4284*4000
-
Brand Name:
-
YUZHONG
-
Model Number:
-
LC-1100
-
Voltage:
-
380V
-
Weight (KG):
-
19500
-
Marketing Type:
-
Hot Product
-
Machine Type:
-
Vertical Lathe

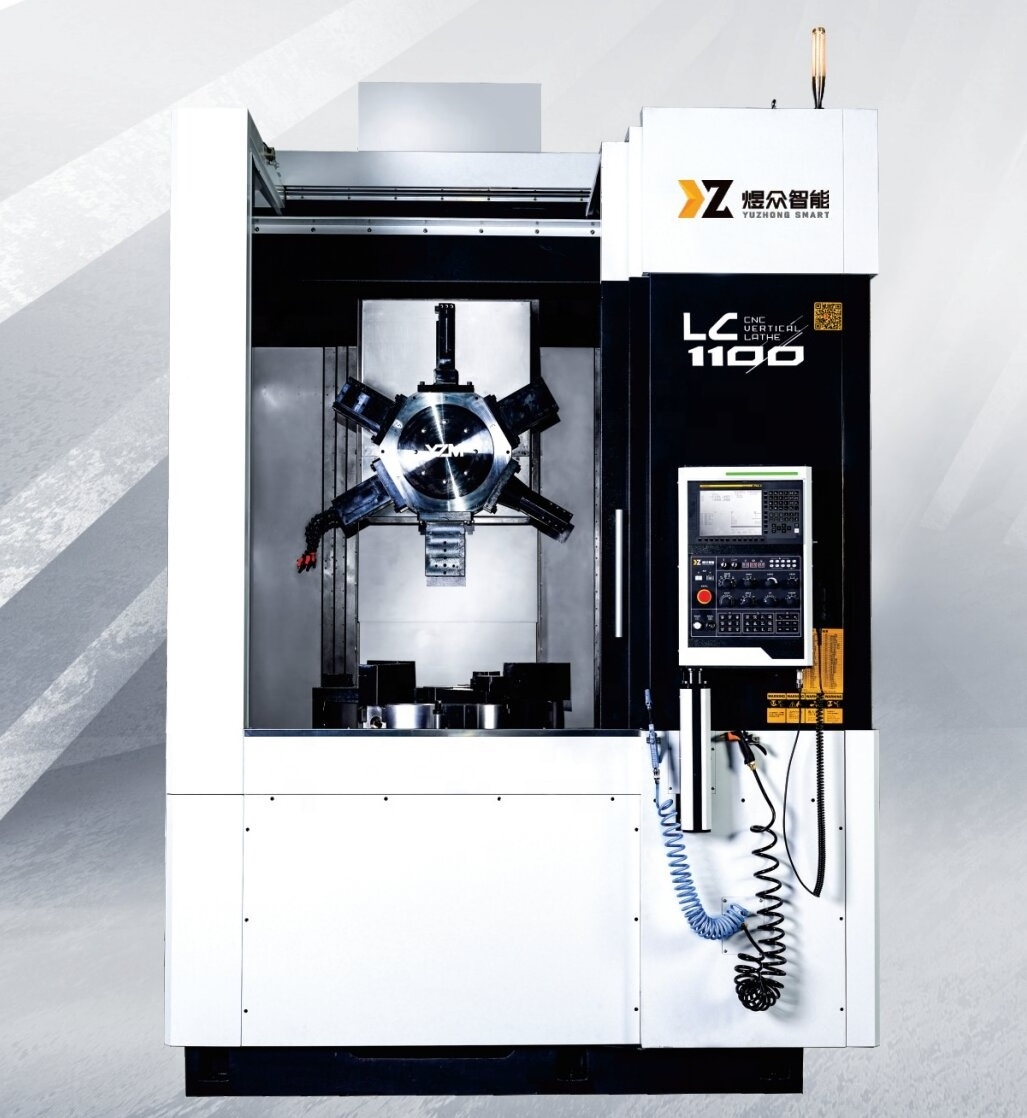

Product Show
Product Parameters
|
Project
|
|
Unit
|
Specification
|
|
|
Processing capacity
|
Maximum turning diameter
|
mm
|
∅1280
|
|
|
|
Maximum cutting diameter
|
mm
|
∅1250
|
|
|
Spindle
|
Spindle nose
|
type
|
A2-15
|
|
|
|
Spindle speed
|
rpm
|
10-1000
|
|
|
|
Chuck diameter
|
inch
|
24
|
|
|
|
Spindle aperture
|
mm
|
120
|
|
|
|
Inner diameter of spindle front bearing
|
mm
|
∅220
|
|
|
Dota
|
Tool capacity
|
pc
|
6/12
|
|
|
|
Shank with outer diameter
|
mm
|
32
|
|
|
|
Shank with inside diameter
|
mm
|
∅50
|
|
|
|
Turret form
|
rpm
|
Vertical type
|
|
|
|
Double knife function
|
|
inapplicability
|
|
|
Gourney
|
X-axis travel
|
mm
|
-50+635
|
|
|
|
Z-axis travel
|
mm
|
925
|
|
|
Fast feed
|
X-axis fast feed
|
m/min
|
16
|
|
|
|
Z-axis fast feed
|
m/min
|
16
|
|
|
Hydraulic unit
|
Oil pressure tank capacity
|
L
|
30
|
|
|
|
Hydraulic motor
|
kw
|
2.2
|
|
|
|
Two-stage pressure
|
|
option
|
|
|
Cutting water unit
|
Tank capacity
|
L
|
430
|
|
|
|
Cutting water motor
|
kw
|
1.53
|
|
|
|
Flush motor power
|
kw
|
1.53
|
|
|
motor
|
X-axis servo motor
|
kw
|
7
|
|
|
|
Z-axis servo motor
|
kw
|
7
|
|
|
|
Spindle servomotor
|
kw
|
18.5/22
|
|
|
Precision
|
X/Z repeated positioning accuracy
|
mm
|
0.005/0.006
|
|
|
|
Positioning accuracy
|
mm
|
0.01
|
|
|
Machine size
|
L x W x H
|
mm
|
2576*4284*4000
|
|
|
|
Weight (including accessories)
|
kg
|
19500
|
|
