The use of pneumatic mobile device can avoid electricity ignition and explosion, the use
of pneumatic portable machine safty is high, simple and practical. Pneumatic car can adjust speed, forward and backward function,
also has explosion-proof function, using rail or magnetic fixed on the pipe
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
200
-
Cutting Accuracy(mm):
-
0.01
-
Brand Name:
-
win win
-
Voltage:
-
380v
-
Rated Power:
-
73KW
-
Dimension(L*W*H):
-
2*2*2
-
Year:
-
2022
-
Weight (KG):
-
1500 KG
-
Application:
-
Waterjet Cutting Machine
-
After-sales Service Provided:
-
Provided
-
Control system:
-
Weihong
-
Pump type:
-
Intensfier Pump
-
Usage:
-
Ultra High Pressure Cutting
-
Cutting material:
-
Stone Metal Glass.etc
-
Cutting Thickness:
-
0-200mm
-
Max pressure:
-
420mpa/60000psi/4137bar
-
Keyword:
-
Water Jet Abrasive Cutting Machine
-
Material:
-
Stainess Steel
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Table Travel (X) (mm):
-
2000
-
Table Travel (Y) (mm):
-
1500
-
Table Travel (Z) (mm):
-
200
-
Cutting Accuracy(mm):
-
0.01
-
Brand Name:
-
win win
-
Voltage:
-
380v
-
Rated Power:
-
73KW
-
Dimension(L*W*H):
-
2*2*2
-
Year:
-
2022
-
Weight (KG):
-
1500 KG
-
Application:
-
Waterjet Cutting Machine
-
After-sales Service Provided:
-
Provided
-
Control system:
-
Weihong
-
Pump type:
-
Intensfier Pump
-
Usage:
-
Ultra High Pressure Cutting
-
Cutting material:
-
Stone Metal Glass.etc
-
Cutting Thickness:
-
0-200mm
-
Max pressure:
-
420mpa/60000psi/4137bar
-
Keyword:
-
Water Jet Abrasive Cutting Machine
-
Material:
-
Stainess Steel
Product Description
Pneumatic / electric car
Magnetic car
Magnetic car wheel is permanent magnet material, can be directly adsorbed on the cutting material, of course, can also add positioning track, so that the cutting accuracy is higher, permanent magnet mobile car is easy to operate, with forward and backward, adjusting speed function.
Related Parts
WW5060JET intensifier pump
WW5060jet waterjet cutting intensifier pump provides ultra-high pressure water for portable waterjet cutting. Equipped with explosion-proof motor, explosion-proof electric box, etc., specializing in cutting flammable and explosive production of explosion-proof intensifier pump, cutting petroleum pipeline, chemical pipeline, etc.
R.O. system
Cooling system
Abrasive tank
Application

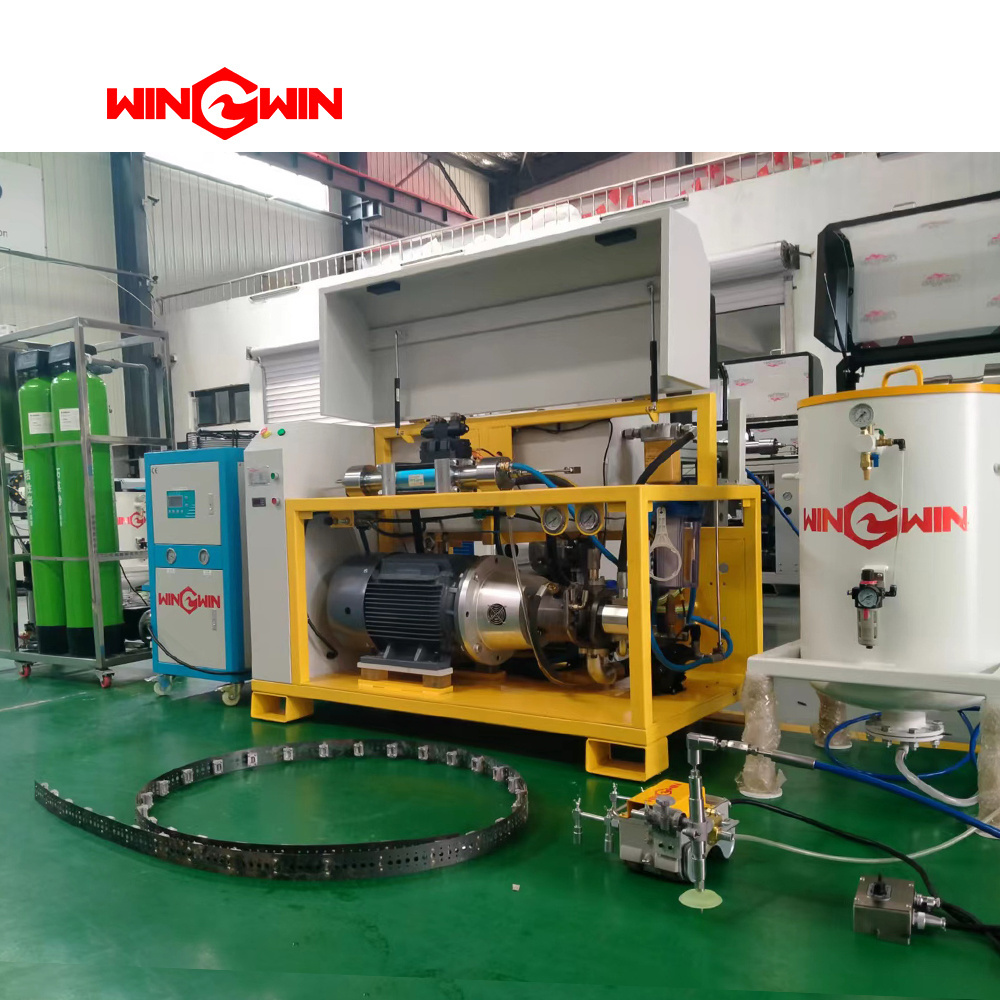

Portable waterjet cutting machine is suitable for cutting oil tanks, chemical pipelines, underground pipelines, etc. It is convenient for transportation, flexible for cutting, and suitable for field cutting. There is no need for cutting platform. Intensifier pump is equipped with portable car to carry out construction, which solves the cutting problem of large buildings. Most oil tanks and chemical pipelines can’t be cut by fire, and waterjet cutting belongs to cold cutting, It will
not produce fire, explosion, toxic gas, etc. It is the preferred cutting equipment for cutting dangerous goods.
not produce fire, explosion, toxic gas, etc. It is the preferred cutting equipment for cutting dangerous goods.
About Us
Win-Win has been focusing on waterjet Industry for over 20 years, our founder is the leader of waterjet technology. We have a complete technical team, who always focus on the R&D of Ultra High-Pressure Technology, so that Win-Win owns more than ten patents of core technology. We have been cooperating with the interior part manufacturers for many years as the authorized supplier. And now, Win-Win becomes the largest and most reliable UHP waterjet system supplier. We have a standard production plant of 2800㎡, you will see the full automation production line, strict QC phase, 100% testing before sell. The slogan of Win-Win is “To provide the best products and the best service, make customers and us to get mutual benefit together.
