Quick Details
-
Model Number:
-
BS-PETM
-
Product name:
-
Polyester expandable braided sleeving
-
Size:
-
3mm-76mm flat width
-
Thickness:
-
0.25mm
-
Working Temperature:
-
-50C-+150C
-
Melt Point:
-
240C+-10C
-
Flammability:
-
VW-1
-
Abrasion Resistance:
-
Good
-
Color:
-
64Colors available
-
Recommended Cutting:
-
Hot Knife
Quick Details
-
Material:
-
Polyester
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
EKO
-
Model Number:
-
BS-PETM
-
Product name:
-
Polyester expandable braided sleeving
-
Size:
-
3mm-76mm flat width
-
Thickness:
-
0.25mm
-
Working Temperature:
-
-50C-+150C
-
Melt Point:
-
240C+-10C
-
Flammability:
-
VW-1
-
Abrasion Resistance:
-
Good
-
Color:
-
64Colors available
-
Recommended Cutting:
-
Hot Knife
Product Description

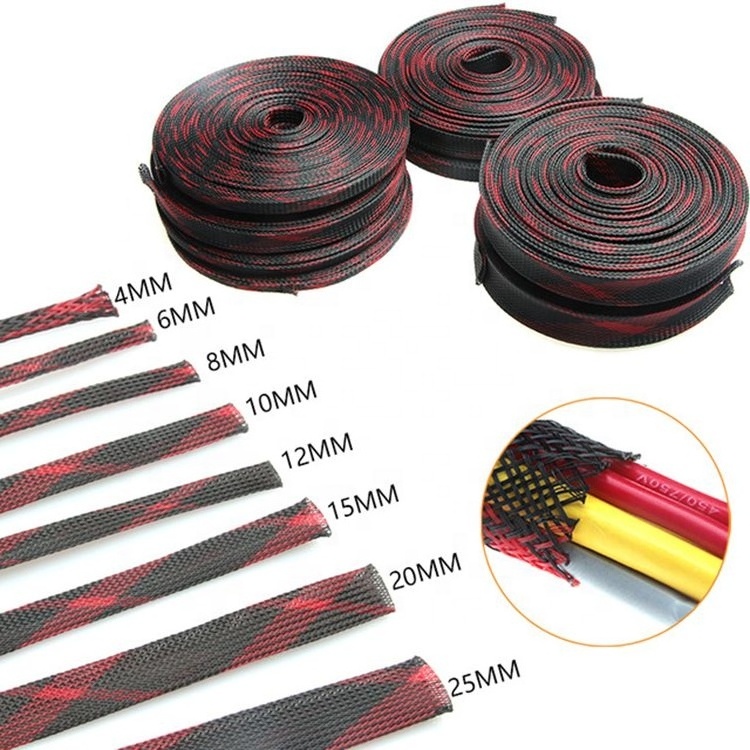

Multicolor PET Braided Expandable Sleeve for Wiring Harness Wire Cover
Multicolor Braided Expandable Sleeve
is braided from colorful polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.
Details Images
1. Light weight & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Datasheet
|
Part No.
|
Nominal size(W)
|
Wall Thickness
|
Expanded range
|
|
Packing(L)
|
||
|
|
Inch
|
mm
|
Min.(I)
|
Max.(O)
|
|
||
|
BS-PETM003
|
1/8"
|
3.0
|
1.0
|
6.0
|
500m/roll
|
||
|
BS-PETM006
|
1/4"
|
6.0
|
3.0
|
9.0
|
500m/roll
|
||
|
BS-PETM008
|
5/16"
|
8.0
|
5.0
|
16.0
|
500m/roll
|
||
|
BS-PETM010
|
3/8"
|
10.0
|
7.0
|
19.0
|
500m/roll
|
||
|
BS-PETM012
|
1/2"
|
12.0
|
8.0
|
24.0
|
500m/roll
|
||
|
BS-PETM016
|
5/8"
|
16.0
|
10.0
|
27.0
|
250m/roll
|
||
|
BS-PETM019
|
3/4"
|
20.0
|
14.0
|
30.0
|
250m/roll
|
||
|
BS-PETM025
|
1"
|
25.0
|
18.0
|
35.0
|
250m/roll
|
||
|
BS-PETM030
|
1-1/4"
|
30.0
|
20.0
|
50.0
|
100m/roll
|
||
|
BS-PETM040
|
1-1/2"
|
40.0
|
30.0
|
60.0
|
100m/roll
|
||
|
BS-PETM045
|
1-3/4"
|
45.0
|
35.0
|
75.0
|
100m/roll
|
||
|
BS-PETM050
|
2"
|
50.0
|
40.0
|
80.0
|
100m/roll
|
||
|
BS-PETM060
|
2-1/2"
|
64.0
|
45.0
|
105.0
|
100m/roll
|
||
|
BS-PETM070
|
3"
|
76.0
|
64.0
|
120.0
|
100m/roll
|
||
Application
Colorful PET briaded expendable sleeving is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. PET sleeveing can be found in applications ranging from small office/home office to high tech wire and cable harnesses.
