Quick Details
-
Model Number:
-
FC-146EB
-
Weight:
-
95kgs
-
Aspect Ratio:
-
16:9
-
Packing Dimension:
-
1845*1190*200 mm*1 ctn
-
Product Dimension:
-
3572.8(L)* 143(D)*1044(H) mm
-
Screen Size:
-
146
-
Products name:
-
Smart e-blackboard for Classroom
-
Main Screen:
-
146 inch Interactive Flat Panel
-
Subscreen:
-
Chalk/Marker Writing Board
-
Smart blackboard size:
-
146inch 4K flat writing panel
-
Writing tools:
-
Finger, Pointer, Pen, chalk, marker
-
Blackboard screen type:
-
Tempered explosion-proof glass 4 mm
-
Operating system:
-
Dual System: Android and Windows
-
Touch points:
-
20 Points Infrared Multi-touch
-
Accessory:
-
Pen+wall Mounts+remote Controller
-
Application:
-
Educaiton, Training,Conference
Quick Details
-
Panel Size:
-
146inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EIBOARD
-
Model Number:
-
FC-146EB
-
Weight:
-
95kgs
-
Aspect Ratio:
-
16:9
-
Packing Dimension:
-
1845*1190*200 mm*1 ctn
-
Product Dimension:
-
3572.8(L)* 143(D)*1044(H) mm
-
Screen Size:
-
146
-
Products name:
-
Smart e-blackboard for Classroom
-
Main Screen:
-
146 inch Interactive Flat Panel
-
Subscreen:
-
Chalk/Marker Writing Board
-
Smart blackboard size:
-
146inch 4K flat writing panel
-
Writing tools:
-
Finger, Pointer, Pen, chalk, marker
-
Blackboard screen type:
-
Tempered explosion-proof glass 4 mm
-
Operating system:
-
Dual System: Android and Windows
-
Touch points:
-
20 Points Infrared Multi-touch
-
Accessory:
-
Pen+wall Mounts+remote Controller
-
Application:
-
Educaiton, Training,Conference
7 Days Delivery On Time Mobile Stand White Board Prices Tempered Glass Whiteboard 77 75 85 98 Inches Interactive Smart Board
Product Description

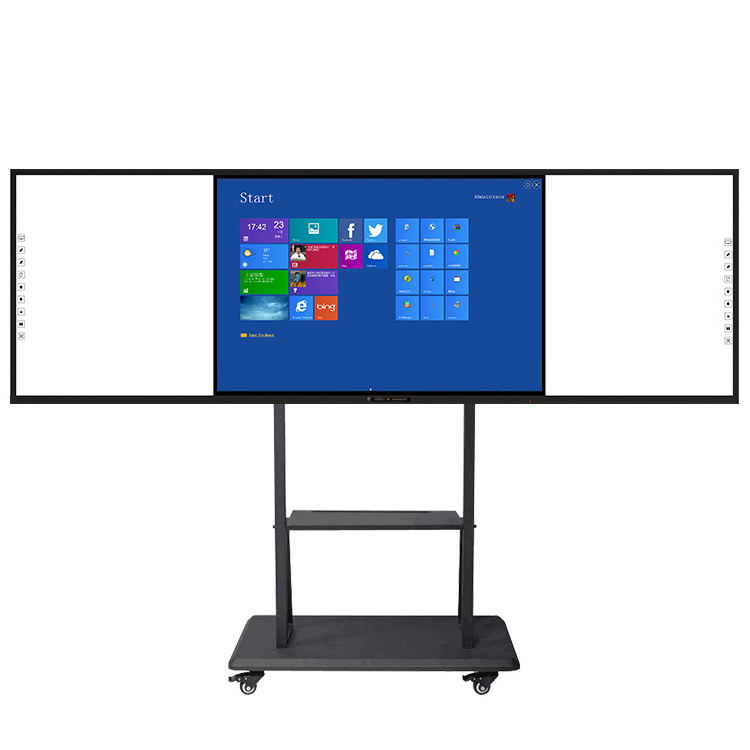

What is a LED Recordable Smart Blackboard?
EIBOARD LED Recordable Smart Whiteboard is new concept designed for smart classroom solution, which integrates traditional white board,interactive board and touch panel to create a new solution.
It enables the traditional blackboard or whiteboard writing content to be e-content and saved easily and convenient.
With design of seamless writing and big flat surface, it enables multi-user to operate with multiple working modes simultaneously.
Users can write by finger, pen, markers at the same time.
The system is widely used for education,training and meeting, with sizes 146',162' and 185'.
Function Description
Specification
|
Item Name
|
LED Recordable Smart Blackboard
|
|
|
|
Model No.
|
FC-146EB
|
|
|
|
Main Screen
|
LED Panel Size
|
146”
|
|
|
|
Backlight Type
|
LED (DLED)
|
|
|
|
Resolution(H×V)
|
3840×2160 (UHD)
|
|
|
|
Color
|
10 bit 1.07B
|
|
|
|
Active Size
|
1649.66*927.93mm
|
|
|
|
Dot Pitch(H*W)
|
0.4296*0.4296
|
|
|
|
Brightness
|
350cd/m2
|
|
|
|
Contrast
|
4000:1 (according to panel brand)
|
|
|
|
Viewing angle
|
178°
|
|
|
|
Display protection
|
Tempered explosion-proof glass 4 mm
|
|
|
|
Backlight lifetime
|
50000 hours
|
|
|
|
TV (Optional)
|
Image format :PAL/SECAM/NTSC (Optional) ; Channel storage 200
|
|
|
|
Speakers
|
15W*2 / 8Ω
|
|
|
Subscreen
|
Blackboard Type
|
Green Board,Blackboard, whiteboard as options
|
|
|
|
Shortcuts
|
9 Shortcuts for fast convenient operation: Split screen, Blue Pen, Red Pen, New Page, Last Page, Next Page, Whiteboard
Lock,Record,QR code |
|
|
|
Writing Tool
|
Chalk/marker, finger,pen or any non-transparent objects
|
|
|
|
Dimension
|
933* 61.5*1044mm * 2pcs
|
|
|
Document Camera
|
Built-in
|
5.0 and 8.0 Mega pixel option,with software
|
|
|
Electrical performance
|
Max Power
|
≤300W
|
|
|
|
Standby power
|
≤0.5W
|
|
|
Touch
|
Touch technology
|
IR touch; 20 points; HIB Free drive
|
|
|
|
Touch Items
|
Main screen and sub-screen can work simultaneously.
|
|
|
|
Response speed
|
≤ 8ms
|
|
|
|
Operation system
|
Support Windows7/10, Android, Mac OS, Linux
|
|
|
|
Working temperature
|
0℃~60℃
|
|
|
|
Operating Voltage
|
DC5V
|
|
|
|
Power consumption
|
≥0.5W
|
|
|
I/O ports
|
Front ports
|
USB2.0*3,HDMI*1,Touch USB*1
|
|
|
|
Back Ports
|
HDMI*1, VGA*1, RS232*1, Audio*1, MIC*1, Earphone*1, USB2.0*4, RJ45 IN *1, RJ45 OUT *1, OPS Slots*1
|
|
|
|
Function buttons
|
8 buttons in front bezel: Power, Source,Menu,Volume+/-,Home, PC,Eco
|
|
|
Accessories
|
Power cable*1 pcs; Touch Pen*1 pcs; Remote Controller*1 pcs; QC card*1 pcs; Instruction manual*1 pcs ; Warranty card*1 pcs; Wall
brackets*1 set |
|
|
|
Operating System
|
Android System
|
Android 11.0
|
|
|
|
CPU (Processor)
|
CORTEX A53 Quad Core 1.5GHz
|
|
|
|
GPU
|
Mali-720MP MP2
|
|
|
|
Storage
|
RAM 2GB ; ROM 32G;
|
|
|
|
Network
|
LAN/ WiFi(2.4G+5G )
|
|
|
Windows System (OPS)
|
CPU
|
I5 (i3/ i7 optional)
|
|
|
|
Storage
|
Memory: 4G (8G optional) ; HDD: 128G SSD (256G/512G/1TB optional)
|
|
|
|
WIFI
|
Included
|
|
|
|
OS
|
Pre-install Windows 10 Pro
|
|
Production Process
|
Item Name
|
LED Recordable Smart Whiteboard
|
|
|
||
|
Panel Size
|
146 inch
|
162 inch
|
185 inch
|
||
|
Model No.
|
FC-146EB
|
FC-162EB
|
FC-185EB
|
||
|
Dimension(L*D*H)
|
3572.8* 122.81*1044 mm
|
3952.8* 127*1183 mm
|
4504*145*1336mm
|
||
|
Main Screen (H*V)
|
1649.66* 927.93mm
|
1872* 1053mm
|
2159 *1214 mm
|
||
|
Sub-screen (L*D*H)
|
933* 61.5*1044mm *2pcs
|
1000* 61.5*1183mm *2pcs
|
1143*61.5*1336mm *2pcs
|
||
|
Packing Size(L*H*D)
|
1845*1190*200 mm*1 ctn;
1030 * 190 *1140 *1 ctn
|
2110*1375*200mm*1 ctn; 1097*190*1280mm*1 ctn
|
2410*350*1660mm*1 ctn;
1240*190*1433mm*1 ctn
|
||
|
Weight (N.W. /G.W.)
|
82KG/ 95KG
|
105KG/118KG
|
130KG/152KG
|
||
