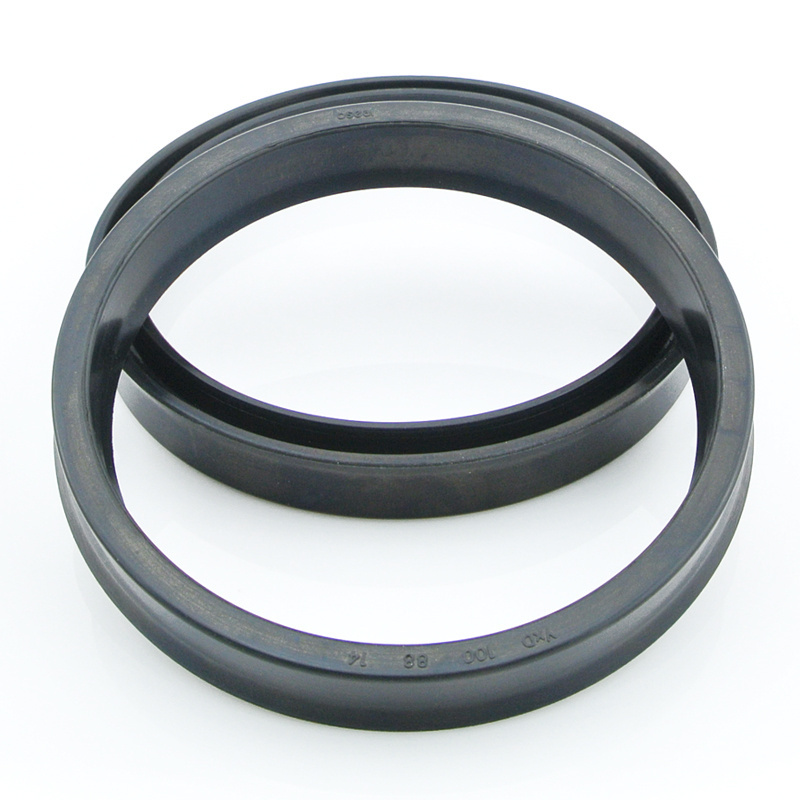

DLSEALS PU Hydraulic seal YXD shaft seal for pistons 80*92*14

DLSEALS PU Hydraulic seal YXD shaft seal for pistons 809214

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.98

≥11 Pieces

US $0.88

≥21 Pieces

US $0.78

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material Type:: PU

Temperature:: -20~+120℃

Pressure:: 40MPa

Speed:: ≤0.5m/s

Hardness:: 90-95 Shore

Feature:: Wear Resistant

Medium:: Mineral oil based, hydraulic fluids,water

Application:: Heavy machinery, Pump, oil cylinder, etc

Standard or nonstandard:: Standard/Customize

Quick Details

Size:: 80*92*14

Place of Origin:: Guangdong, China

Product name:: YXD shaft seal for pistons 80*92*14

Material Type:: PU

Temperature:: -20~+120℃

Pressure:: 40MPa

Speed:: ≤0.5m/s

Hardness:: 90-95 Shore

Feature:: Wear Resistant

Medium:: Mineral oil based, hydraulic fluids,water

Application:: Heavy machinery, Pump, oil cylinder, etc

Standard or nonstandard:: Standard/Customize

Product Description

YX-D Piston Seal shaft seal ring is widely used in a various copper cylinder and generally used in equipment oil cylinder to play a good sealing role in the reciprocating movement. And simple structure, easy to install, small cross-sectional area, products with oil resistance, wear-resistant properties of product use: for the reciprocating movement of the piston seal cylinder.

Polyurethane (PU) is a special material that offers the resilience of rubber combined with the toughness and durableness. It allows people to substitute rubber, plastic and metal with PU. Polyurethane can reduce factory maintenance and OEM product cost. Polyurethane has better abrasion and tear resistance than rubbers, and offering higher load bearing capacity.

Compared PU with plastic, polyurethane not only offers excellent impact resistance, but also offers excellent wear resistant and high tensile strength. Polyurethane have subsituted metals in sleeve bearings, wear plates, conveyor rollers, rollers and various other parts, with benefits such as weight reduction, noise abatement and wear improvements.

Material	PU
Temperature(℃）	-20~+120℃
Pressure	40MPA
Medium	Mineral oil based, hydraulic fluids,water
Hardness	90-95 shore A
Standard or Nonstandard	standard/Customize
Application	Heavy machinery, Pump, oil cylinder, etc.

Installation instructions

1: Make sure the mechine is chamfered; if not, use the mounting sleeve. 2: Deburr and chamfer or chamfer sharp edges; cover the end of the bolt threads to prevent scratches. 3: Remove processing residues, such as dust, debris and other external particles, and clean all parts.

4： Use non-sharp edge installation tools to prevent damage to seals and cylinders.

Advantages

1. Particularly strong wear resistance. 2. Insensitivity to shock loads and pressure peaks. 3. High crush resistance. 4. It has an ideal sealing effect under no load and low-temperature conditions. 5. Suitable for demanding working conditions. 6. Easy to install.

Details Images

Size Information

Size Chart of This Design

The diameter of seals from 0.5mm-3500mm

More quantities, sizes, colors, and materials, or if you choose the nonstandard one, please contact Laney Li.

Our Services & Strength

With our long experience in the field of seals, we can work together with you to help you increase the reliability and improve the performance of your equipment.

DLSEALS is a dependable partner and trusted resource you can rely on to help you resolve supply or technical problems.

Our production flexibility is also a definite plus, particularly when you are facing emergency repairs and urgent orders, since our highly responsive team can offer you very short production lead times.

Certificates

FAQ

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q :How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock, or 15-20 days if the goods are not in stock. It is according to the quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can offer the samples for free charge but you need to pay the cost of the freight.

Q: What is your terms of payment? A: Payment≤1000USD, 100％ in advance. Payment≥1000USD，30％T/T in advance, balance before shipment. If you have any other questions, please feel free to contact us as below.
