Automatic Wood Cutting Machine Automatic Sliding Table Computer Cnc Panel Saw

Automatic Wood Cutting Machine Automatic Sliding Table Computer Cnc Panel Saw

FOB Reference Price: Get Latest Price

≥1 Sets

US $6500

≥3 Sets

US $6400

≥8 Sets

US $6280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380v (optional)

Dimension(L*W*H):: 3200x3150x900mm

Application:: woodworking shop, Furniture processing and manufacturing

Weight (KG):: 950 KG

Power (kW):: 6.8kw

Max.Cutting Height at 90°(mm):: 75mm

Max.Cutting Height at 45°(mm):: 55mm

Max. Length of Workpiece (mm):: 3200mm

Product name:: CNC Sliding Table Panel Saw

The size of sliding table:: 3200x410mm

Working length:: 3200mm

The titling of saw blade:: 0-45 degree

The structure of sliding table:: Altendorf structure

The diameter of main blade:: 300 mm (250-400mm)

The diameter of scoring blade:: 120mm

Power(W):: 5.5kw +1.1kw

Quick Details

Place of Origin:: Shandong, China

Brand Name:: SOSN

Usage:: wood cutting

Voltage:: 380v (optional)

Dimension(L*W*H):: 3200x3150x900mm

Application:: woodworking shop, Furniture processing and manufacturing

Weight (KG):: 950 KG

Power (kW):: 6.8kw

Max.Cutting Height at 90°(mm):: 75mm

Max.Cutting Height at 45°(mm):: 55mm

Max. Length of Workpiece (mm):: 3200mm

Product name:: CNC Sliding Table Panel Saw

The size of sliding table:: 3200x410mm

Working length:: 3200mm

The titling of saw blade:: 0-45 degree

The structure of sliding table:: Altendorf structure

The diameter of main blade:: 300 mm (250-400mm)

The diameter of scoring blade:: 120mm

Power(W):: 5.5kw +1.1kw

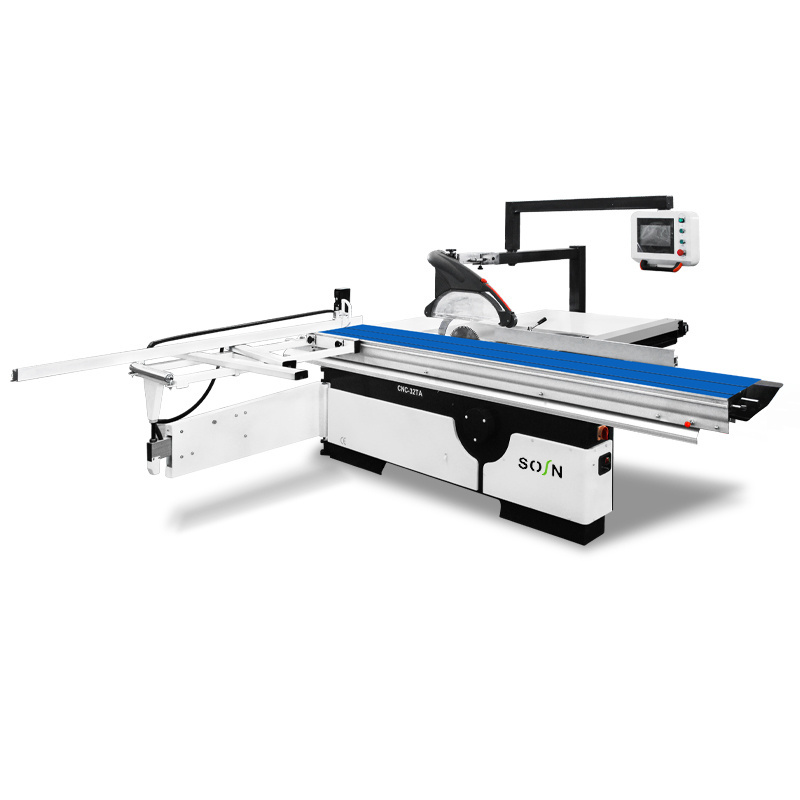

CNC Sliding Table Saw machine

1. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass
plates and solid wood and others with wood structure and similar hardness.
2. Movable table guide track is plating chromium steel balls structure, exact and durable.
3. Made of high-strengh extruded aluminum alloy,movable table is high in strength and won't bend.
4. With oxidation treatment, movable table surface is beautiful and hardwearing.

Technical Parameter

Model	CNC-32TA
Dimension of sliding table	3200*410mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Saw blade diameter	300mm
scoring saw blade diameter	120mm
Speed of main saw spindle	4500/6000rpm
Speed of scoring saw blade	8000r/min
Tilting saw blade	0-45 degree
Main motor	5.5kw
Scoring motor	1.1kw
Height of cut	90mm
Height of cut 300mm saw blade at 45 degree	60mm
Main spindle diameter	30mm
Net weight	880kg
Gross weight(with plywood wooden package)	950kg

-3200*410mm sliding table size
---automatic control with touch screen for main saw blade up and down.
---automatic control with touch screen for saw blade tilt.
---automatic control with touch screen for rip fence
