● Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for
up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are
powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
● Flexible downlink options with data, PoE+ or mGig
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based
segmentation, and trustworthy solutions for the whole C9200 family
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
- Product Details
- {{item.text}}

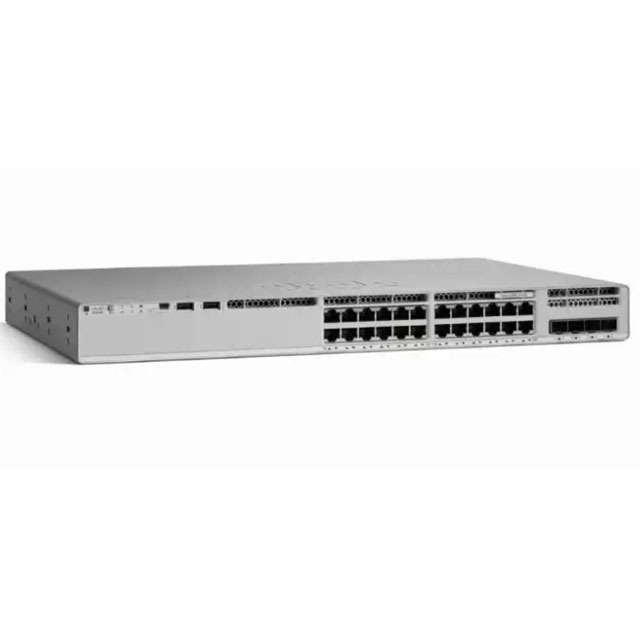

Quick Details
-
Brand Name:
-
JINYUKEWEI
-
Model Number:
-
C9200L-24T-4G-E
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
24 Port Switch
-
Model:
-
C9200L-24T-4G-E
-
Warranty:
-
1 Year
-
Weight:
-
10kg
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12G
-
Brand Name:
-
JINYUKEWEI
-
Model Number:
-
C9200L-24T-4G-E
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
24 Port Switch
-
Model:
-
C9200L-24T-4G-E
-
Warranty:
-
1 Year
-
Weight:
-
10kg
Product Description
Product overview
9200 Series Switch configurations
|
Switch model
|
Downlinks total 10/100/1000
or PoE+ copper ports |
Uplink configuration
|
Default primary AC
power supply |
|
C9200-24T
|
24 ports data
|
Modular uplink options
|
PWR-C6-125WAC
|
|
C9200-24P
|
24 ports full PoE+
|
Modular uplink options
|
PWR-C6-600WAC
|
|
C9200-48T
|
48 ports data
|
Modular uplink options
|
PWR-C6-1KWAC
|
|
C9200-48P
|
48 ports full PoE+
|
Modular uplink options
|
PWR-C6-1KWAC
|
|
C9200L-24T-4G
|
24 ports data
|
4x 1G fixed uplinks
|
PWR-C5-125WAC
|
|
C9200L-24P-4G
|
24 ports full PoE+
|
4x 1G fixed uplinks
|
PWR-C5-600WAC
|
|
C9200L-48T-4G
|
48 ports data
|
4x 1G fixed uplinks
|
PWR-C5-125WAC
|
|
C9200L-48P-4G
|
48 ports full PoE+
|
4x 1G fixed uplinks
|
PWR-C5-1KWAC
|
|
C9200L-24T-4X
|
24 ports data
|
4x 1/10G fixed uplinks
|
PWR-C5-125WAC
|
|
C9200L-24P-4X
|
24 ports full PoE+
|
4x 1/10G fixed uplinks
|
PWR-C5-600WAC
|
|
C9200L-48T-4X
|
48 ports data
|
4x 1/10G fixed uplinks
|
PWR-C5-125WAC
|
|
C9200L-48P-4X
|
48 ports full PoE+
|
4x 1/10G fixed uplinks
|
PWR-C5-1KWAC
|
