SPECIFICATIONS FOR STANDARD BALL VALVES
|
Pressure rating and size:
|
PN10 to PN160,ANSI Class150 to Class 2500, JIS 10K/20K
|
|
DN50 to DN2000
|
|
2"~80"
|
|
50A~2000A
|
|
|
Body : WCB, CF8, CF8M
|
|
Bonnet : WCB, CF8, CF8M
|
|
Ball : A105, SS304, SS316
|
|
Stem : F6a, SS304, SS316
|
|
Seat : EPDM,Metal,Viton,PTFE,NBR
|
|
Special material on request.
|
|
Operated type
|

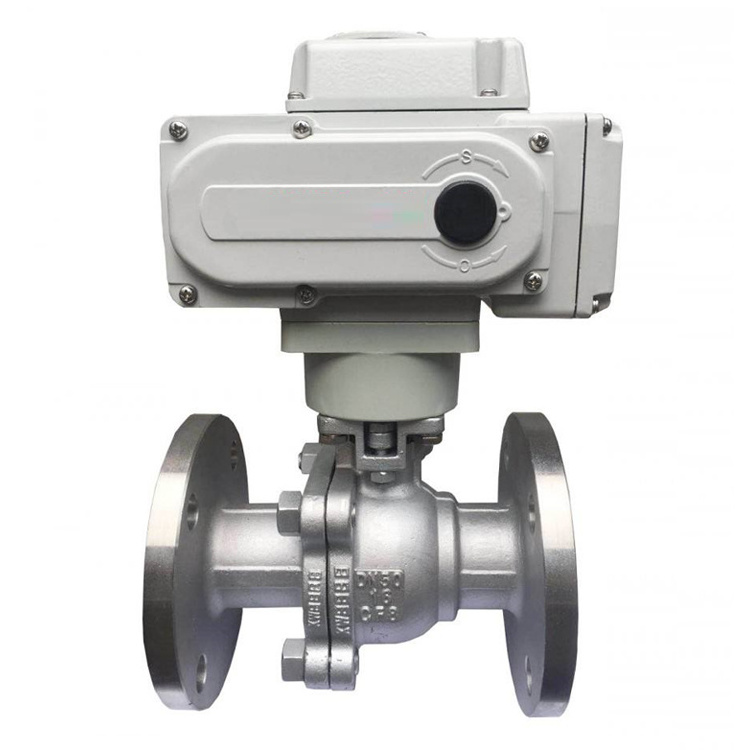

Lever, Pneumatic, Gear, Electric, Bare shaft, etc.
|
|
Structure:
|
Floating or trunnion mounted ball, full or reduced bore, 1pc,2pc or 3pcs
|
|
Flange connection:
|
EN1092 & ANSI B16.5 & JIS
|
|
|
Flange RF, RTJ
|
Maximum working temperatures:
|
Nitril:80°C
NBR:110
°C
EPDM:110
°C
PTFE:150
°C, Metal seat for high temperature
|
