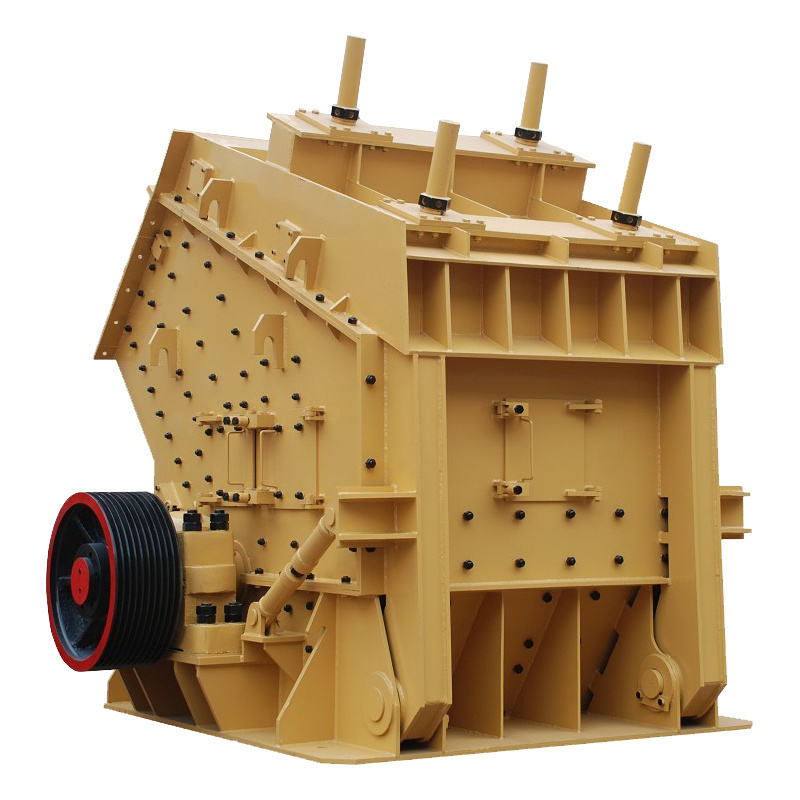

PF1214 Sand Making Machine Vertical Shaft Aggregate Impact Crusher

PF1214 Sand Making Machine Vertical Shaft Aggregate Impact Crusher

FOB Reference Price: Get Latest Price

≥1 Sets

US $17999

≥2 Sets

US $14999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: depend on different models

Weight:: 3000 KG

Marketing Type:: Hot Product 2023

Product name:: Impact Crusher Machine

Keyword:: Fine Impact Crusher

The Machines classification:: Crushing Line

Color:: Customer Requirement

Usage:: Mining Crushing Stone Crusher

Raw material:: Stones Rocks Ores Coal

Applicaton:: Gold Ore Mining Plant

After-sales Service Provided:: 1 Year

Quick Details

Application:: Quarry, Mining, Metallurgy, Energy & Mining Etc

Place of Origin:: Henan, China

Brand Name:: ASCEND

Dimension(L*W*H):: depend on different models

Weight:: 3000 KG

Marketing Type:: Hot Product 2023

Product name:: Impact Crusher Machine

Keyword:: Fine Impact Crusher

The Machines classification:: Crushing Line

Color:: Customer Requirement

Usage:: Mining Crushing Stone Crusher

Raw material:: Stones Rocks Ores Coal

Applicaton:: Gold Ore Mining Plant

After-sales Service Provided:: 1 Year

PF1214 Sand Making Machine Vertical Shaft Aggregate Impact Crusher

Product Description

Impact Crusher is widely used for stone production line in hydroelectric, highway and other industries. It is designed with three crushing chambers, seamlessly connected rotor, wear-resistant hammer plate and installation of insert type. Besides, impact liner is of tooth type, which is more efficient. The bearing seat is designed with certain gradient, and frame with several openings; the screws or hydraulic start-up devices equipped with the impact crusher makes the maintenance easy.

Advantages of Impact Crusher

1. Big feeding opening, high crushing cavity.

2. Economic and reliable non-key connection makes maintenance easier.

3. With compact structure, high rigidity, rotor with big moment of inertia.

4. With entire crushing function, high productivity, parts with less abrasion .

5. Equipped with shock-resistance and wear-resistance high-chromium board hammer.

6. Adjustable clearance between impact plate and board hammer control the discharging size and particle shape of products.

Detailed Images

Spare Parts

Working Principle

The materials collide with the blow bar during high-speed operation. The blow bar bounces the material onto the impact plate. The materials bounce off the impact plate and collide with the blow bar and the material itself. (Secondary crushing)

Main Technical Parameters

Model	Specifications (mm)	Feed opening (mm)	Max feeding side length (mm)	Capacity (t/h)	Power (kw)	Total weight (t)	Dimensions (LxWxH) (mm)
PF-0607	Φ644×740	320×770	100	10-20	30	4	1500x1450x1500
PF-0807	Φ850×700	400×730	300	15-30	30-45	8.13	1900x1850x1500
PF-1007	Φ1000×700	400×730	300	30-70	45	12	2330x1660x2300
PF-1010	Φ1000×1050	400×1080	350	50-90	55	15	2370x1700x2390
PF-1210	Φ1250×1050	400×1080	350	70-130	110	17.7	2680x2160x2800
PF-1214	Φ1250×1400	400×1430	350	100-180	132	22.4	2650x2460x2800
PF-1315	Φ1320×1500	860×1520	500	130-250	220	27	3180x2720x2920
PF-1320	Φ1320×2000	860×2030	500	160-350	300	30	3200x3790x3100

Packing&Shipping

Working Sites

Company Profile

Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Our Workshop

FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
