Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V 50Hz 1P
-
Dimension(L*W*H):
-
1200*1200*160mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1000
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1200*1200*160mm(optional)
-
Spindle:
-
Changsheng water cooling spindle
-
Control system:
-
Mach3
-
Motor and driver:
-
Stepper Motor 450 and LeadshineM 542 driver
-
Cooling system:
-
Water mist cooling sprayer
-
Software system:
-
Artcam 2012 new version
-
Inverter:
-
Fuling Inverter
-
Table structure:
-
Aluminum T-slot table
Quick Details
-
Working Table Size(mm):
-
1200×1200
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V 50Hz 1P
-
Dimension(L*W*H):
-
1200*1200*160mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1000
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1200*1200*160mm(optional)
-
Spindle:
-
Changsheng water cooling spindle
-
Control system:
-
Mach3
-
Motor and driver:
-
Stepper Motor 450 and LeadshineM 542 driver
-
Cooling system:
-
Water mist cooling sprayer
-
Software system:
-
Artcam 2012 new version
-
Inverter:
-
Fuling Inverter
-
Table structure:
-
Aluminum T-slot table
Products Description

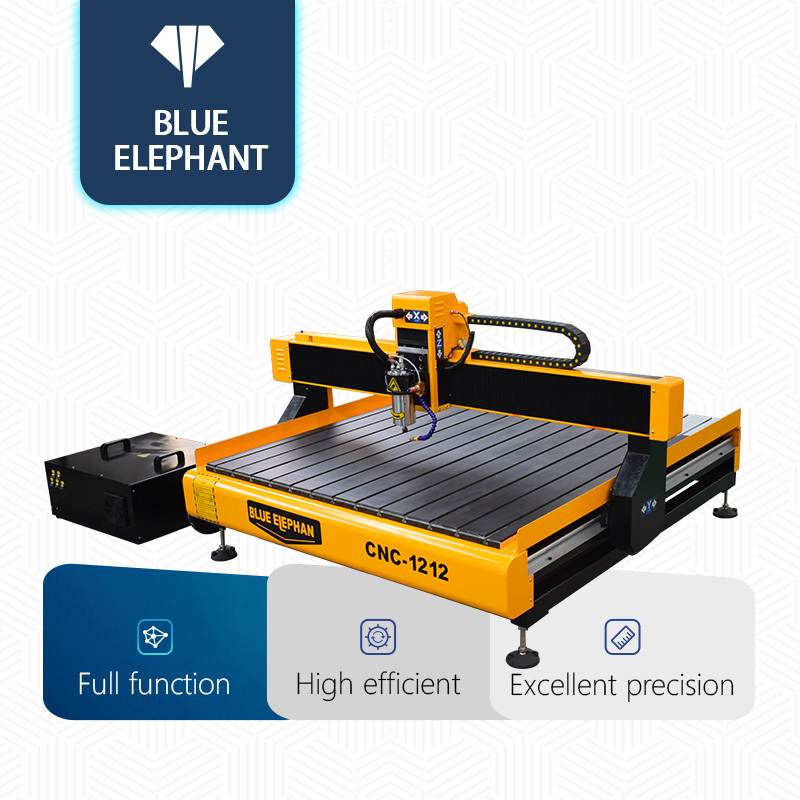

The Beste Cnc Router 1200 X 1200 Desktop Advertising Cnc 1212 Wood Carving Cutting Machine For Aluminum Acrylic Melamine
Features:
* With a relatively small work area, it is designed for small businesses or home use.
* Adopting T-slot and vacuum working table with 6 zones,which greatly increase the utilization rate.
* With Aluminum T-slot table, it is convenient fixing material with fixture.
* Equipped with Mach 3 Control system, it is easy to operate with handle.
* Adopting T-slot and vacuum working table with 6 zones,which greatly increase the utilization rate.
* With Aluminum T-slot table, it is convenient fixing material with fixture.
* Equipped with Mach 3 Control system, it is easy to operate with handle.
Product Paramenters
|
Model
|
ELECNC-1212
|
|
Working area
|
1200*1200mm
|
|
Whole machine size
|
1200*1200*160mm(optional)
|
|
Spindle
|
Changsheng water cooling spindle
|
|
Spindle speed
|
0-24000RPM
|
|
Motor and drive
|
Stepper Motor 450 and LeadshineM 542 driver
|
|
Control system
|
Mach3
|
|
Cooling system
|
Water mist cooling sprayer
|
|
Tool sensor calibration
|
Manual tool sensor calibration
|
|
Software system
|
Artcam 2012 new version
|
|
Inverter
|
Fuling Inverter
|
|
Table structure
|
Aluminum T-slot table
|
|
Transmission
|
Taiwan TBI ball screw for X,Y,Z axis
|
|
Voltage
|
220V, 50HZ
|
Product Detalis
DSP control system
This machine adopts DSP control system. With an open PLC program, customers can plan according to processing need.
Electronic components
Using the standard components with CE certification, such as Germany Schneider company.
FL118 Stepper Motor
Compared with ordinary motors, this type of motor has the features of simple structure, convenient control, high reliability.
Manual lubrication system
This machine is equipped with a lubricating oil pump. The lubrication effect is achieved by manual lubrication.
Air cooling spindle
With strong cutting ability, low noise, it can ensure the machine working for long time.
XYZ Transmission way
Rack gear transmission for X and Y axis, higher running speed and effciency, saving cost. Z axis with precision ball screw, high pre-
cision and more durable.
