GZM-50A is designed to fill free flowing,non clumping dry powder or granulates into valve bag;
Suitable for Powders,Sands, Cement , Tile adhesives, Plastics, Renders and Granulated Rubber.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GLZON
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
650*1270*1600
-
Product name:
-

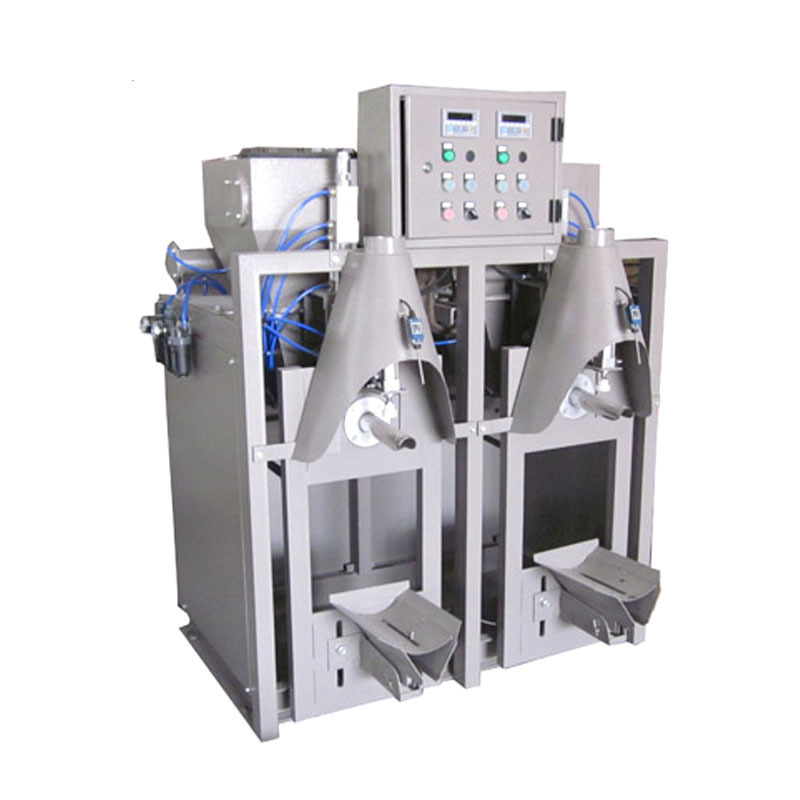

Double nozzle valve bag cement pack maker machine
-
Model:
-
GZM-50A
-
Machine material:
-
Carbon steel/SUS304
-
Container:
-
valve bags
-
Applicant to:
-
dry motor/cement/sand/powder
-
Max capacity:
-
50kg
-
Accuracy:
-
20g
-
Packing speed:
-
12-15 ton/hour
-
Running method:
-
pneumatic
Quick Details
-
Voltage:
-
220V 50hZ
-
Power:
-
0.2kw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GLZON
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
650*1270*1600
-
Product name:
-
Double nozzle valve bag cement pack maker machine
-
Model:
-
GZM-50A
-
Machine material:
-
Carbon steel/SUS304
-
Container:
-
valve bags
-
Applicant to:
-
dry motor/cement/sand/powder
-
Max capacity:
-
50kg
-
Accuracy:
-
20g
-
Packing speed:
-
12-15 ton/hour
-
Running method:
-
pneumatic
Product Description
This machine has high degree of automation, simple operation, equipped with the newly developed automatic bag unloading device, it only needs workers to insert the bag (fit the valve pocket) to complete the packaging production process, save labor (3-4 people), reduce the labor intensity of workers, greatly reduce the production cost, improve the production efficiency.
Pneumatic valve mouth packing machine is suitable for powder or fine particle (≤5mm) packing with good fluidity, using compressed air as power.The compressed air can fluidize the material in the closed container through the atomizer (air cushion), thus achieving the function of feeding.Airtight pneumatic rubber valve, through the control valve flow area, to achieve the control of the packaging of the material feed, to achieve effective and stable packaging accuracy and speed.
Pneumatic valve mouth packing machine is suitable for powder or fine particle (≤5mm) packing with good fluidity, using compressed air as power.The compressed air can fluidize the material in the closed container through the atomizer (air cushion), thus achieving the function of feeding.Airtight pneumatic rubber valve, through the control valve flow area, to achieve the control of the packaging of the material feed, to achieve effective and stable packaging accuracy and speed.
Specification
|
Model
|
GZM-I
|
GZM-II
|
GZM-III
|
||
|
Suitable material
|
small grain(<=5mm),such as cement, sand, dry powder.
|
|
|
||
|
Weighing form
|
Single nozzle,gross weight
|
Double nozzle,gross weight
|
Triplicate nozzle, gross weight
|
||
|
Packing net weight
|
20~50Kg
|
|
|
||
|
Accuracy class
|
1%
|
|
|
||
|
Packing speed
|
250~400bags/hour
|
350~700bags/hour
|
500~1000bags/hour
|
||
|
Bag form
|
Valve bag
|
|
|
||
|
Gas power
|
0.5MPa
|
|
|
||
|
Work environment
|
Temperature :-20℃~45℃relative humidity:95%(none dew)
|
|
|
||
|
voltage
|
AC220V 50Hz
|
|
|
||
|
Max power
|
0.1KW
|
0.2 KW
|
0.3 KW
|
||
|
wastage
|
0.7m3/min
|
1.4 m3/min
|
2.1m3/min
|
||
|
measure
|
650x1270x2000
|
1300x1270x1600
|
1950x1270x2000
|
||
|
Device weight
|
About 600Kg
|
1200 Kg
|
1800 Kg
|
||
Feature
1. automatic microcomputer control, computer intelligent automatic identification, automatic measurement, high sensitivity, stable performance, strong anti-interference ability, accurate weighing;
2. new design, no gate, scale, card wheel, pin, tension spring, spring and other mechanical weighing mechanism, unlimited
reduction of wearing parts;It not only reduces the maintenance cost, but also improves the production efficiency.
3. It can automatically realize the functions of packing bag, such as pressing, filling, closing and bag dropping, with stable
performance and simple operation;
4. The fuselage is fully sealed and equipped with dust removal port, with reasonable structure and durability, truly realizing
environment-friendly production;
5. The packaging machine mainly has two types: single mouth (gzm-ai) and double mouth (gzm-aii), which can be composed of 4-6 mouth packaging machines with two mouths side by side.
2. new design, no gate, scale, card wheel, pin, tension spring, spring and other mechanical weighing mechanism, unlimited
reduction of wearing parts;It not only reduces the maintenance cost, but also improves the production efficiency.
3. It can automatically realize the functions of packing bag, such as pressing, filling, closing and bag dropping, with stable
performance and simple operation;
4. The fuselage is fully sealed and equipped with dust removal port, with reasonable structure and durability, truly realizing
environment-friendly production;
5. The packaging machine mainly has two types: single mouth (gzm-ai) and double mouth (gzm-aii), which can be composed of 4-6 mouth packaging machines with two mouths side by side.
Working Process
1. Manually put the bag on the filling nozzle;
2. Press start;
3. The machine start to fill;
4. After achieve the target weight, the machine stop filling automatically;
5. Manually took off the finished bag;(also can use auto bag dropping device)
2. Press start;
3. The machine start to fill;
4. After achieve the target weight, the machine stop filling automatically;
5. Manually took off the finished bag;(also can use auto bag dropping device)
Application
Why choose us
1. Packaging solution
we provide professional packaging and logistic service for your option. With plenty of experience and carefully treatment, we make sure the machinery delivery to you is good useful.
2. Pre-sale Service.
pre-sale service will provide by our sales engineers and electrical engineers. offering complete bundle of packaging solutions and professional rationalization proposals and pre-sale testes.
3. After-sale service
we provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts not included)under warranty period(one-year warranty )as well as after-sale service of low cost.
Free training course will be given to your technician at our factory site in Shanghai China.
we provide professional packaging and logistic service for your option. With plenty of experience and carefully treatment, we make sure the machinery delivery to you is good useful.
2. Pre-sale Service.
pre-sale service will provide by our sales engineers and electrical engineers. offering complete bundle of packaging solutions and professional rationalization proposals and pre-sale testes.
3. After-sale service
we provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts not included)under warranty period(one-year warranty )as well as after-sale service of low cost.
Free training course will be given to your technician at our factory site in Shanghai China.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
