Quick Details
-
Power:
-
3KW
-
Min. Lifting Height:
-
1.31m
-
Table Size:
-
2270*1130mm
-
Overall Dimensions:
-
2475*1150*2414mm
-
Weight:
-
860 kg
-
Product name:
-
self-propelled scissor lift
-
Type:
-
Scissor Hydraulic Lift or with battery
-
Application:
-
Aerial Construction Work
-
Voltage:
-
220V/380V/battery/Fuel Oil Machine
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Color:
-
Customized Color
-
Max.working height:
-
16m
-
Extend platform length:
-
09m
-
Min. Turning Radius:
-
2.3m
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongcan
-
Power:
-
3KW
-
Min. Lifting Height:
-
1.31m
-
Table Size:
-
2270*1130mm
-
Overall Dimensions:
-
2475*1150*2414mm
-
Weight:
-
860 kg
-
Product name:
-
self-propelled scissor lift
-
Type:
-
Scissor Hydraulic Lift or with battery
-
Application:
-
Aerial Construction Work
-
Voltage:
-
220V/380V/battery/Fuel Oil Machine
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Color:
-
Customized Color
-
Max.working height:
-
16m
-
Extend platform length:
-
09m
-
Min. Turning Radius:
-
2.3m

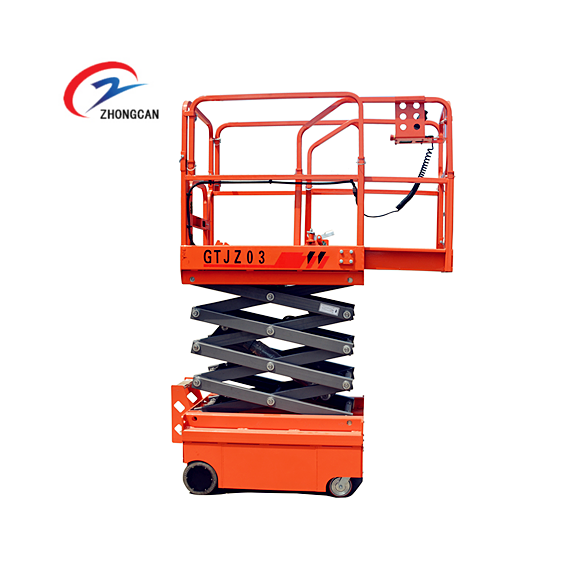

portable man self-propelled scissor lifts
Electric scissor lift, powered by battery, can walk on its own. Electric scissor lifts have longer runtimes and promote quieter working environments. The operator can move under working conditions at heights and complete up and down, forward, backward, steering and other tasks on the operating platform in the air. Electric scissor lifts greatly save man labor and working time.
|
Model
|
|
|
|
|
|
|||||
|
Model No.
|
GTJZ06
|
GTJZ08
|
GTJZ10
|
GTJZ12
|
GTJZ14
|
|||||
|
Max.Working Height
|
8m
|
10m
|
12m
|
14m
|
16m
|
|||||
|
Max.Platform Height
|
6m
|
8m
|
10m
|
12m
|
14m
|
|||||
|
Loading
|
230kg
|
230kg
|
230kg
|
230kg
|
230kg
|
|||||
|
Platform Size
|
2.26*1.13*1.1m
|
2.26*1.13*1.1m
|
2.26*1.13*1.1m
|
2.26*1.13*1.1m
|
2.64×1.13×1.1m
|
|||||
|
Machine Size
|
2.47*1.15*1.7m
|
2.47*1.15*1.8m
|
2.47*1.15*2.0m
|
2.47*1.15*2.1m
|
2.84*1.39*2.1m
|
|||||
|
N.W
|
1900kg
|
2060kg
|
2300kg
|
2460kg
|
3320kg
|
|||||
|
Min.Ground Clearance
|
0.1/0.02m
|
0.1/0.02m
|
0.1/0.02m
|
0.1/0.02m
|
0.1/0.02m
|
|||||
|
Wheelbase
|
1.89m
|
1.89m
|
1.89m
|
1.89m
|
2.26m
|
|||||
|
Power
|
24V/4.5Kw
|
24V/4.5Kw
|
24V/4.5Kw
|
24V/4.5Kw
|
24V/4.5Kw
|
|||||
|
Battery
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/225AH
|
4*12V/300Ah
|
|||||
|
Charger
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/30A
|
|||||
|
Lifting Speed
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
|||||
|
Drive Speed(foled)
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
|||||
|
Drive Speed(unfold)
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
|||||
|
Max.Climb
|
25%
|
25%
|
25%
|
25%
|
25%
|
|||||
|
Tyre
|
Φ381*127mm
|
Φ381*127mm
|
Φ381*127mm
|
Φ381*127mm
|
Φ381*127mm
|
|||||
The hydraulic drive of our own lift platform machine is using Tro-jan imported battery, quality assurance and long using life.
We also can supply extend platform for you to extend working space
The motor is imported from the United States and can be made 110V or 220V, 380V, 50Hz or 60Hz. Of course, if you need to control
the cost, we can choose a cheaper Chinese motor instead.
Made of polyurethane material, it is wear-resistant and non-slip and has zero scratches on the plastic floor of the warehouse.
America CUITIS Electric Control Handle on the Platform. Each control button has the instruction mark, the user can understand how
it works and easy to operate to up down or turn.
it works and easy to operate to up down or turn.
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. Let it more strong to avoid damage during the transport and for long distance transportation.
Zhongcan
Machinery Co., Ltd.
is a modern technology-based manufacturing enterprise specializing in the design, research and development, production, sales and after-sales service of lifting equipment.
There are six series of more than fifty varieties. The main products are wheelchair lifts, home lifts, self-propelled lifts, mobile lifts, fixed docking lamps, mobile docking lamps, fixed scissor lifts, rail hydraulic lift platforms, aluminum alloy lifts, car lifts, crank arm lifts, etc.
—
We assure you reply the email within 24 hours.
—
We assure you 12 mouth quality warranty time.
—
We welcome every recommendation and opinion from you -and make progress together with you.
— We can design a new machine as your requirements,until to your satisfaction.
— We can design a new machine as your requirements,until to your satisfaction.
