Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
24V L55D250W
-
Torque:
-
441/796mN.m
-
Product Name:
-
LUNYE DC Motor
-
Motor type:
-
Dc Brush Gear Motor
-
Shaft type:
-
Round Shaft
-
Size:
-
90mm
-
Weight:
-
4.7kg
-
Power:
-
250w
-
No load speed:
-
3200/3400rpm
-
Input Voltage:
-
24v
-
Application:
-
Electric toy car,Message equipment, Medical equipment...
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
3200/3400rpm
-
Continuous Current(A):
-
7.0/16.0A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
24V L55D250W
-
Torque:
-
441/796mN.m
-
Product Name:
-
LUNYE DC Motor
-
Motor type:
-
Dc Brush Gear Motor
-
Shaft type:
-
Round Shaft
-
Size:
-
90mm
-
Weight:
-
4.7kg
-
Power:
-
250w
-
No load speed:
-
3200/3400rpm
-
Input Voltage:
-
24v
-
Application:
-
Electric toy car,Message equipment, Medical equipment...
-
Certification:
-
ce
Product Description

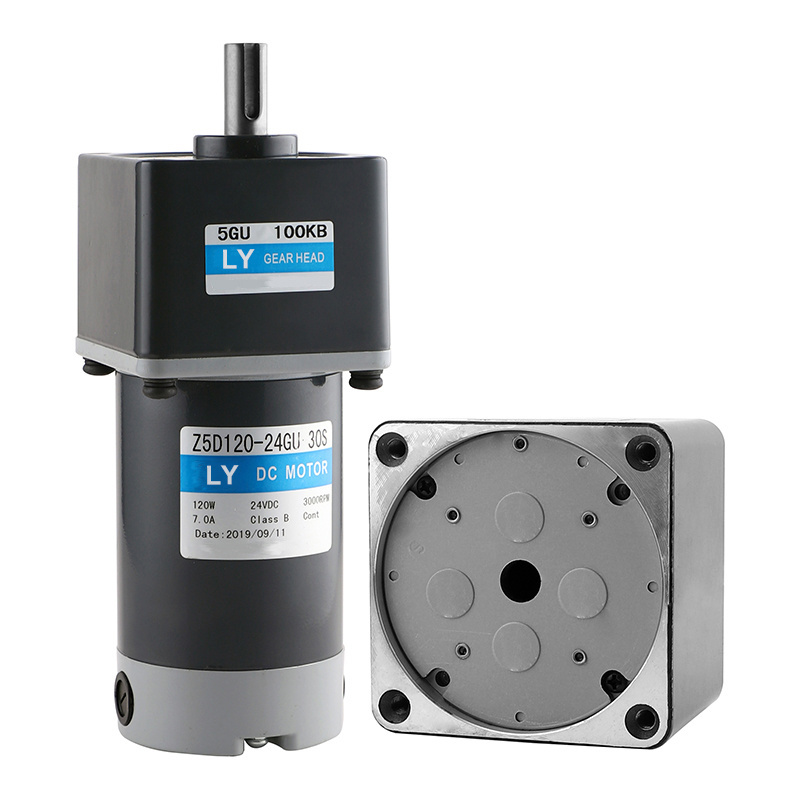

90mm 250w cheap price mini dc gear motor bush 24v dc motor with gearbox for Vending machine
Specification
Motor Performance Parameters
|
Model
|
Voltage(v)
|
Out put Power(w)
|
No-load Parameters
|
|
Load Parameters
|
|
|
Brush Life(H)
|
Motor Weight(Kg)
|
|||
|
|
|
|
Speed(r/min)
|
Current(A)
|
Speed(r/min)
|
Torque(mN.m)
|
Current(A)
|
|
|
|||
|
Z5D120-24*
|
24
|
120
|
3200
|
1.2Max
|
2600
|
441
|
7
|
2000
|
2.2
|
|||
|
Z55D250-24*
|
24
|
250
|
3400
|
3.0Max
|
3000
|
796
|
16
|
2000
|
3.2
|
|||
Motor voltage power and speed will be customized according to your requestment under the allowed circumstance of adoptable dimension.
Parallel Shaft Gearhead（Sold Separately）
|
Gearhead Type
|
|
Gearhead Model
|
Gear Ratio
|
|
|
|||
|
Long Life.Low Noise
|
|
5GU*K
|
3、 3.6、 5、 6、 7.5、 9、 12.5、 15、 18、 25、 30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
5GU10XK(Mid-gearbox)
|
|
|
|
|||
Allowance Torque Unit: Upside(N.m) / Belowside(kgf.cm)
|
Type
|
Gear Ratio
|
3
|
3.6
|
5
|
6
|
7.5
|
9
|
10
|
12.5
|
|
|
Speed(r/min)
|
1000
|
833
|
600
|
500
|
400
|
333
|
300
|
240
|
|
Z55D250-24GU
|
5GU□KB
|
1.93
|
2.32
|
3.22
|
3.87
|
4.83
|
5.8
|
5.8
|
7.25
|
|
|
|
19
|
22.7
|
31.6
|
37.9
|
47.4
|
56.9
|
56.9
|
71.1
|
|
Type
|
Gear Ratio
|
15
|
18
|
20
|
25
|
30
|
36
|
40
|
50
|
|
|
Speed(r/min)
|
200
|
167
|
150
|
120
|
100
|
83
|
75
|
60
|
|
Z55D250-24GU
|
5GU□KB
|
8.7
|
10.4
|
10.4
|
13.1
|
15.7
|
18.8
|
20
|
20
|
|
|
|
85.3
|
102
|
102
|
128
|
154
|
184
|
200
|
200
|
|
Type
|
Gear Ratio
|
60
|
75
|
90
|
100
|
120
|
150
|
180
|
200
|
|
|
Speed(r/min)
|
50
|
40
|
33
|
30
|
25
|
20
|
17
|
15
|
|
Z55D250-24GU
|
5GU□KB
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
|
|
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
Installation Dimensions of 90mm 120/250w dc gear motor and gearbox:
Shaft Section of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
Shaft Section of Round Shaft Type
Decimal gearhead
It can be connected to GU pinion shaft type
5GU10X
Flange Mounting Reducer
It can be mounted on GU
type
gear shaft
5GU
□K
More Details
Applications
DC gear motor often used in the occasion of starting and speed regulation, such as electric toy car, massage equipment, oil valve, automatic office machine, packaging machine, automatic curtain, vending machine, medical equipment and so on.
Packing & Delivery
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirements
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirements
