Quick Details
-
Market Segement:
-
Highway transportatopn
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
28500
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
BEIBEN
-
Place of Origin:
-
Inner Mongolia, China
-
Dimensions (L x W x H) (mm):
-
8630X3600X3950mm
-
Cargo Tank Dimension:
-
8630X3600X3950mm
-
Product name:
-
BEIBEN 6x4 25ton brand new man diesel tipper trucks
-
Engine:
-
WD615.47
-
Tire type:
-
radial tire
-
Transmission:
-
HW19710
-
Color:
-
Customer's Request
-
Horse power:
-
290/330/340/360/380/420
-
Driving type:
-
Left Hand Drive
-
Max. speed (km/h):
-
42km/h
-
Loading capacity:
-
21-70 TON
-
Capacity (Load):
-
61 - 70t
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Highway transportatopn
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
28500
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
BEIBEN
-
Place of Origin:
-
Inner Mongolia, China
-
Dimensions (L x W x H) (mm):
-
8630X3600X3950mm
-
Cargo Tank Dimension:
-
8630X3600X3950mm
-
Product name:
-
BEIBEN 6x4 25ton brand new man diesel tipper trucks
-
Engine:
-
WD615.47
-
Tire type:
-
radial tire
-
Transmission:
-
HW19710
-
Color:
-
Customer's Request
-
Horse power:
-
290/330/340/360/380/420
-
Driving type:
-
Left Hand Drive
-
Max. speed (km/h):
-
42km/h
-
Loading capacity:
-
21-70 TON
-
Capacity (Load):
-
61 - 70t

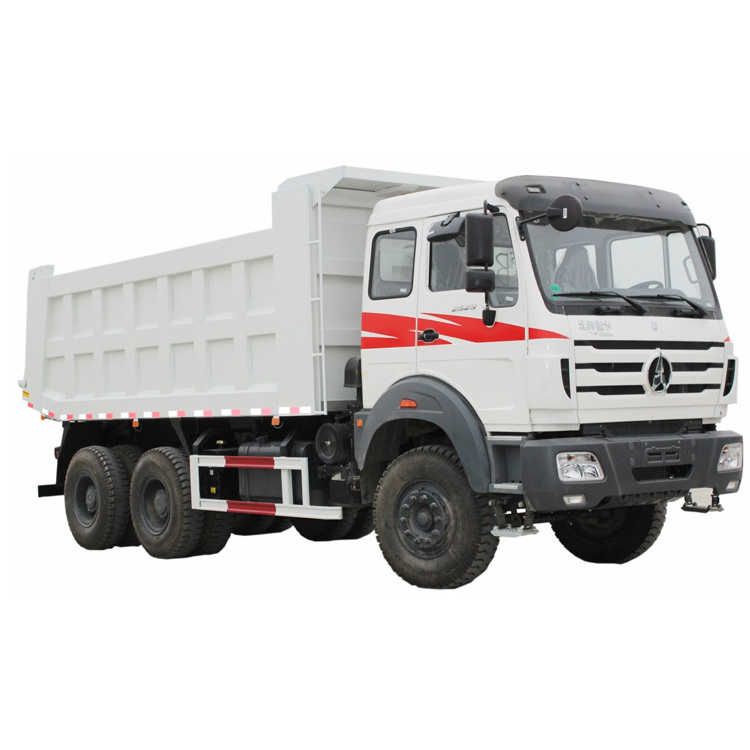

BEIBEN 6x4 25ton brand new man diesel tipper trucks
Our company will offer you the high quality proudcts with a low price, Quick delivery,and professional after-sale service.
Product Description:
1.The vehicles adopts offset driving cabs with single door and single seat, used for mining.
2.The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations.
3.The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams.
4.The axle technique unique of features such as high reliability, fuel economy, high attendance rate, strengthened structure, all making it suitable for the transportation of heavy goods , used as engineering machinery, under poor working condition such as in mine.
Special Features:
BEIEBN Dump truck:
Driving type:4x2,4x4 6x4,6x6,8x4,10x6
Engine: 266hp, 290hp, 300hp, 336hp,340hp, 350hp, 371hp, 375hp, 380hp
Engine power: EURO III, EURO IV.
Product list:
1. BEIBEN tippers:
BEIBEN 4x2 tipper; BEIBEN 6x4 tipper; BEIBEN 8x4 tipper, BEIBEN 6x6 tipper, BEIBEN 10x6 tipper.
2. BEIBEN concrete mixers:
BEIBEN 6x4 concrete mixers; BEIBEN 8x4 concrete mixers. Including 7m3, 8m3, 9m3, 10m3, 11m3 and 12m3.
3. BEIBEN tractors:
BEIBEN 4x2 tractors; BEIBEN 6x4 tractors.
Engine power for the above heavy duty trucks is 266HP, 290HP, 336HP, 371HP and 420HP.
| model | 9042KK | ||||
| driving model | 6×4 | ||||
| gross weight | 90000 | ||||
| (Kg) curb weight | 28500 | ||||
| (Kg)load capacity | 41500 | ||||
| (Kg)Front\rear axle load capacity | 25000/40000/40000 | ||||
| exterior dimension | 8630X3600X3950 | ||||
| (mm) wheelbase | 3775+1700 | ||||
| (mm) threadbase | 2866/2690 | ||||
| (mm) front/rear suspension | 1590/1535 | ||||
| (Km/h)top speed | 42 | ||||
| max. slope climbing capacity | 30% | ||||
| (m) turnning diameter | ≤23 | ||||
| approching angle | ≥30° | ||||
| departure angle | ≥40° | ||||
| (mm) min.ground clearance | 330 | ||||
| engine | model | WD12.420 | |||
| type | water-cooled,6 cylinders in line,tubocharge,intercool | ||||
| stroke x broe | 126×155 | ||||
| (L) displacement | 11.596 | ||||
| (KW/r.p.m)rated power | 309/2200 | ||||
| (N.m/r.p.m)max. torque | 1750/1300-1600 | ||||
| clutch | double 400 | ||||
What we can do for customers:
1. The satisfied product with high level standard;
2. The full aspect service from order to shipping;
3. Give customer most suitable advice when customer has special needs for your transportation or construction;
4. Help customer to get the related spare parts of trailer or tractors if customer needs.
If you need more information, please feel free to contact me!
