Quick Details
-
Weight (KG):
-
4.9 KG
-
Laser type:
-
CO2 laser
-
Output power:
-
30w-50w
-
AC frequency:
-
47---440Hz
-
Max input power:
-
250W
-
Max output voltage:
-
DC 25KV
-
Max output current:
-
DC 20mA
-
Normal working hours:
-
≥10000 hours
-
Cooling form:
-
Forced Air Cooling
-
Shell color:
-
Black
-
keyword:
-
laser power supply,co2 power supply,hy series laser power supply
Quick Details
-
Place of Origin:
-
Shandong, China
-
Spare Parts Type:
-
co2 laser power
-
Brand Name:
-
LASERPWR
-
Weight (KG):
-
4.9 KG
-
Laser type:
-
CO2 laser
-
Output power:
-
30w-50w
-
AC frequency:
-
47---440Hz
-
Max input power:
-
250W
-
Max output voltage:
-
DC 25KV
-
Max output current:
-
DC 20mA
-
Normal working hours:
-
≥10000 hours
-
Cooling form:
-
Forced Air Cooling
-
Shell color:
-
Black
-
keyword:
-
laser power supply,co2 power supply,hy series laser power supply

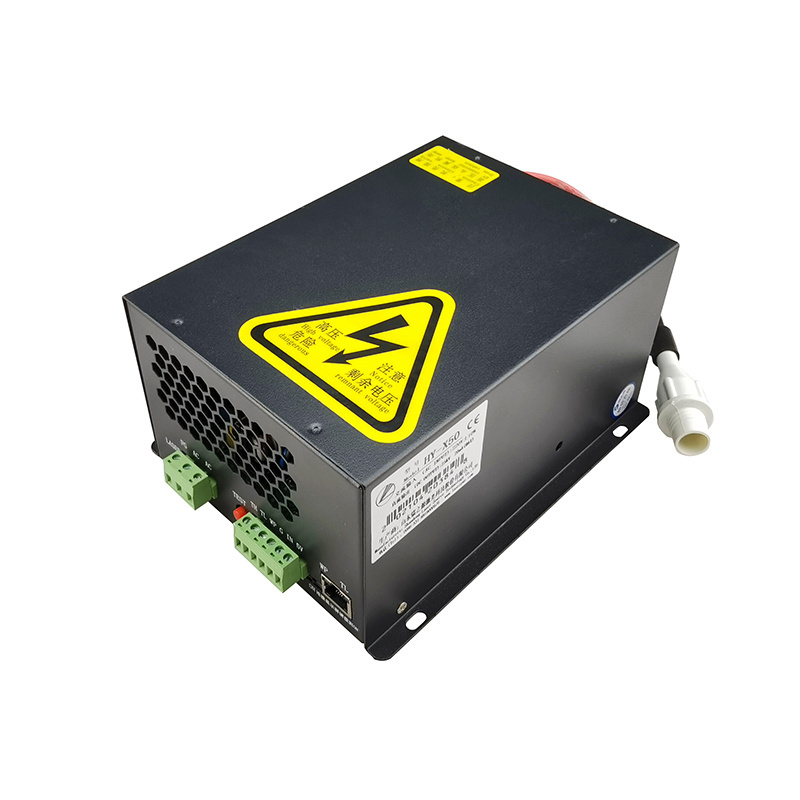

HY Series CO2 Laser Power Supply For CO2 Laser Machine 30w 40w 50w For Laser Tube Engraving Cutting Equipment Parts
MODEL:HY-X50/XA50
Keywords:
laser power supply,co2 power supply,hy series laser power supply
Product Features
Strong versatility: small size, light weight, consistent installation ports for different power supplies, easy to install and
replace, widely used, and sell well at home and abroad.
Ø Good compatibility: it can perfectly match the vast majority of 30W-150W CO2 lasers at home and abroad.
XA series:
(1) Self-contained liquid crystal display: digital display of current size, light output indication, light output signal and water
protection signal can indicate normal and faulty signals, and the integrated potentiometer can manually adjust the current.
(2) The size of the installation hole is the same: the size of the opening of the liquid crystal display screen and the original
pointer ammeter are the same, and there is no need to open the hole separately.
Ø The safety of laser equipment is higher: it has the function of open circuit protection, which significantly prolongs the life
of the power supply.
Ø Simple laser power control: it can be controlled by 0~5V analog signal or by 5V PWM signal.
Ø The cutting machine and the engraving machine are compatible: the cutting power is sufficient and the speed is fast; the
engraving and marking effect is good, and the engraving bottom surface is smooth.
Ø The power supply itself has a manual light output test function, which is convenient for customers to maintain on-site.
Ø With status indicator light, fault diagnosis is easy.
Application areas:
replace, widely used, and sell well at home and abroad.
Ø Good compatibility: it can perfectly match the vast majority of 30W-150W CO2 lasers at home and abroad.
XA series:
(1) Self-contained liquid crystal display: digital display of current size, light output indication, light output signal and water
protection signal can indicate normal and faulty signals, and the integrated potentiometer can manually adjust the current.
(2) The size of the installation hole is the same: the size of the opening of the liquid crystal display screen and the original
pointer ammeter are the same, and there is no need to open the hole separately.
Ø The safety of laser equipment is higher: it has the function of open circuit protection, which significantly prolongs the life
of the power supply.
Ø Simple laser power control: it can be controlled by 0~5V analog signal or by 5V PWM signal.
Ø The cutting machine and the engraving machine are compatible: the cutting power is sufficient and the speed is fast; the
engraving and marking effect is good, and the engraving bottom surface is smooth.
Ø The power supply itself has a manual light output test function, which is convenient for customers to maintain on-site.
Ø With status indicator light, fault diagnosis is easy.
Application areas:
laser engraving machine, laser cutting machine, laser marking machine, leather cutting machine, clothing
cutting machine, shoe pattern cutting machine, advertising engraving machine, leather engraving machine, glass engraving machine,
laser bag opening machine, laser punching machine etc.
cutting machine, shoe pattern cutting machine, advertising engraving machine, leather engraving machine, glass engraving machine,
laser bag opening machine, laser punching machine etc.
Product Pictures
Product Parameters
|
Model
|
X50/XA50
|
X60/XA60
|
X80/XA80
|
X100/XA100
|
X150/ XA150
|
||||
|
Input voltage
|
AC220V（110V can be customized ）
|
|
|
|
|
||||
|
AC frequency
|
47---440Hz
|
|
|
|
|
||||
|
Max input power
|
250W
|
300W
|
450W
|
600W
|
750W
|
||||
|
Max input current
|
1A
|
1.5A
|
2.3A
|
2.7A
|
3.5A
|
||||
|
Max output voltage
|
DC 25KV
|
DC 25KV
|
DC 30KV
|
DC 35KV
|
DC 40KV
|
||||
|
Max output current
|
DC 20mA
|
DC 22mA
|
DC 25mA
|
DC 32mA
|
DC 35mA
|
||||
|
Efficient
|
≥90%（ Full Load ）
|
|
|
|
|
||||
|
Normal working hours
|
≥10000 hours
|
|
|
|
|
||||
|
Responding speed
|
≤1mS（The time from the switch signal given to the output current rising to 90% of the set current）
|
|
|
|
|
||||
|
Pressure resistance
|
Input-Output ,Input-Shell:AC1500V 10mA 60s；The output negative electrode is connected to the Shell.
|
|
|
|
|
||||
|
Use environment
|
Working Temperature（-10~40）℃ ，relative humidity：≤90%
|
|
|
|
|
||||
|
Cooling form
|
Forced Air Cooling
|
|
|
|
|
||||
|
Matching laser tube power
|
30-50W
|
50-60W
|
60-80W
|
80-100W
|
130-150W
|
||||
|
Dimensions L*W*H(mm)
|
194*158*90
|
194*158*90
|
228*158*90
|
263*158*90
|
345*158*90
|
||||
|
Shell color
|
Black
|
Black
|
Black
|
Black
|
Black
|
||||
|
Net weight (KG)
|
1.7
|
1.7
|
2.2
|
2.5
|
3.6
|
||||
Install Dimension Drawing
