- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
T-18B
-
Dimension:
-
W765mm*D698mm*H 570mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
1000W
-
Format:
-
N/A
-
Product name:
-
Single 18 inch subwoofer
-
Max power:
-
2000W
-
Peak power:
-
4000W
-
Nominal impedance:
-
8 homs
-
Max SPL(Pmax@1m):
-
130dB@800w (133dB@1600w)
-
Sensitivity(1W@1m):
-
101dB(1W@1m)
-
Frequency response:
-
45Hz-300Hz
-
Speaker component:
-
LF Driver 18 inch(455mm Driver 100mmVoice coil )*1
-
Enclosure:
-
18mm High quality plywood and metal mesh
-
Application:
-
The ultra-low frequency part of the sound amplification system
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thinuna
-
Model Number:
-
T-18B
-
Dimension:
-
W765mm*D698mm*H 570mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
1000W
-
Format:
-
N/A
-
Product name:
-
Single 18 inch subwoofer
-
Max power:
-
2000W
-
Peak power:
-
4000W
-
Nominal impedance:
-
8 homs
-
Max SPL(Pmax@1m):
-
130dB@800w (133dB@1600w)
-
Sensitivity(1W@1m):
-
101dB(1W@1m)
-
Frequency response:
-
45Hz-300Hz
-
Speaker component:
-
LF Driver 18 inch(455mm Driver 100mmVoice coil )*1
-
Enclosure:
-
18mm High quality plywood and metal mesh
-
Application:
-
The ultra-low frequency part of the sound amplification system

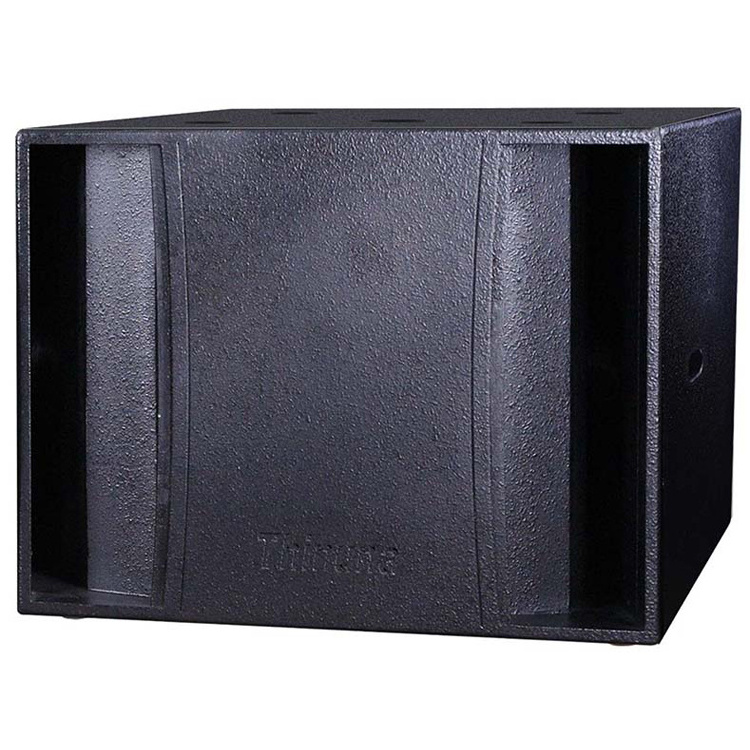

Thinuna T-18B Heavy-duty Sound Reinforcement Woofer Ultra-low Frequency 18 Inch Subwoofer for Multi-function Hall
Products Description
Specification
|
System type：
|
18 inch subwoofer
|
|
Rated power：
|
1000W
|
|
Max power：
|
2000W
|
|
Peak power：
|
4000W
|
|
Nominal impedance：
|
8Ω
|
|
Recommended power amplifier output rating：
|
1000W—1400W@8Ω
|
|
Nominal sensitivity（1W@1m）：
|
101dB（1W@1m）
|
|
Max SPL（Pmax@1m）：
|
130dB@800w (133dB@1600w)
|
|
Frequency response ：
|
45Hz—300Hz
|
|
Nominal coverage pattern （-6dB）：
|
360°H × 360°V
|
|
speaker component：
|
LF Driver 18″（455mm Driver 100mmVoice coil ）×1
|
|
|
3″（75mm voice coil）HF driver ×1
|
|
Crossover modes：
|
Passive
|
|
Connector：
|
SPEAKON NL SPEAKON NL4×2 PIN1+/2+POS. PIN1-/2-NEG）
|
|
Enclosure：
|
18mm（0.7″）High quality plywood
|
|
Dimensions：
|
W765 x D698 x H 570 mm
|
|
Color：
|
Default colors: Black, but it's customizable.
|
|
Weight（each）：
|
36 kgs
|
|
Shipping Weight：
|
40 kgs
|
|
Reference applications:
|
The ultra-low frequency part of the sound amplification system
|
Our Main Product
About us
Project Solutions
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
Recommend Products
The main products：
Speaker：
Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.
Amplifier：
Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.
Public Address System：
IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
Production Flow
Our customer feedback
Packing & Delivery
FAQ
Q1. Can I have a sample order for loudspeaker?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2-5 days, mass production time needs 3-4 weeks for order quantity more than
Q3. Do you have any MOQ limit for loudspeaker order?
A: 5PCS MOQ, 2pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Sea. It usually takes 30-45 days to arrive. Airline also optional.
Q5. How to proceed an order for loudspeaker?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on loudspeaker product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
