Quick Details
-
No-Load Speed:
-
13R/MIN
-
Weight:
-
150kg
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FUYANGHE
-
Model Number:
-
JC-V
-
Max. Torque:
-
2578NM
-
Frequency:
-
50-60HZ
-
Dimensions:
-
232*34*45cm
-
Product name:
-
ELECTRO MECHANICAL WRENCH FOR U BOLT NUTS OF TRUCK BUS SEMI TRAILERS
-
Color:
-
red and green or according customer's request
-
Application:
-
Spring plate V type screw assembly and disassembly
-
Motor power:
-
4.0KW
-
Power supply:
-
380V,50HZ
-
Surface treatment:
-
spray paint
-
Material:
-
steel,round steel,frequency welded pipe
-
Advantage:
-
labor saving,low speed,large torque,steering flexible
-
Our Factory:
-
28 Years Rich Experience
Quick Details
-
Type:
-
Torque Wrench
-
Rated Voltage:
-
380v
-
Rated Input Power:
-
4.0KW
-
No-Load Speed:
-
13R/MIN
-
Weight:
-
150kg
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FUYANGHE
-
Model Number:
-
JC-V
-
Max. Torque:
-
2578NM
-
Frequency:
-
50-60HZ
-
Dimensions:
-
232*34*45cm
-
Product name:
-
ELECTRO MECHANICAL WRENCH FOR U BOLT NUTS OF TRUCK BUS SEMI TRAILERS
-
Color:
-
red and green or according customer's request
-
Application:
-
Spring plate V type screw assembly and disassembly
-
Motor power:
-
4.0KW
-
Power supply:
-
380V,50HZ
-
Surface treatment:
-
spray paint
-
Material:
-
steel,round steel,frequency welded pipe
-
Advantage:
-
labor saving,low speed,large torque,steering flexible
-
Our Factory:
-
28 Years Rich Experience

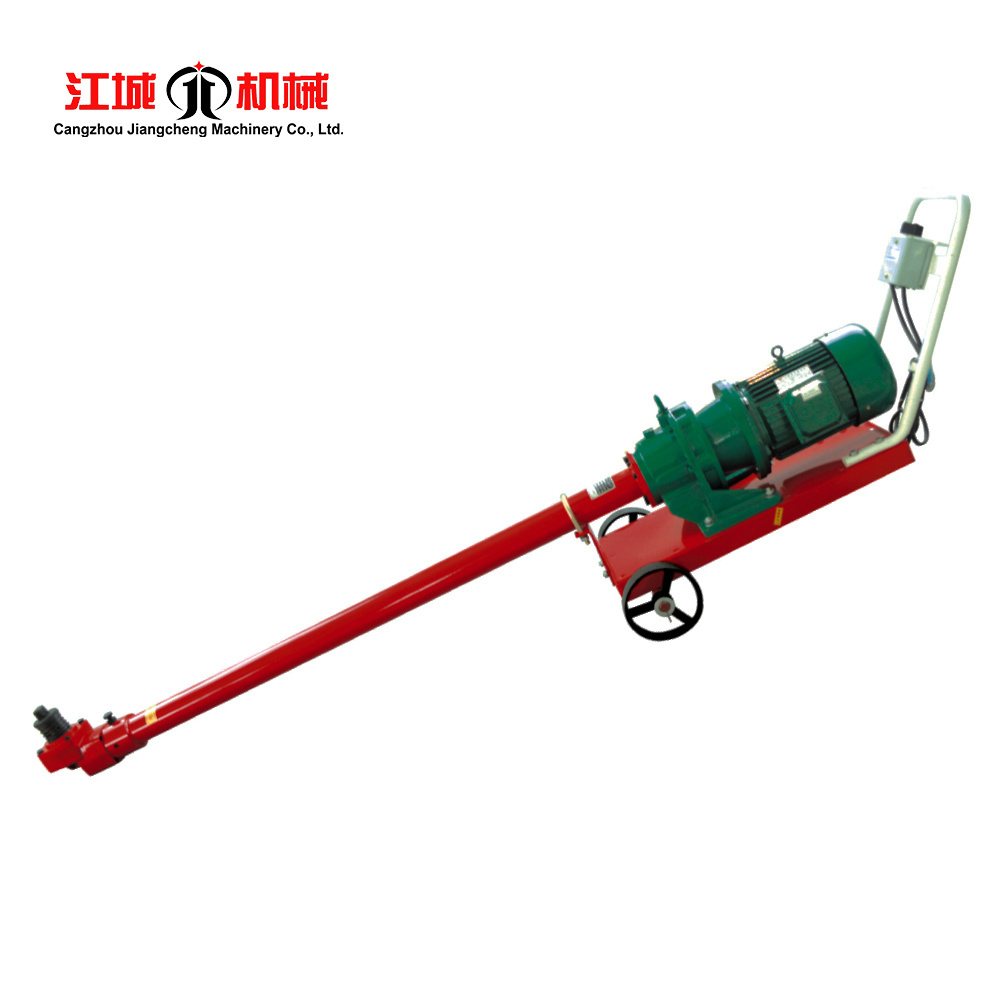

ELECTRO MECHANICAL WRENCH FOR U BOLT NUTS OF TRUCK BUS SEMI TRAILERS
Electric truck torque wrench series products, applicable to all kinds of automobile spring plate, dismounting U screws, can greatly improve the repair efficiency and reduce the labor intensity of the workers, including type JC-IIIKA, type JC-IV and type JC-VKA with super low speed, high torque, multi range, convenient operation, safe and reliable etc. point, and adjust the position after disassembling tyre nut.
| Product name | torque wrench |
| model | JC-IV |
| Output speed | 13 r/min |
| Maximum torque | 2278NM |
| Motor power | 4.0KW |
| N.W./G.W. | 130/140KG |
| Packing size | 232*34*45cm |
Machine parts
Workshop
Applicatio
Operation method
1 before starting to check whether the power supply voltage is in line with the requirements, no error when the power can be switched on.
2.The positive and negative direction of the first empty try machine before the operation.
3 the sleeve head is required in the square on the head or six flowers on the arrow, pneumatic hand to head tilt, rotate head nut, and then press the correct direction of the boot, a complete disassembly, not shock. (caused by mechanical damage due to the impact of the consequences).
1. Packing type:1 pcs packed in wooden case , also be packaged according to customer's requirements.
2. Modes of transportation:by sea ,by air or land transportation, Of course, a small amount can also by Express.
