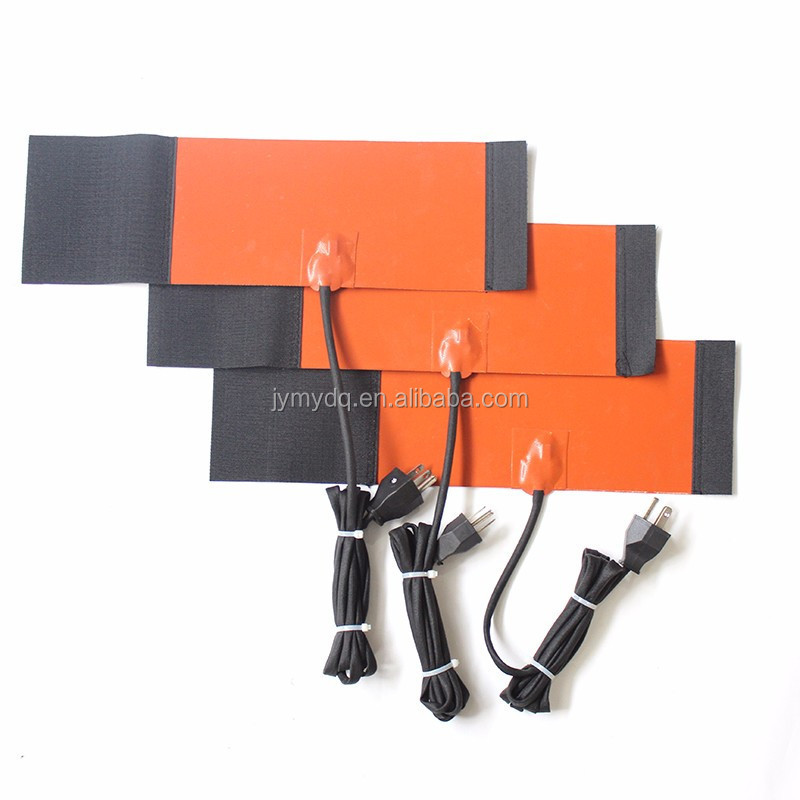

New 200 Watt 12 Volt V Silicone Pad Tank heater for waste veggie vegetable oil WVO Biodiesel Diesel fuel

Porduct Feature of silicon rubber heater:

1.Maximum temperature resistant of insulant: 300°C

2.Maximum Operating Temperatures: 250 °C

3.Power deviation: 5%

4.Insulating resistance: ≥ 5 MΩ

5.Compressive strength: 1500V/5S

6.Size:any size,by cutomized

7.Fast heat diffusion, Uniform heat transfer, Directly heat objecs on high thermal efficiency, high strength, long service life,work safe.

Data of Industrial silicone rubber heater:

1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.

2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.

3. Water, acid and alkali resistance, high-strength of electric insulation.

4. High mechanical strength with 100kg/cm² mechanical pressure.

5. Small size: Small space occupied when applying this heating product.

6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.

7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.

8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.

9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.

Application of Industrial silicone rubber heater:

1. Industrial equipment, pipelines, barrels, tanks, etc.

2. Outdoors telecommunication equipment

3. Medical equipment and devices

4. Outdoors electronic devices

5.Thermal imaging of imaging equipment

6. Case protection under cold and moist environment

7. Industrial ovens and thermal processing equipment

8. Ventilator supports

9. Laminating equipment

10. Vessels

Installment of silicon rubber heater:

3M adhesive                               Steel spring                                      Velcro

Temperature controller of silicon rubber heater:

Dial controller                                                                        Digital controller

When inquire of silicon rubber heater, please specify:

1.Size of the heater you need;

2.Power or temperature of the heater you need;

3.Working environment;

4.Quantity of the heater you need;

5.Special requirements if you have.

1. All Products one year warranty and all goods on appro for 3 months .

2. Fast delivery and competitive price.

3. We offer FREE assistance in heater design to achieve an ideal thermal heating solution for your application.

4. Custom made size,shape and voltage&wattage.
