Quick Details
-
Size:
-
4.5 inch 115mm
-
Place of Origin:
-
Henan, China
-
Product name:
-
turbo T shape diamond saw blade
-
Application:
-
cutting hard stone,such as granite and sandtone
-
Blade material:
-
Alloy Steel
-
Cutting machinery:
-
hand manual angle grinder
-
Diamond blade type:
-
turbo segmented with protectsegment
-
Hot/cold processing:
-
durable high speed cutting saw blade
-
Saw blade diameter:
-
105mm-400mm, 4''-16''
-
Inner hole size:
-
22.23mm or as per require
-
Manufacturing processing:
-
hot pressing sintering
-
Certification:
-
ISO9001:2008
Quick Details
-
Type:
-
SAW BLADE
-
Blade Material:
-
Diamond
-
Finishing:
-
diamond
-
Size:
-
4.5 inch 115mm
-
Place of Origin:
-
Henan, China
-
Product name:
-
turbo T shape diamond saw blade
-
Application:
-
cutting hard stone,such as granite and sandtone
-
Blade material:
-
Alloy Steel
-
Cutting machinery:
-
hand manual angle grinder
-
Diamond blade type:
-
turbo segmented with protectsegment
-
Hot/cold processing:
-
durable high speed cutting saw blade
-
Saw blade diameter:
-
105mm-400mm, 4''-16''
-
Inner hole size:
-
22.23mm or as per require
-
Manufacturing processing:
-
hot pressing sintering
-
Certification:
-
ISO9001:2008

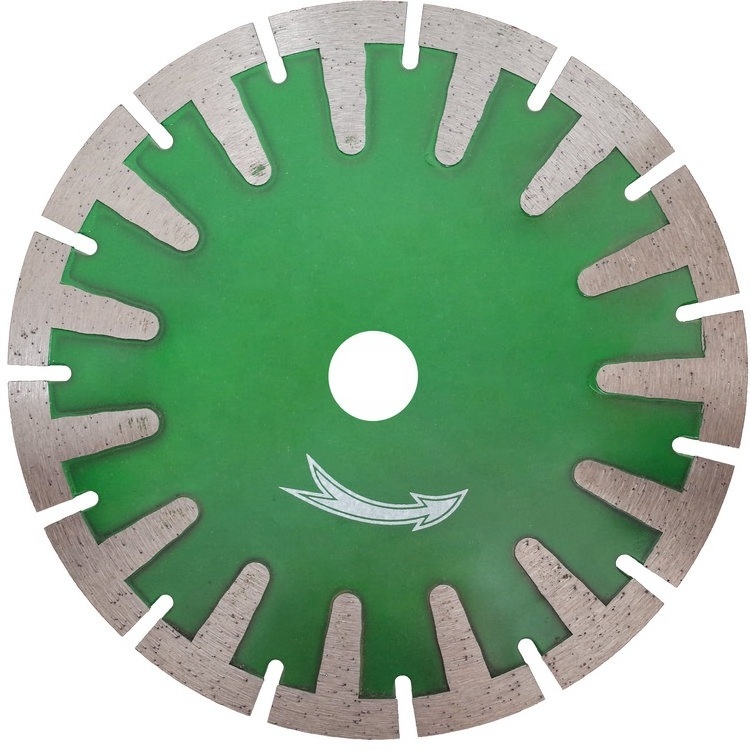

Concave Turbo Segmented T Shape Diamond Saw Blade 125mm 115mm for granite marble
Introduction of diamond cutting T shape segment saw blade :
Wave turbo Saw Blade with protective teeth. Wave turbo saw blade, perfect blade for cutting granite, roof tiles, bricks, concrete and stones, etc. Wave parts on the steel discs make heat releasing and dust ejecting more effective. It helps the blades to cut the materials more faster. Outer diameter from 105mm to 230mm. Center hole of sintered wave turbo blade: 16mm, 20mm, 22.23mm, also can do with Flange M14 or 5/8"-11.
| Material | diamond blade are made of good metal bond with high quality diamond grit |
| process: | sintered diamond saw blade for general purpose by cold pressed |
| Equipment | for use on electric circular saw and angle grinder |
| Application: | suitalbe for free cutting and dry cutting on general purpose material,reinforced concrete ,masonry and brick,abrasive materil,natural and artificial stone,building material,hard artificial stone ,ceramics,granite ,marlbe ,roof-tile,aggregated concrete,drywall,construction materials,brickwork,natural stone |
| Feature: | Suitalbe for drilling on cured concrte ,granite ,marble and other construction materials.We can provide 2 quality level ,class A and class B.Class A can provide good cutting speed and good lifespan.Class B can provide faster cutting speed and balance lifespan . We supply different quality grades diamond blade depend on the local stone concrete feature. |
| Advantage: | Long working life and superior performance,Excellent performance on hard construction material ,reinforced concrete ,brick stone ,smooth cutting on variety tile ,masonry and stone. |
| packing : | double blister/Blister card/Color box,then carton/pallet,100pcs/carton |
| MOQ: | 100pcs |
| ETA: | 20 days after deposit |
| Sample: | Available |
Advantages of our diamond cutting T shape segment saw blade :
• Outer diameter can be done from 105mm to 230mm
• Segment height can be done with 7mm or 10mm.
• Center hole can be done with 16mm, 20mm, 22.23mm, 25.4mm.
• Machine: Angle grinder, Table saw, Hand held saw.
• Super Fast Cut with Minimum Chipping, even on dry cut
• Use on Angle Grinder, Wet Stone Saw or Circular Saw
• Cuts Granite, Marble, Stone, concrete, etc.
• Use dry and wet cutting.
• Balance the blade and protect the blank.
Available specifications:
Different designs of diamond cutting segment saw blade :
According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc
As a leading manufacturer in professional diamond tools,Henan Drills-King Mining Technology Co.,Ltd specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As an ISO9001: 2000 certified company, Henan Drills-King Mining Technology Co.,Ltd has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Welcome your inquiry about our diamond saw blades!
