Application：Power region,electric transmission and distribution system
FOB Ningbo or Shanghai
- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
copper electric cable
-
voltage:
-
0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 19/33KV, 26/35KV
-
core:
-
1core 2core 3core 4core 5cor ...
-
size:
-
16mm 70mm 120mm 300mm...
-
armored:
-
steel wire(swa) steel tape(sta)
-
package:
-
wooden drum/steel drum
-
CE:
-
CE ROHS ISO
-
Price:
-
1$
-
service:
-
door to door cervice
-
market:
-
worldwide africa asia austrila amrica
-
brand:
-
YJ OEM
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
copper electric cable
-
voltage:
-
0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 19/33KV, 26/35KV
-
core:
-
1core 2core 3core 4core 5cor ...
-
size:
-
16mm 70mm 120mm 300mm...
-
armored:
-
steel wire(swa) steel tape(sta)
-
package:
-
wooden drum/steel drum
-
CE:
-
CE ROHS ISO
-
Price:
-
1$
-
service:
-
door to door cervice
-
market:
-
worldwide africa asia austrila amrica
-
brand:
-
YJ OEM
Products Description

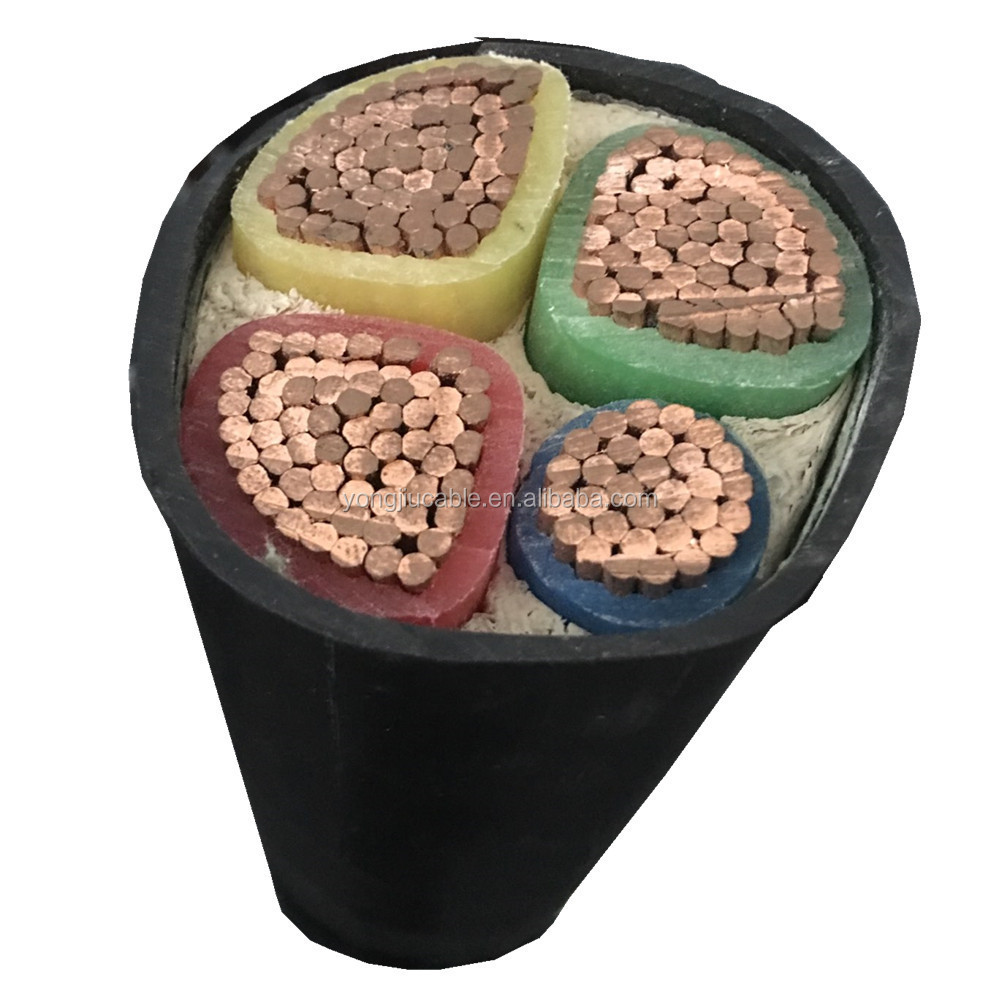

XLPE Power Cable
I
tem:
YJV/YJLV
Standard: BS6346/ IEC60502
Voltage: 0.6/1 KV
Conductor: Cu/ ALUMINUM
Material: XLPE/ PVC
Section: 1*10 mm²—4*240+120 mm²
Technicale Date
|
Nominal corss section mm2
|
Insulation thickness mm
|
Sheath thickness mm
|
Ovreall Diameter mm
|
Weight Copper kg/km
|
Weight Aluminum kg/km
|
|
1x10
|
0.7
|
1.5
|
8
|
155
|
95
|
|
1x16
|
0.7
|
1.5
|
9
|
220
|
120
|
|
1x25
|
0.9
|
1.5
|
10
|
345
|
190
|
|
1x35
|
0.9
|
1.5
|
12
|
424
|
207
|
|
2x35
|
0.9
|
1.8
|
20.2
|
1006
|
556
|
|
2x50
|
1
|
1.8
|
22.2
|
1365
|
722
|
|
2x70
|
1.1
|
1.8
|
24.8
|
1872
|
972
|
|
2x95
|
1.1
|
1.8
|
27.4
|
2475
|
1253
|
|
3x95
|
1.1
|
2
|
34
|
3020
|
1240
|
|
3x120
|
1.2
|
2.5
|
38
|
3790
|
1540
|
|
3x150
|
1.4
|
2.5
|
42
|
4750
|
1940
|
|
4x150
|
1.4
|
3
|
46
|
6238
|
2571
|
|
4x185
|
1.6
|
3
|
51
|
7562
|
3091
|
|
5x240
|
1.7
|
3
|
68.8
|
13130
|
5570
|
|
3x50+1x25
|
1
|
2
|
28
|
1901
|
816
|
|
3x120+2x70
|
1.2
|
2.5
|
45.4
|
5437
|
2287
|
|
4x240+1x120
|
1.7
|
3
|
68.2
|
11567
|
4763
|
