Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K (Soft Warm White)
-
Product Weight（kg）:
-
0.43
-
Input Voltage(V):
-
100-240V
-
Lamp Luminous Flux(lm):
-
430
-
Model Number:
-
LDC335
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PASSUN
-
Product name:
-
IP65 outdoor LED downlight Waterproof recessed outdoor downlight
-
Lamp type:
-
COB
-
Power:
-
5W
-
Beam angle(standard):
-
38 degree
-
Beam angle(optional):
-
15D/24D/38D/60D
-
Color Temperature:
-
3000K/4000K/6000K
-
Finishing:
-
Black Painting
-
Packing:
-
30pcs/carton
-
Certification:
-
CE LVD RoHS VDE
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
72
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Downlights
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K (Soft Warm White)
-
Product Weight（kg）:
-
0.43
-
Input Voltage(V):
-
100-240V
-
Lamp Luminous Flux(lm):
-
430
-
Model Number:
-
LDC335
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PASSUN
-
Product name:
-
IP65 outdoor LED downlight Waterproof recessed outdoor downlight
-
Lamp type:
-
COB
-
Power:
-
5W
-
Beam angle(standard):
-
38 degree
-
Beam angle(optional):
-
15D/24D/38D/60D
-
Color Temperature:
-
3000K/4000K/6000K
-
Finishing:
-
Black Painting
-
Packing:
-
30pcs/carton
-
Certification:
-
CE LVD RoHS VDE

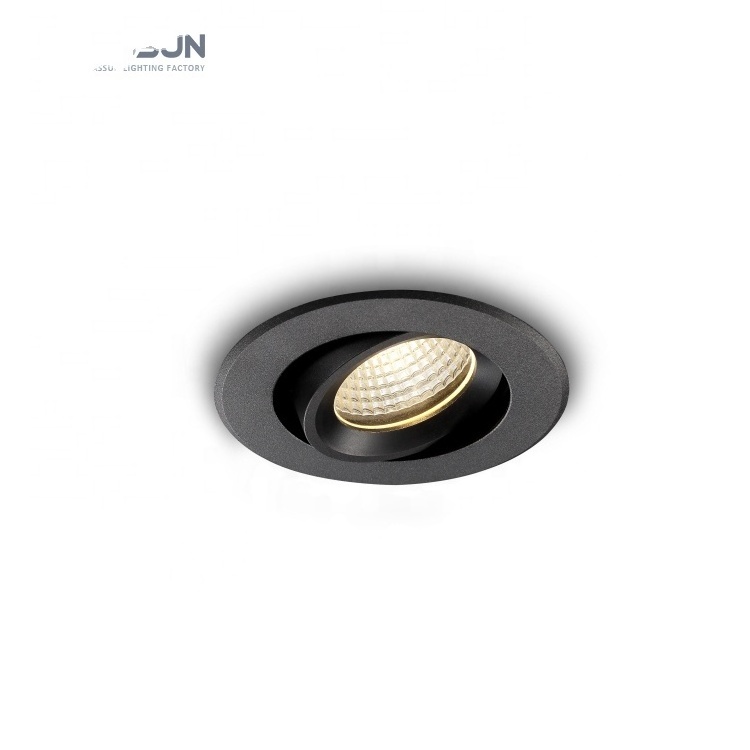

IP65 outdoor LED downlight Waterproof recessed outdoor downlight Rotatable led recessed spotlight
| Item no. |
LDC335 |
| Lamp type | COB |
| LED (watt) | 6W |
| CCT |
warm white 3000K / neutral white 4000K / cold white 6000K |
| CRI(Ra>) |
85 |
| LED driver | 6W IP67 |
| Output current | 600mA |
| Input | 100-240VAC |
| Frequency | 50/60Hz |
| luminous o/p | 430lm |
| Bearn angle | 38D |
| Material | aluminium |
| Finishing | black |
| IP rating | IP65 |
| Mounting | ceiling recessed /cut-off 80mm |
| Operating temp | -20 o ~+40 o |
| Life span | 50,000 hrs |
| Warranty | 5 years |
| Place of original | China |
| Certification | CE,EMC,LVD,TUV,ROHS |
| Brand Name | PASSUN |
| OEM available | |
For more info and placing a trial order,contact our sale manager. Send Inquiry Now
LED outdoor wall lights family
More latest product information,please contact with Leo
FOR PROJECT & TRAIL ORDER SUPPORTING FROM PASSUN LIGHTING FACTORY
NO MOQ
one piece each model available, CCT 3000K warm white, standard product from the warehouse.
Normally we will put 30-50 pieces good selling item in the stock.
CCT OPTIONAL
lamp type of XPE/COB,2700K/4000K/6000K,MOQ 5pcs/model, under it, extra cost $15/model
lamp type of SMD, 2700K/4000K/6000K,MOQ 30pcs/model, under it, extra cost $45/model
MORE FINISHING
1- painting , to change the color to black / white / concrete grey , MOQ 30pcs/model,
under it, extra cost $30/model
2- the pantone code required, MOQ 100pcs/model, and the cost more about $0.8/piece (more detail please contact with us)
3- anodized finishing changed to painting finishing (black / white / concrete grey) MOQ 30pcs/model, quantity under it, extra cost $30/model
4- anodized finishing optional, anodized black, brushed black, anodized silver, brushed silver, anodized gold, brushed gold, MOQ 30pcs/model, under it, extra cost $30/model
5- chrome plated or gold plate to changed to painting or anodized finishing, MOQ 30pcs
6- painting or anodized finishing to changed as chrome plated or gold plate, MOQ 100pcs
ODM AVAILABLE
1- design need turning and milling process, 100pcs each model for start production, no tooling fee.
2- products need made by spinning, available, MOQ 100pcs + tooling fee.
3- if aluminum profile mould need, minimum order quantity 200kgs raw materials + tooling charge.
4- hardware need stamping die, 100pcs each model acceptable, but it caused tooling charge.
5- for the design need die-casting mold / plastic mold , 300pcs each model + tooling fee for mass production.
6- the sample extra charge $80/design
ABOUT LEAD TIME FOR CUSTOM MADE SAMPLE
1-finishing changing, 7-10 days
2-size changing, 10-15 days
3-time of make tooling
spinning 15-20 days / stamping die 20-25 days / aluminum profile mould 25-30 days / die-casting mold / plastic mold need 35-45 days
PAYMENT TERMS
A. 30% deposit T/T when order is sealed and 70% T/T before shippment
B. 100% in advance if total value under $3000 an order
C. Payment method, by T/T / paypal / alibaba trade assurance
