Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
China
-
Product name:
-
swing gate opener
-
Power supply:
-
AC220V
-
Material:
-
Aluminum
-
Max gate weight:
-
500kg
-
Certificate:
-
CE Approved
-
Protection class:
-
IP45
-
Limit Switch:
-
Spring Limit Switch
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
NONE
-
Project Solution Capability:
-
NONE
-
Application:
-
Hotel
-
Place of Origin:
-
China
-
Product name:
-
swing gate opener
-
Power supply:
-
AC220V
-
Material:
-
Aluminum
-
Max gate weight:
-
500kg
-
Certificate:
-
CE Approved
-
Protection class:
-
IP45
-
Limit Switch:
-
Spring Limit Switch

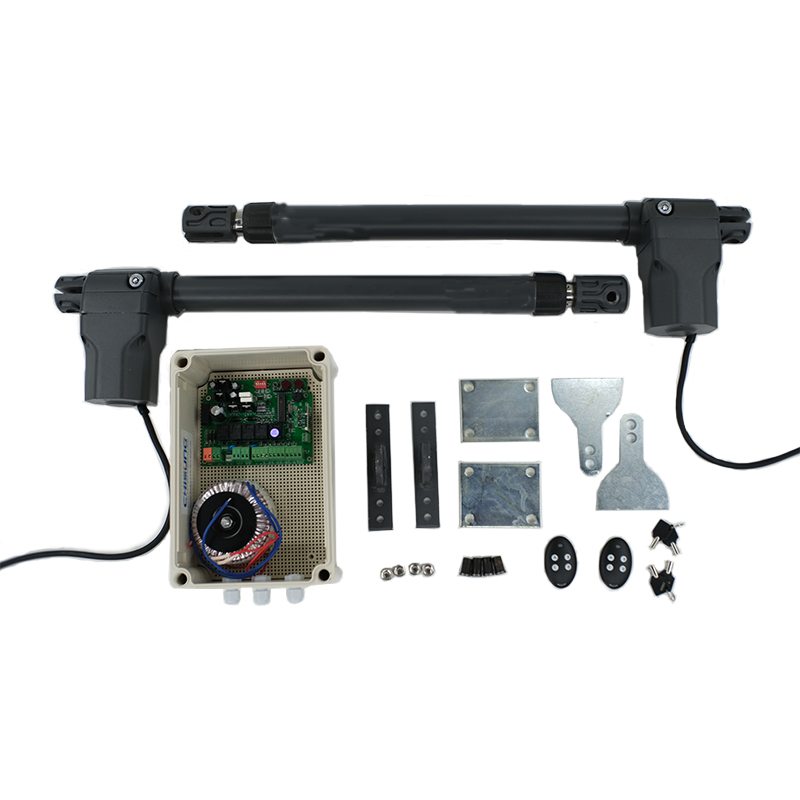

Products Description
L5 Main feature
1)Automation for swing gates Max. leaf size 3 m - 300 kg
2)Mechanically reliable thanks to the telescopic piston transmission and motor with 140°C thermal protection.
3)With Linear, the screw-on front and rear fixing brackets on the gear motor reduce installation times to a minimum.
4)The 1.5 m pre-wired cable makes electrical connection easy.
5)Powerful, quiet and compact sized.practical release handle with key-lock for manual operation.
6)Quick and simple to install, it can easily fit on almost any kind of swing gate.
7)Power supply 230V and 24V, for intensive use and emergency opening by battery pack in case of power-failure
Details Images
CARIN Gate Opener APP
1.Open the gate via mobile WIFI
2.Auto-learning work- cycle
3.Adjust the gate opener parameters on the mobile phone
4.Observe the gate situation in real time through the monitor
5.Share permissions with others to open and close the gate, learn programming and set parameters
Product Paramenters
|
Model
|
L5-DC-400
|
L5-DC-600
|
L5-AC-400
|
L5-AC-600
|
|
Power Supply
|
AC110/220
|
AC110/220
|
AC110/220
|
AC110/220
|
|
Motor
|
24V
|
24V
|
110/220
|
110/220
|
|
Current
|
5.2A
|
5.2A
|
3A/1.5A
|
3A/1.5A
|
|
Absorbed Power
|
80W
|
80W
|
320W
|
320W
|
|
Max leaf Length
|
2.5M
|
3M
|
3.5M
|
4M
|
|
Max leaf Weight
|
400KGS
|
400KGS
|
500KGS
|
500KGS
|
|
Open Speed
|
1.6CM/S
|
1.6CM/S
|
1.6CM/S
|
1.6CM/S
|
|
Thrust
|
1400N
|
1400N
|
2800N
|
2800N
|
|
Stroke
|
400MM
|
600MM
|
400MM
|
600MM
|
|
Working Temp.
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
|
Duty
|
95%
|
95%
|
40%
|
40%
|
|
Protection Class
|
IP45
|
IP45
|
IP45
|
IP45
|
|
Capacitor
|
---
|
---
|
8uf
|
25uf
|
|
Open Angle
|
0~120
|
0~120
|
0~120
|
0~120
|
|
Limit Switch
|
Stopper
|
Stopper
|
Stopper
|
Stopper
|
