220V 135mm made in china alibaba Hot Selling moteur electrique

220V 135mm made in china alibaba Hot Selling moteur electrique

FOB Reference Price: Get Latest Price

≥1 Pieces

US $83.38

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 135YYJ6D4-18a-moteur electrique

Frequency:: 50Hz

moteur electrique:: 220V 135mm made in china alibaba Hot Selling moteur electrique

Reduction ratio:: 52.2:1

Input current:: 0.90A

Input power:: 180W

Output power:: 40W

Speed:: 18RPM

Output torque:: 24N.m

Insulation class:: B

Capacitor:: 8.0uF/500V

N.W.:: 7.8kg

Quick Details

AC Voltage:: 220V

Place of Origin:: Jiangsu, China

Brand Name:: SOK MOTOR- moteur electrique

Model Number:: 135YYJ6D4-18a-moteur electrique

Frequency:: 50Hz

moteur electrique:: 220V 135mm made in china alibaba Hot Selling moteur electrique

Reduction ratio:: 52.2:1

Input current:: 0.90A

Input power:: 180W

Output power:: 40W

Speed:: 18RPM

Output torque:: 24N.m

Insulation class:: B

Capacitor:: 8.0uF/500V

N.W.:: 7.8kg

Product Description

D escription of moteur electrique

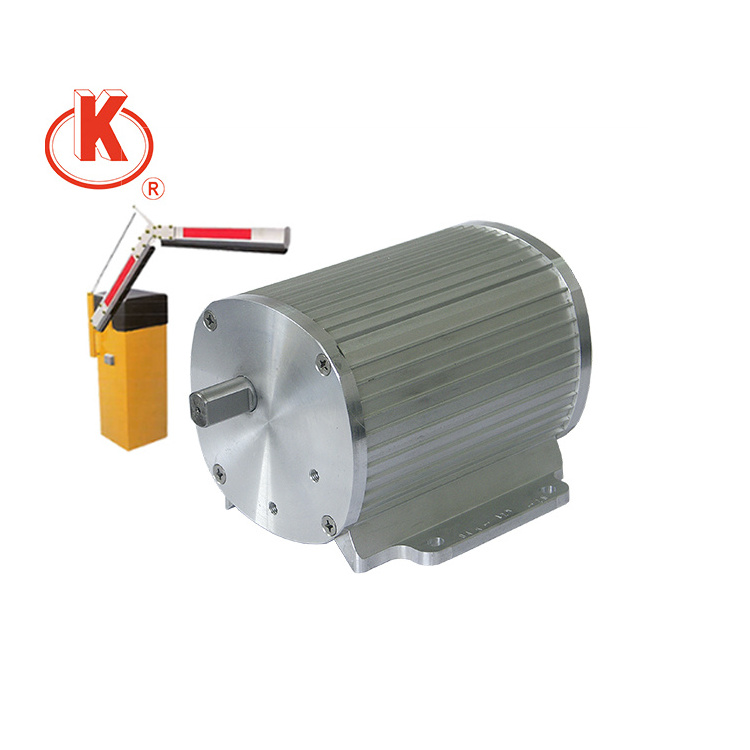

The Asynchronous gearmotor consists of a single phase capacitor-run motor which high quality aluminum-alloy extruded housing,and well-designed gear box. This kind of motor has the following features: high starting torque, low vibrations&noise, it can start, stop, reverse continually and stall for long time. It can also run under expansive fluctuation of working voltage.

Typical application of moteur electrique

The Asynchronous gearmotors are mainly used as driving devices for barrier gate in toll gate, hospitals, hotels, parks, resident area, troop and mining enterprises.

Ambient condition

Ambient condition of moteur electrique

1.Temperature:-25 ℃ ~ +40 ℃ ;

2.Relative humidity:90%~ 95%;

3.Atmospheric pressure :74.8KPa(2500m);

4.Vibration:10~55Hz,double amplitude 1.5mm;

5.Impact: 150m/s ²

Specifications

Electric motor parameter of moteur electrique

Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, shaft extension, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing
