Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
ezcad/seacad
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NCSK
-
Marking Head Brand:
-
HINA
-
Weight (KG):
-
25 KG
-
Core Components:
-
laser source
-
Configuration:
-
Split type
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support
-
Extended I/O:
-
Support
-
Marking Depth:
-
0.01-1mm
-
Maximum speed:
-
7000mm/s
-
Laser wavelength:
-
1064nm
-
Frequency Range:
-
20-80 kHz
-
Minimum character:
-
0.3mm²
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
IPG Raycus Max JPT
Quick Details
-
Working Accuracy:
-
0.01
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
ezcad/seacad
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NCSK
-
Marking Head Brand:
-
HINA
-
Weight (KG):
-
25 KG
-
Core Components:
-
laser source
-
Configuration:
-
Split type
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support
-
Extended I/O:
-
Support
-
Marking Depth:
-
0.01-1mm
-
Maximum speed:
-
7000mm/s
-
Laser wavelength:
-
1064nm
-
Frequency Range:
-
20-80 kHz
-
Minimum character:
-
0.3mm²
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
IPG Raycus Max JPT
Product Information
For marking jewelry like rings, a special rotary fixture is needed. Laser marking system will control the rotation of the fixture.
After marking part of the design, the rotary fixture turn an angle, and marking the next part.
After marking part of the design, the rotary fixture turn an angle, and marking the next part.

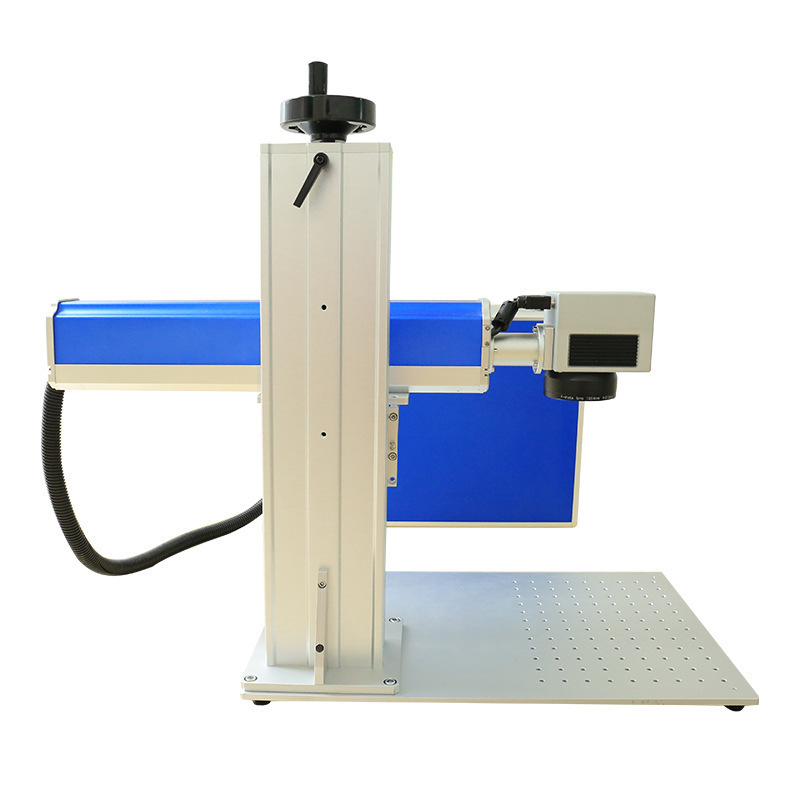

Split laser marking machine is small and portable. Easy to install to production line or other office area.
It can be connected to an existing computer or equipped with a touch screen marking system.
|
Type
|
NC-P-20W
|
NC-P-30W
|
|
|
Input voltage
|
220V/50-60Hz/5A (110V/50-60Hz/8A to be customized)
|
|
|
|
Power consumed
|
≤500W
|
≤550W
|
|
|
Laser power
|
20W
|
30W
|
|
|
Adjustable power range
|
5-100%
|
|
|
|
Laser wave length
|
1064nm
|
|
|
|
Modulation frequency
|
20-80kHz
|
|
|
|
Max. speed
|
≤7000mm/s
|
|
|
|
Min. line width
|
0.02mm (On metal)
|
|
|
|
Min. character size
|
0.2mm*0.2mm
|
|
|
|
Repeat accuracy
|
±0.01mm
|
|
|
|
Marking depth
|
0.01mm-0.3mm
|
|
|
|
Marking area
|
100mm*100mm ("150mm*150mm"and "200mm*200mm" Optical)
|
|
|
|
Cooling system
|
Air cooling
|
|
|
|
Life of laser module
|
100000 hours
|
|
|
